DPP

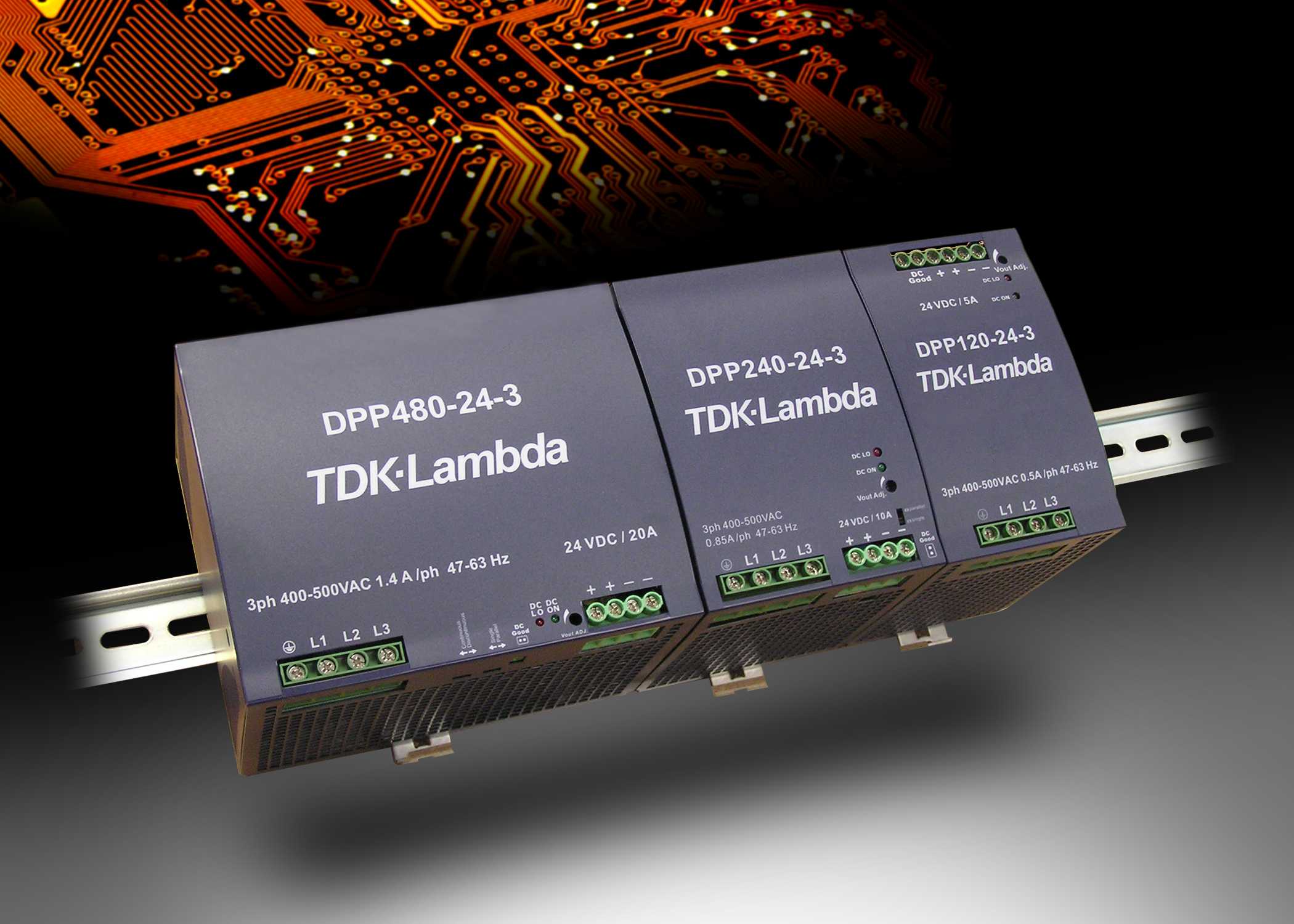

15-960W DINRail mount power supplyLes alimentations AC-DC sur rail DIN de la série DPP fournissent une large gamme de niveaux de puissance allant de 15 à 960 W. De plus, elles proposent des entrées monophasées et triphasées au choix. Ces modèles sont conformes aux normes IEC/EN/UL 62368-1 et UL 508 et certains répondent également aux exigences de la norme UL 1310 (evaluées par rapport à NEC NFPA70 classe 2). Les tensions de sortie s'étalent de 5 V à 48 V.
Caractéristiques
- Low Cost
- 5V to 48V Outputs
- Universal Input
- Compact Size
- NEC Class 2 Compliant models
- UL508 Listed
- Convection Cooled
Downloads
Datasheets & Manuels d’installation
Images & Représentations 3D
- Product Image
- DPP15 - 3D Drawing (Step file)
- DPP30-50 - 3D Drawing (Step file)
- DPP100 - 3D Drawing (Step file)
- DPP120-1 - 3D Drawing (Step file)
- DPP120-3 - 3D Drawing (Step file)
- DPP240-1 - 3D Drawing (Step file)
- DPP240-3 - 3D Drawing (Step file)
- DPP480-1 - 3D Drawing (Step file)
- DPP480-3 - 3D Drawing (Step file)
- DPP960-3 - 3D Drawing (Step file)
Useful links
Product Range Information
| Part number | Power (W) | Outputs | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| DPP25-5 | 25 |
5V / 5A |
Enclosed |  |
|
| DPP30-12 | 30 |
12V / 2.5A |
Enclosed | |
|
| DPP120-12-1 | 120 |
12V / 10A |
Enclosed | |
|
| DPP120-12-3 | 120 |
12V / 10A |
Enclosed |  |
|
| DPP50-15 | 51 |
15V / 3.4A |
Enclosed | |
|
| DPP15-24 | 15.12 |
24V / 0.63A |
Enclosed | |
|
| DPP30-24 | 31.2 |
24V / 1.3A |
Enclosed | |
|
| DPP50-24 | 50.4 |
24V / 2.1A |
Enclosed | |
|
| DPP100-24 | 100.8 |
24V / 4.2A |
Enclosed | |
|
| DPP120-24-1 | 120 |
24V / 5A |
Enclosed | |
|
| DPP120-24-3 | 120 |
24V / 5A |
Enclosed | |
|
| DPP240-24-1 | 240 |
24V / 10A |
Enclosed | |
|
| DPP240-24-3 | 240 |
24V / 10A |
Enclosed | |
|
| DPP480-24-1 | 480 |
24V / 20A |
Enclosed | |
|
| DPP480-24-3 | 480 |
24V / 20A |
Enclosed | |
|
| DPP960-24-3 | 960 |
24V / 40A |
Enclosed | |
|
| DPP50-48 | 50.4 |
48V / 1.05A |
Enclosed | |
|
| DPP120-48-1 | 120 |
48V / 2.5A |
Enclosed | |
|
| DPP240-48-1 | 240 |
48V / 5A |
Enclosed | |
|
| DPP240-48-3 | 240 |
48V / 5A |
Enclosed | |
|
| DPP480-48-1 | 480 |
48V / 10A |
Enclosed | |
|
| DPP480-48-3 | 480 |
48V / 10A |
Enclosed | |
|
| DPP960-48-3 | 960 |
48V / 20A |
Enclosed | |
|
Légende :
Produit courantNon recommandé pour les nouveaux designs
