Convertitori DC-DC

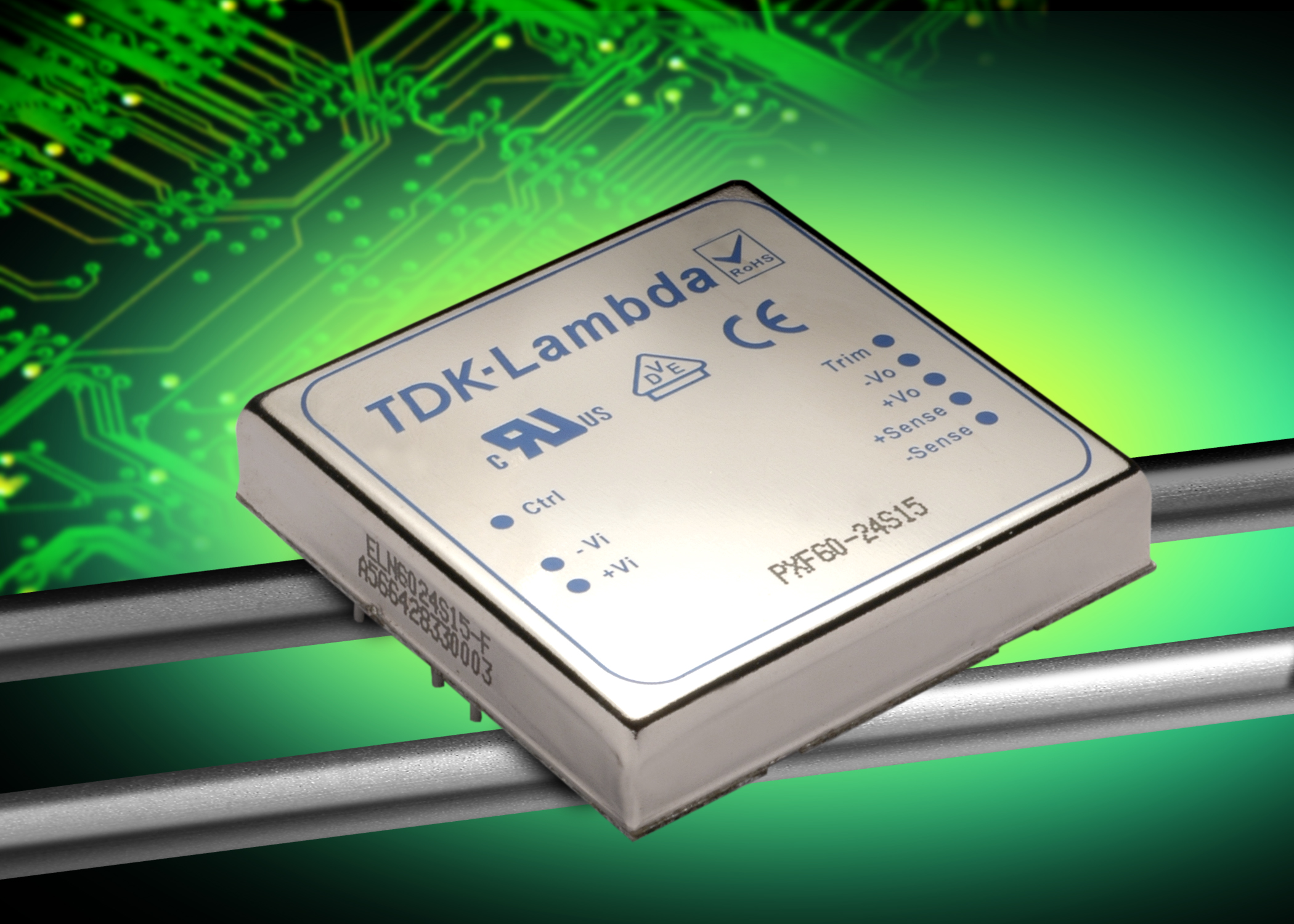

PXF
40W&60W DC-DC convertersAlloggiati in un in un box metallico con schermatura su 6 lati, questi convertitori da 40 a 60W formato 2"x2" coprono le tensioni di ingresso nominali più comuni di 12V, 24V o 48V con versioni sia 2:1 che 4:1. Sono disponibili modelli a singola (da 3.3V a 15V), doppia (5V, 12V o 15V) o tripla uscita (da 3.3V a 15V), con una scelta di on/off remoto positivo o negativo ed un trim di regolazione opzionale (nei modelli a singola/doppia uscita).
Caratteristiche
- Industry Standard 2” x 2” Footprint
- Six Sided Shielding
- Agency Approved
- 12, 24 and 48V Inputs
- 4:1 Wide Range Input Models
Downloads
Datasheets & Manuali
Immagini & Disegni 3D
Link utili
Product Range Information
| Part number | Power | Outputs | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| PXF40-12S3P3 | 24W |
3V / 8A |
Enclosed pcb mount |  |
|
| PXF40-24S3P3 | 24W |
3V / 8A |
Enclosed pcb mount | |
|
| PXF40-48S3P3 | 24W |
3V / 8A |
Enclosed pcb mount | |
|
| PXF40-12T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-48T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24WS3P3 | 33W |
3.3V / 10A |
Enclosed pcb mount | |
|
| PXF40-48WS3P3 | 33W |
3.3V / 10A |
Enclosed pcb mount | |
|
| PXF60-24S3P3 | 60W |
3.3V / 14A |
Enclosed pcb mount | |
|
| PXF60-48S3P3 | 60W |
3.3V / 14A |
Enclosed pcb mount | |
|
| PXF40-12T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-48T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-12S05 | 40W |
5V / 8A |
Enclosed pcb mount | |
|
| PXF40-24S05 | 40W |
5V / 8A |
Enclosed pcb mount | |
|
| PXF40-24WS05 | 40W |
5V / 8A |
Enclosed pcb mount | |
|
| PXF40-48S05 | 40W |
5V / 8A |
Enclosed pcb mount | |
|
| PXF40-48WS05 | 40W |
5V / 8A |
Enclosed pcb mount | |
|
| PXF60-24S05 | 60W |
5V / 12A |
Enclosed pcb mount | |
|
| PXF60-48S05 | 60W |
5V / 12A |
Enclosed pcb mount | |
|
| PXF40-12T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-48T3312 | 29.4W |
3.3V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-12T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-48T0512 | 40W |
5V / 6A 12V / 0.4A 12V / 0.4A |
Enclosed pcb mount | |
|
| PXF40-24WD12 | 40W |
12V / 1.667A 12V / 1.667A |
Enclosed pcb mount | |
|
| PXF40-48WD12 | 40W |
12V / 1.667A 12V / 1.667A |
Enclosed pcb mount | |
|
| PXF40-12D12 | 40W |
12V / 1.8A 12V / 1.8A |
Enclosed pcb mount | |
|
| PXF40-24D12 | 40W |
12V / 1.8A 12V / 1.8A |
Enclosed pcb mount | |
|
| PXF40-48D12 | 40W |
12V / 1.8A 12V / 1.8A |
Enclosed pcb mount | |
|
| PXF40-24WS12 | 40W |
12V / 3.3A |
Enclosed pcb mount | |
|
| PXF40-24S12 | 39.96W |
12V / 3.33A |
Enclosed pcb mount | |
|
| PXF40-12S12 | 39.996W |
12V / 3.333A |
Enclosed pcb mount | |
|
| PXF40-48S12 | 39.996W |
12V / 3.333A |
Enclosed pcb mount | |
|
| PXF40-48WS12 | 39.996W |
12V / 3.333A |
Enclosed pcb mount | |
|
| PXF60-24S12 | 60W |
12V / 5A |
Enclosed pcb mount | |
|
| PXF60-48S12 | 60W |
12V / 5A |
Enclosed pcb mount | |
|
| PXF40-24WD15 | 40W |
15V / 1.333A 15V / 1.333A |
Enclosed pcb mount | |
|
| PXF40-48WD15 | 40W |
15V / 1.333A 15V / 1.333A |
Enclosed pcb mount | |
|
| PXF40-12D15 | 40W |
15V / 1.4A 15V / 1.4A |
Enclosed pcb mount | |
|
| PXF40-24D15 | 40W |
15V / 1.4A 15V / 1.4A |
Enclosed pcb mount | |
|
| PXF40-48D15 | 40W |
15V / 1.4A 15V / 1.4A |
Enclosed pcb mount | |
|
| PXF40-48WS15 | 39.9W |
15V / 2.66A |
Enclosed pcb mount | |
|
| PXF40-12S15 | 39.99W |
15V / 2.666A |
Enclosed pcb mount | |
|
| PXF40-24S15 | 39.99W |
15V / 2.666A |
Enclosed pcb mount | |
|
| PXF40-24WS15 | 39.99W |
15V / 2.666A |
Enclosed pcb mount | |
|
| PXF40-48S15 | 39.99W |
15V / 2.666A |
Enclosed pcb mount | |
|
| PXF60-24S15 | 60W |
15V / 4A |
Enclosed pcb mount | |
|
| PXF60-48S15 | 60W |
15V / 4A |
Enclosed pcb mount | |
|
Key :
Prodotto attuale
