Convertitori DC-DC

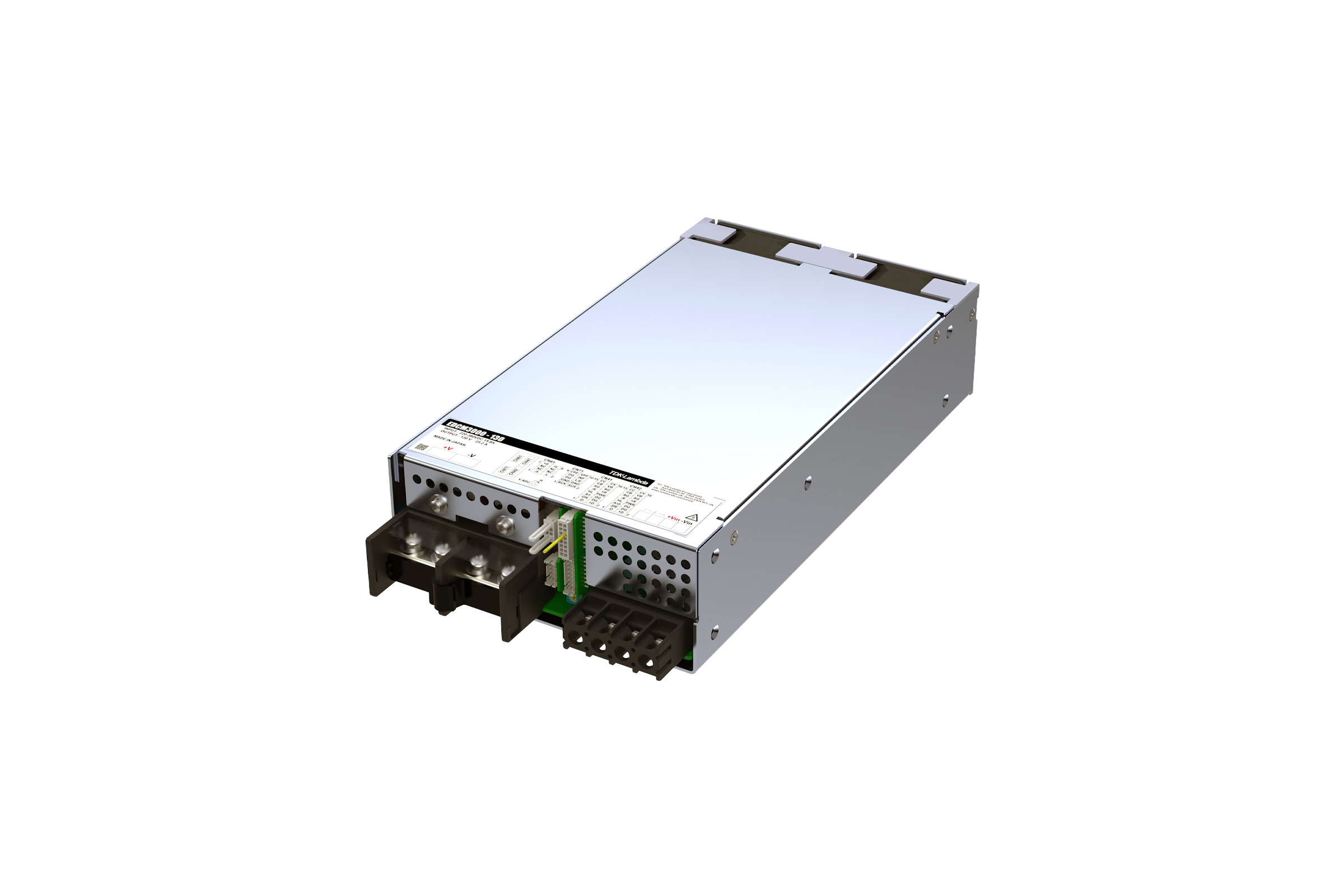

The EDC series of compact DC-DC power supplies delivers up to 1,500W or 3,000W, with flexible input voltage ranges of 70–220VDC or 160–420VDC, and output options of 60V or 130V.

Designed for precision and versatility, both output voltage and current are fully programmable (CV/CC) from zero to their maximum rating. Control is achieved via an RS485 serial interface using the MODBUS protocol, or through analog signals such as 1–5V or 4–20mA.

For scalable system integration, up to three units can be connected in series and up to ten units in parallel, allowing the EDC to adapt to a wide range of power requirements. The unit is housed in a compact 270 × 150 × 61 mm (10.6 × 5.9 × 2.4 in) enclosure and is engineered for long-term reliability, with conservatively rated electrolytic capacitor temperatures to support extended field life.

All units are backed by a 7-year warranty, providing confidence in performance for demanding applications.
