Convertitori DC-DC

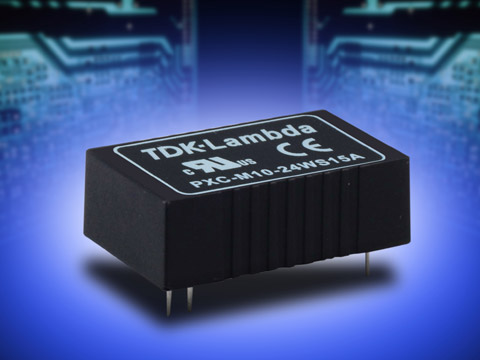

PXC-M
3W, 6W & 10W Medical Isolated DC-DC ConvertersCon certificazione medicale agli standard IEC 60601-1, il PXC-M è alloggiato nel formato industriale standard DIP-24. Caratterizzato da una tensione di isolamento ingresso/uscita di 5000Vac e con ingresso da 9 a 36Vdc o da 18 a 75Vdc, la serie PXC-M è disponibile con tensioni di uscita di 3.3, 5, 12, 15, 24, +/- 5, +/- 12 e +/- 15Vdc. Gli ingressi nominali da 12V a 24V, o da 24V a 48V riducono i costi e migliorano la disponibilità degli alimentatori a magazzino.
Caratteristiche
- 60601-1 approval
- I/O isolation 5kVAC, 2MOPP
- 0.25μA low patient leakage
- 4:1 Wide input range
Downloads
Product Range Information
Per richiedere un campione o un preventivo spuntare la casella accanto al modello a cui si è interessati.
Modelli selezionati: 0 Richiedi preventivo/campionatura
| Part number | Power | Outputs | Construction | Status | Stock Level | View PDF datasheet | Richiedi preventivo/campionatura |
|---|---|---|---|---|---|---|---|
| PXC-M03-24WS3P3 | 3.3W |
3.3Vdc / 1Adc |
Enclosed pcb mount |  |
Chiedere informazioni |
|
|
| PXC-M03-48WS3P3 | 3.3W |
3.3Vdc / 1Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M06-24WS3P3 | 5.9W |
3.3Vdc / 1.8Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-24WS3P3 | 8.3W |
3.3Vdc / 2.5Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-48WS3P3 | 8.3W |
3.3Vdc / 2.5Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-24WD05 | 10W |
5Vdc / 1Adc -5Vdc / -1000mAdc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-48WD05 | 10W |
5Vdc / 1Adc -5Vdc / -1000mAdc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M03-24WD05 | 3W |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M03-48WD05 | 3W |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M06-24WD05 | 6W |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M06-48WD05 | 6W |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M03-24WS05 | 3W |
5Vdc / 0.6Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-48WS05 | 3W |
5Vdc / 0.6Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WS05 | 6W |
5Vdc / 1.2Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-48WS05 | 6W |
5Vdc / 1.2Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-24WS05 | 10W |
5Vdc / 2Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-48WS05 | 10W |
5Vdc / 2Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-24WD12 | 10W |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-48WD12 | 10W |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WD12 | 6W |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-48WD12 | 6W |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-48WD12 | 3W |
12Vdc / -125mAdc -12Vdc / 0.125Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-24WD12 | 3W |
12Vdc / 0.125Adc -12Vdc / 0.125Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-24WS12 | 3W |
12Vdc / 0.25Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-48WS12 | 3W |
12Vdc / 0.25Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WS12 | 6W |
12Vdc / 0.5Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-48WS12 | 6W |
12Vdc / 0.5Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-24WS12 | 10W |
12Vdc / 0.83Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-48WS12 | 10W |
12Vdc / 0.83Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-48WD15 | 10W |
15Vdc / 0.333Adc -15Vdc / -333mAdc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M10-24WD15 | 10W |
15Vdc / 0.33Adc -15Vdc / -330mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WD15 | 6W |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-48WD15 | 6W |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-24WD15 | 3W |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-48WD15 | 3W |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-24WS15 | 3W |
15Vdc / 0.2Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M03-48WS15 | 3W |
15Vdc / 0.2Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WS15 | 6W |
15Vdc / 0.4Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M06-48WS15 | 6W |
15Vdc / 0.4Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-24WS15 | 10.1W |
15Vdc / 0.67Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-48WS15 | 10.1W |
15Vdc / 0.67Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M03-24WS24 | 3W |
24Vdc / 0.125Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
|
| PXC-M03-48WS24 | 3W |
24Vdc / 0.125Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-24WS24 | 6W |
24Vdc / 0.25Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M06-48WS24 | 6W |
24Vdc / 0.25Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-24WS24 | 10W |
24Vdc / 0.416Adc |
Enclosed pcb mount | |
Controlla le scorte |
|
|
| PXC-M10-48WS24 | 10W |
24Vdc / 0.416Adc |
Enclosed pcb mount | |
Chiedere informazioni |
|
| Part number | |
|---|---|
| PXC-M03-24WS3P3 | |
| Power | 3.3W |
| Outputs |
3.3Vdc / 1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WS3P3 | |
| Power | 3.3W |
| Outputs |
3.3Vdc / 1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WS3P3 | |
| Power | 5.9W |
| Outputs |
3.3Vdc / 1.8Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WS3P3 | |
| Power | 8.3W |
| Outputs |
3.3Vdc / 2.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WS3P3 | |
| Power | 8.3W |
| Outputs |
3.3Vdc / 2.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WD05 | |
| Power | 10W |
| Outputs |
5Vdc / 1Adc -5Vdc / -1000mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WD05 | |
| Power | 10W |
| Outputs |
5Vdc / 1Adc -5Vdc / -1000mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WD05 | |
| Power | 3W |
| Outputs |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WD05 | |
| Power | 3W |
| Outputs |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WD05 | |
| Power | 6W |
| Outputs |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WD05 | |
| Power | 6W |
| Outputs |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WS05 | |
| Power | 3W |
| Outputs |
5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WS05 | |
| Power | 3W |
| Outputs |
5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WS05 | |
| Power | 6W |
| Outputs |
5Vdc / 1.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WS05 | |
| Power | 6W |
| Outputs |
5Vdc / 1.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WS05 | |
| Power | 10W |
| Outputs |
5Vdc / 2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WS05 | |
| Power | 10W |
| Outputs |
5Vdc / 2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WD12 | |
| Power | 10W |
| Outputs |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WD12 | |
| Power | 10W |
| Outputs |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WD12 | |
| Power | 6W |
| Outputs |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WD12 | |
| Power | 6W |
| Outputs |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WD12 | |
| Power | 3W |
| Outputs |
12Vdc / -125mAdc -12Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WD12 | |
| Power | 3W |
| Outputs |
12Vdc / 0.125Adc -12Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WS12 | |
| Power | 3W |
| Outputs |
12Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WS12 | |
| Power | 3W |
| Outputs |
12Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WS12 | |
| Power | 6W |
| Outputs |
12Vdc / 0.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WS12 | |
| Power | 6W |
| Outputs |
12Vdc / 0.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WS12 | |
| Power | 10W |
| Outputs |
12Vdc / 0.83Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WS12 | |
| Power | 10W |
| Outputs |
12Vdc / 0.83Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WD15 | |
| Power | 10W |
| Outputs |
15Vdc / 0.333Adc -15Vdc / -333mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WD15 | |
| Power | 10W |
| Outputs |
15Vdc / 0.33Adc -15Vdc / -330mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WD15 | |
| Power | 6W |
| Outputs |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WD15 | |
| Power | 6W |
| Outputs |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WD15 | |
| Power | 3W |
| Outputs |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WD15 | |
| Power | 3W |
| Outputs |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WS15 | |
| Power | 3W |
| Outputs |
15Vdc / 0.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WS15 | |
| Power | 3W |
| Outputs |
15Vdc / 0.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WS15 | |
| Power | 6W |
| Outputs |
15Vdc / 0.4Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WS15 | |
| Power | 6W |
| Outputs |
15Vdc / 0.4Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WS15 | |
| Power | 10.1W |
| Outputs |
15Vdc / 0.67Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WS15 | |
| Power | 10.1W |
| Outputs |
15Vdc / 0.67Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-24WS24 | |
| Power | 3W |
| Outputs |
24Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M03-48WS24 | |
| Power | 3W |
| Outputs |
24Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-24WS24 | |
| Power | 6W |
| Outputs |
24Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M06-48WS24 | |
| Power | 6W |
| Outputs |
24Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-24WS24 | |
| Power | 10W |
| Outputs |
24Vdc / 0.416Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Controlla le scorte |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
| PXC-M10-48WS24 | |
| Power | 10W |
| Outputs |
24Vdc / 0.416Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Chiedere informazioni |
| View PDF datasheet |
|
| Richiedi preventivo/campionatura | |
Key :
Prodotto attuale
Per richiedere un campione o un preventivo spuntare la casella accanto al modello a cui si è interessati.
Modelli selezionati: 0 Richiedi preventivo/campionatura
Quick Product Finder
Prova il nostro Quick Product Finder
Scegli il tipo di alimentatore per iniziare:PXC-M videos
I nostri video sono gestiti da Vimeo. Visualizzando questo contenuto accetti i Termini e l'Informativa sulla privacy pubblicati sul sito Web Vimeo.
PXC-M Scarica schede tecniche
Datasheets
Manuali
Immagini & Disegni 3D
Altre risorse
Link utili
PXC-M Nella sala stampa di TDK-Lambda
Convertitori DC-DC con certificazione medicale bassa potenza e ingresso 4:1
Leggi l’articolo
