Convertitori DC-DC
CN-A
30W-200W Half & Quarter Brick DC-DC converters
Disponibile con ingresso sia di 60 - 160Vdc che di 14.4 - 36Vdc, il CN-A soddisfa i severi requisiti di shock e vibrazione della norma IEC61373, nonché dell'equivalente giapponese JIS E 4031. Un'opzione di coating permette a questi prodotti di soddisfare la EN50155. Il funzionamento a piena potenza su tutti i convertitori è garantito attraverso una temperatura di baseplate da -40 a +100°C. Tutti i modelli, ad eccezione dell'half brick 200W, hanno un formato quarter brick e sono in grado di sopportare una tensione di isolamento di 3kVac.
Caratteristiche
- 60-160Vdc and 14.4 - 36Vdc Input Ranges
- IEC 61373 Shock and Vibration
- Base plate Cooled
- Full Power at 100°C base plate
- Five Year Warranty
Product Range Information
| Part number | Power (W) | Outputs | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| CN30A110-5 | 30 |
5V / 6A |
Quarter Brick |  |
|
| CN50A110-5 | 50 |
5V / 10A |
Quarter Brick | |
|
| CN50A24-5 | 50 |
5V / 10A |
Quarter Brick | |
|
| CN100A110-5 | 100 |
5V / 20A |
Quarter Brick | |
|
| CN100A24-5 | 100 |
5V / 20A |
Quarter Brick | |
|
| CN200A110-5 | 200 |
5V / 40A |
Half Brick | |
|
| CN30A110-12 | 30 |
12V / 2.5A |
Quarter Brick | |
|
| CN50A110-12 | 50.4 |
12V / 4.2A |
Quarter Brick | |
|
| CN50A24-12 | 50.4 |
12V / 4.2A |
Quarter Brick | |
|
| CN100A110-12 | 100.8 |
12V / 8.4A |
Quarter Brick | |
|
| CN100A24-12 | 100.8 |
12V / 8.4A |
Quarter Brick | |
|
| CN200A110-12 | 200 |
12V / 16.7A |
Half Brick | |
|
| CN30A110-15 | 30 |
15V / 2A |
Quarter Brick | |
|
| CN50A110-15 | 51 |
15V / 3.4A |
Quarter Brick | |
|
| CN100A110-15 | 100.5 |
15V / 6.7A |
Quarter Brick | |
|
| CN200A110-15 | 200 |
15V / 13.4A |
Half Brick | |
|
| CN30A110-24 | 31.2 |
24V / 1.3A |
Quarter Brick | |
|
| CN50A110-24 | 50.4 |
24V / 2.1A |
Quarter Brick | |
|

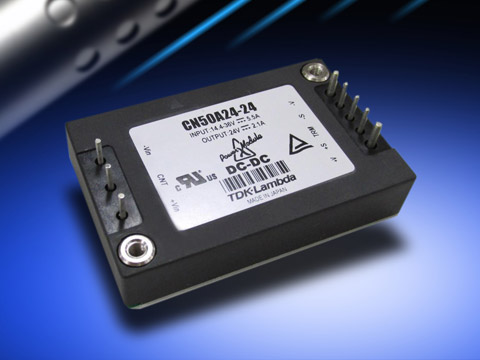

| CN50A24-24 | 50.4 |
24V / 2.1A |
Quarter Brick | |
|
| CN100A110-24 | 100.8 |
24V / 4.2A |
Quarter Brick | |
|
| CN100A24-24 | 100.8 |
24V / 4.2A |
Quarter Brick | |
|
| CN200A110-24 | 200 |
24V / 8.4A |
Half Brick | |
|
Technical Downloads
- CN-A Installation Manual
Scarica PDF - CN-A Datasheet
Scarica PDF - CN-A 24VDC Datasheet
Scarica PDF - CN-A China RoHS
Scarica PDF - Specification, Drawings, Technical Files
View URL - 3D Drawings
View URL
