DC-DC Omzetters

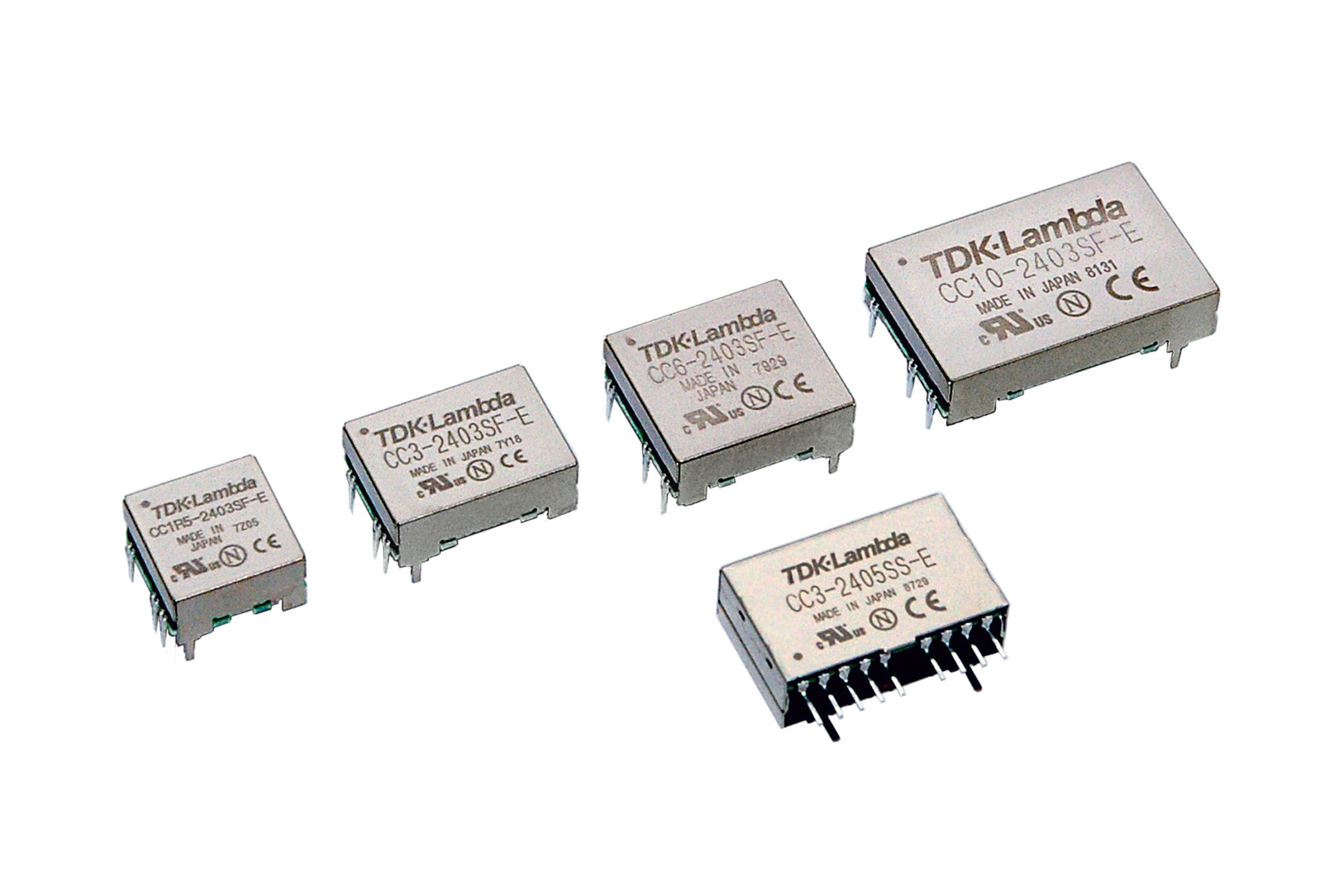

CC-E

1.5W-10W Single & Dual DC-DC converters

Met 68 verschillende combinaties van ingangsspanning, uitgangsspanning en uitgangsvermogen biedt de CC-E serie een grote keuze aan beproefde producten voor uiteenlopende toepassingen. De lichtgewicht omzetters met vijf jaar garantie hebben een metalen behuizing om de uitgestraalde EMI te verminderen. Ze zijn verkrijgbaar in ‘through hole’ (met aanluitdraden) of ‘surface mount’ (oppervlakte gemonteerd) uitvoering.

Eigenschappen

Compact Footprint/Low Profile
Through Hole or SMT Versions
5V, 12V, 24V & 48V Inputs
3.3 to 30V Single, +/- 12 to 15V Dual O/P's
Output Voltage Adjustment
Input-Output Isolation
RoHS Compliant
5 Year Warranty

Downloads

Datasheets & Handleidingen

Afbeeldingen & 3D-tekeningen

Handige Links

Andere bronnen

CC-E China RoHS

Informatie over productaanbod

Hide details

Show details

Onderdeelnumme	Vermogen	Output-info	Constructie
CC1R5-0503SF-E	1.32W	3.3V / 0.4A	Enclosed pcb mount
CC1R5-1203SF-E	1.32W	3.3V / 0.4A	Enclosed pcb mount
CC1R5-2403SF-E	1.32W	3.3V / 0.4A	Enclosed pcb mount
CC1R5-4803SF-E	1.32W	3.3V / 0.4A	Enclosed pcb mount
CC3-0503SF-E	2.64W	3.3V / 0.8A	Enclosed pcb mount
CC3-1203SF-E	2.64W	3.3V / 0.8A	Enclosed pcb mount
CC3-2403SF-E	2.64W	3.3V / 0.8A	Enclosed pcb mount
CC3-4803SF-E	2.64W	3.3V / 0.8A	Enclosed pcb mount
CC6-0503SF-E	3.96W	3.3V / 1.2A	Enclosed pcb mount
CC6-1203SF-E	3.96W	3.3V / 1.2A	Enclosed pcb mount
CC6-2403SF-E	3.96W	3.3V / 1.2A	Enclosed pcb mount
CC6-4803SF-E	3.96W	3.3V / 1.2A	Enclosed pcb mount
CC10-0503SF-E	8.25W	3.3V / 2.5A	Enclosed pcb mount
CC10-1203SF-E	8.25W	3.3V / 2.5A	Enclosed pcb mount
CC10-2403SF-E	8.25W	3.3V / 2.5A	Enclosed pcb mount
CC10-4803SF-E	8.25W	3.3V / 2.5A	Enclosed pcb mount
CC15-2403SF-E	14.85W	3.3V / 4.5A	Enclosed pcb mount
CC25-2403SF-E	24.75W	3.3V / 7.5A	Enclosed pcb mount
CC1R5-0505SF-E	1.5W	5V / 0.3A	Enclosed pcb mount
CC1R5-1205SF-E	1.5W	5V / 0.3A	Enclosed pcb mount
CC1R5-2405SF-E	1.5W	5V / 0.3A	Enclosed pcb mount
CC1R5-4805SF-E	1.5W	5V / 0.3A	Enclosed pcb mount
CC3-0505SF-E	3W	5V / 0.6A	Enclosed pcb mount
CC3-1205SF-E	3W	5V / 0.6A	Enclosed pcb mount
CC3-2405SF-E	3W	5V / 0.6A	Enclosed pcb mount
CC3-4805SF-E	3W	5V / 0.6A	Enclosed pcb mount
CC6-0505SF-E	5W	5V / 1A	Enclosed pcb mount
CC6-1205SF-E	6W	5V / 1.2A	Enclosed pcb mount
CC6-2405SF-E	6W	5V / 1.2A	Enclosed pcb mount
CC6-4805SF-E	6W	5V / 1.2A	Enclosed pcb mount
CC10-0505SF-E	10W	5V / 2A	Enclosed pcb mount
CC10-1205SF-E	10W	5V / 2A	Enclosed pcb mount
CC10-2405SF-E	10W	5V / 2A	Enclosed pcb mount
CC10-4805SF-E	10W	5V / 2A	Enclosed pcb mount
CC15-2405SF-E	15W	5V / 3A	Enclosed pcb mount
CC25-2405SF-E	25W	5V / 5A	Enclosed pcb mount
CC1R5-0512DF-E	0.72W	12V / 60mA -12V / 60mA	Enclosed pcb mount
CC1R5-1212DF-E	0.72W	12V / 60mA -12V / 60mA	Enclosed pcb mount
CC1R5-2412DF-E	0.72W	12V / 60mA -12V / 60mA	Enclosed pcb mount
CC1R5-4812DF-E	0.72W	12V / 60mA -12V / 60mA	Enclosed pcb mount
CC3-0512DF-E	1.5W	12V / 0.125A -12V / 0.125A	Enclosed pcb mount
CC3-1212DF-E	1.5W	12V / 0.125A -12V / 0.125A	Enclosed pcb mount
CC3-2412DF-E	1.5W	12V / 0.125A -12V / 0.125A	Enclosed pcb mount
CC3-4812DF-E	1.5W	12V / 0.125A -12V / 0.125A	Enclosed pcb mount
CC6-0512DF-E	3W	12V / 0.25A -12V / 0.25A	Enclosed pcb mount
CC6-1212DF-E	3W	12V / 0.25A -12V / 0.25A	Enclosed pcb mount
CC6-2412DF-E	3W	12V / 0.25A -12V / 0.25A	Enclosed pcb mount
CC6-4812DF-E	3W	12V / 0.25A -12V / 0.25A	Enclosed pcb mount
CC10-0512DF-E	9.6W	12V / 0.4A -12V / 0.4A	Enclosed pcb mount
CC10-1212DF-E	5.4W	12V / 0.45A -12V / 0.45A	Enclosed pcb mount
CC10-2412DF-E	5.4W	12V / 0.45A -12V / 0.45A	Enclosed pcb mount
CC10-4812DF-E	5.4W	12V / 0.45A -12V / 0.45A	Enclosed pcb mount
CC1R5-0512SF-E	1.5W	12V / 0.125A	Enclosed pcb mount
CC1R5-1212SF-E	1.5W	12V / 0.125A	Enclosed pcb mount
CC1R5-2412SF-E	1.5W	12V / 0.125A	Enclosed pcb mount
CC1R5-4812SF-E	1.5W	12V / 0.125A	Enclosed pcb mount
CC3-0512SF-E	3W	12V / 0.25A	Enclosed pcb mount
CC3-1212SF-E	3W	12V / 0.25A	Enclosed pcb mount
CC3-2412SF-E	3W	12V / 0.25A	Enclosed pcb mount
CC3-4812SF-E	3W	12V / 0.25A	Enclosed pcb mount
CC6-0512SF-E	6W	12V / 0.5A	Enclosed pcb mount
CC6-1212SF-E	6W	12V / 0.5A	Enclosed pcb mount
CC6-2412SF-E	6W	12V / 0.5A	Enclosed pcb mount
CC6-4812SF-E	6W	12V / 0.5A	Enclosed pcb mount
CC10-0512SF-E	9.6W	12V / 0.8A	Enclosed pcb mount
CC10-1212SF-E	12W	12V / 1A	Enclosed pcb mount
CC10-2412SF-E	12W	12V / 1A	Enclosed pcb mount
CC10-4812SF-E	12W	12V / 1A	Enclosed pcb mount
CC1R5-0512DF-E	1.2W	15V / 50mA -15V / 50mA	Enclosed pcb mount
CC1R5-1212DF-E	1.2W	15V / 50mA -15V / 50mA	Enclosed pcb mount
CC1R5-2412DF-E	1.2W	15V / 50mA -15V / 50mA	Enclosed pcb mount
CC1R5-4812DF-E	1.2W	15V / 50mA -15V / 50mA	Enclosed pcb mount
CC3-0512DF-E	3W	15V / 0.1A -15V / 0.1A	Enclosed pcb mount
CC3-1212DF-E	3W	15V / 0.1A -15V / 0.1A	Enclosed pcb mount
CC3-2412DF-E	3W	15V / 0.1A -15V / 0.1A	Enclosed pcb mount
CC3-4812DF-E	3W	15V / 0.1A -15V / 0.1A	Enclosed pcb mount
CC6-0512DF-E	6W	15V / 0.2A -15V / 0.2A	Enclosed pcb mount
CC6-1212DF-E	6W	15V / 0.2A -15V / 0.2A	Enclosed pcb mount
CC6-2412DF-E	6W	15V / 0.2A -15V / 0.2A	Enclosed pcb mount
CC6-4812DF-E	6W	15V / 0.2A -15V / 0.2A	Enclosed pcb mount
CC10-0512DF-E	9.6W	15V / 0.32A -15V / 0.32A	Enclosed pcb mount
CC10-1212DF-E	10.8W	15V / 0.36A -15V / 0.36A	Enclosed pcb mount
CC10-2412DF-E	10.8W	15V / 0.36A -15V / 0.36A	Enclosed pcb mount
CC10-4812DF-E	10.8W	15V / 0.36A -15V / 0.36A	Enclosed pcb mount

Toets : Huidig productNiet aanbevolen voor nieuwe ontwerpen
