AC-DC Power Supplies

AC-DC Power Supplies

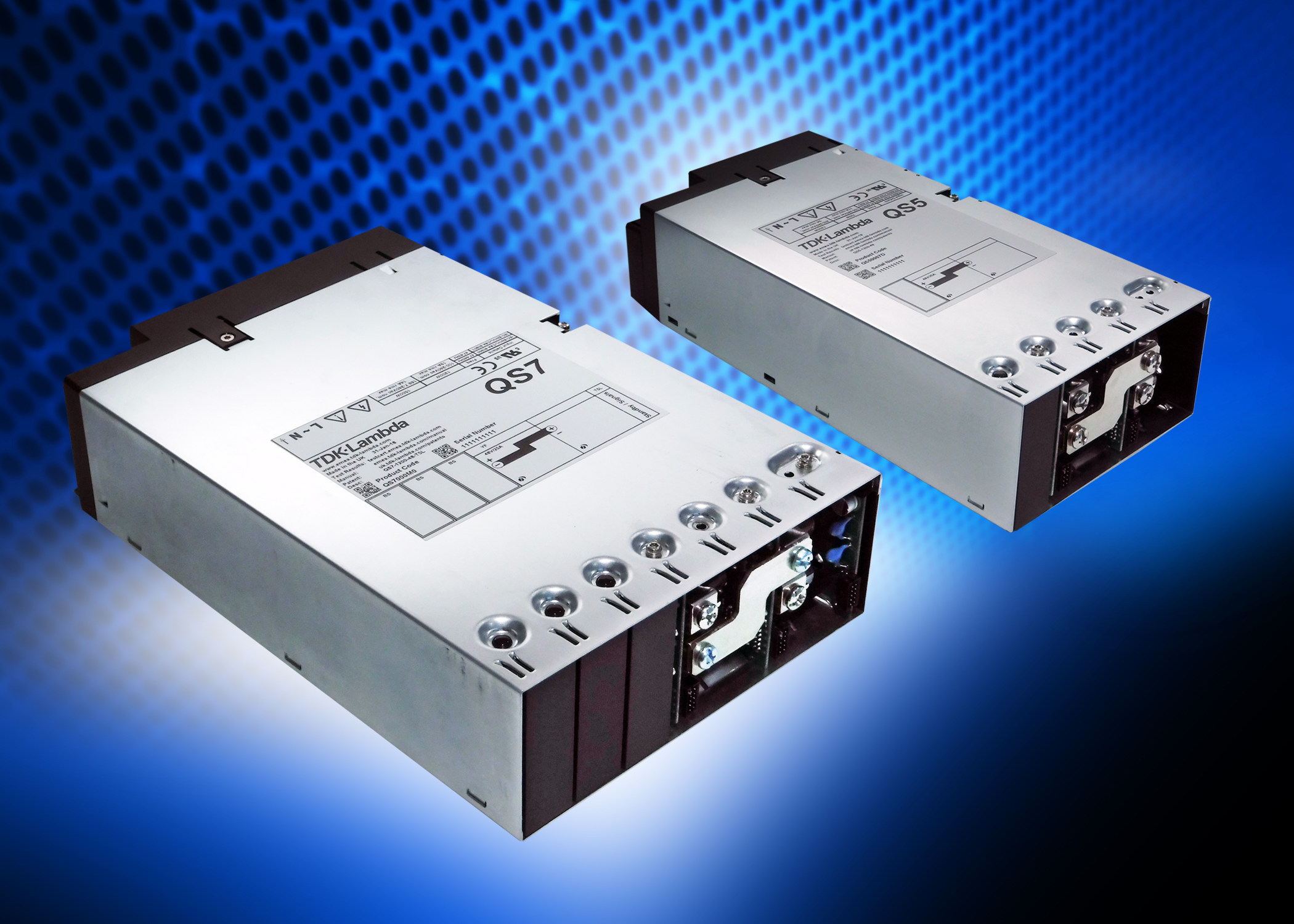

QS

Up to 1200W, Single Output Medical and Industrial Power Supply

The single output QS range of power supplies offers low audible noise (with a temperature controlled fan to reduce audible noise) with a selection of standby and control options including PMBus™. The range is supported by a 7 year warranty and covers output voltage from 12V up to 52.8V.  Suitable for both medical and non-medical applications. The entire range has full medical isolation (1 x MoPP input to ground, 2 x MoPP input to output and 1 x MoPP output to ground) and either dual or single fusing available as options. The QS range operates from a universal AC input of 90 - 264V to meet a wide range of applications, including industrial, medical, test & measurement, broadcast, communications and renewable.

QS

Features

  • BF ready medical isolation (MOPP)
  • Low speed, low audible noise fan
  • Dual or single fusing
  • PMBus™ communication option
  • 7 year warranty

Downloads

Product Range Information

Hide details

Show details

Part number Power Output info Construction Status View PDF datasheet
QS5-600-12 600W 12V / 50A
Enclosed Current product   View PDF datasheet
QS4-600-12 550W (Low line)
600W (High line)
12V / 50A
Enclosed Current product   View PDF datasheet
QS5H-1080-12 700W (Low line)
1.08kW (High line)
12V / 90A
Enclosed Current product
QS7-1080-12 1.08kW 12V / 90A
Enclosed Current product   View PDF datasheet
QS5-600-24 600W 24V / 25A
Enclosed Current product   View PDF datasheet
QS4-600-24 550W (Low line)
600W (High line)
24V / 25A
Enclosed Current product   View PDF datasheet
QS5H-1200-24 700W (Low line)
1.2kW (High line)
24V / 50A
Enclosed Current product
QS7-1200-24 1.2kW 24V / 50A
Enclosed Current product   View PDF datasheet
QS5-600-48 600W 48V / 12.5A
Enclosed Current product   View PDF datasheet
QS4-600-48 550W (Low line)
600W (High line)
48V / 12.5A
Enclosed Current product   View PDF datasheet
QS5H-1200-48 700W (Low line)
1.2kW (High line)
48V / 25A
Enclosed Current product
QS7-1200-48 1.2kW 48V / 25A
Enclosed Current product   View PDF datasheet
Key : Current product

Quick Product Finder

1
Choose number of outputs:
2
Choose power supply type:

QS videos

Range Overview Video

QS 600W to 1200W, Single Output Medical and Industrial Power Supply Video

Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.

QS Technical Downloads

Datasheets

Other resources

Not currently available

Useful links

Not currently available

QS In the TDK-Lambda Newsroom

600 to 1200W power supplies have full MoPPs isolation, low acoustical noise and PMBus™ communication
Read the article
