DC-DC Converters

PXC-M

3W, 6W & 10W Medical Isolated DC-DC Converters

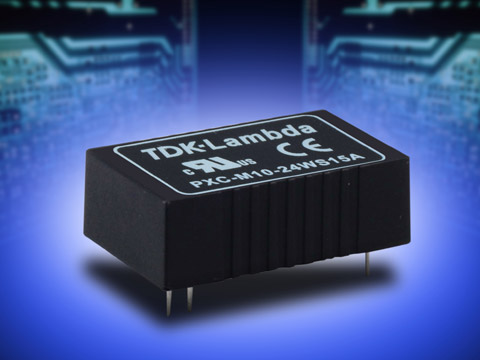

Medically certified to the IEC 60601-1 standards, the PXC-M is housed in the industry standard DIP-24 package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXC-M series is available with output voltages of 3.3, 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability.

Features

60601-1 approval
I/O isolation 5kVAC, 2MOPP
0.25μA low patient leakage
4:1 Wide input range

Downloads

Datasheets & Installation Manuals

PXC-M Datasheet

Images & 3D Drawings

Useful links

Specification, Drawings, Technical Files

Product Range Information

Hide details

Show details

Part number	Power (W)	Output info	Construction	Stock Level
PXC-M10-48WD15	10	15V / 0.333A -15V / -0.333A	Enclosed pcb mount	Check stock
PXC-M10-24WD15	10	15V / 0.33A -15V / -0.33A	Enclosed pcb mount	Check stock
PXC-M06-24WD15	6	15V / 0.2A -15V / -0.2A	Enclosed pcb mount	Check stock
PXC-M06-48WD15	6	15V / 0.2A -15V / -0.2A	Enclosed pcb mount	Check stock
PXC-M03-24WD15	3	15V / 0.1A -15V / 0.1A	Enclosed pcb mount	Check stock
PXC-M03-48WD15	3	15V / 0.1A -15V / 0.1A	Enclosed pcb mount	Check stock
PXC-M10-24WD12	10	12V / 0.416A -12V / -0.416A	Enclosed pcb mount	Check stock
PXC-M10-48WD12	10	12V / 0.416A -12V / -0.416A	Enclosed pcb mount	Check stock
PXC-M06-24WD12	6	12V / 0.25A -12V / -0.25A	Enclosed pcb mount	Check stock
PXC-M06-48WD12	6	12V / 0.25A -12V / -0.25A	Enclosed pcb mount	Check stock
PXC-M03-48WD12	3	12V / -0.125A -12V / 0.125A	Enclosed pcb mount	Check stock
PXC-M03-24WD12	3	12V / 0.125A -12V / 0.125A	Enclosed pcb mount	Check stock
PXC-M10-24WD05	10	5V / 1A -5V / -1A	Enclosed pcb mount	Check stock
PXC-M10-48WD05	10	5V / 1A -5V / -1A	Enclosed pcb mount	Check stock
PXC-M03-24WD05	3	5V / 0.3A -5V / 0.3A	Enclosed pcb mount	Check stock
PXC-M03-48WD05	3	5V / 0.3A -5V / 0.3A	Enclosed pcb mount	Check stock
PXC-M06-24WD05	6	5V / 0.6A -5V / 0.6A	Enclosed pcb mount	Check stock
PXC-M06-48WD05	6	5V / 0.6A -5V / 0.6A	Enclosed pcb mount	Check stock
PXC-M03-24WS3P3	3.3	3.3V / 1A	Enclosed pcb mount	Check stock
PXC-M03-48WS3P3	3.3	3.3V / 1A	Enclosed pcb mount	Check stock
PXC-M06-24WS3P3	5.9	3.3V / 1.8A	Enclosed pcb mount	Check stock
PXC-M10-24WS3P3	8.3	3.3V / 2.5A	Enclosed pcb mount	Check stock
PXC-M10-48WS3P3	8.3	3.3V / 2.5A	Enclosed pcb mount	Check stock
PXC-M03-24WS05	3	5V / 0.6A	Enclosed pcb mount	Check stock
PXC-M03-48WS05	3	5V / 0.6A	Enclosed pcb mount	Check stock
PXC-M06-24WS05	6	5V / 1.2A	Enclosed pcb mount	Check stock
PXC-M06-48WS05	6	5V / 1.2A	Enclosed pcb mount	Check stock
PXC-M10-24WS05	10	5V / 2A	Enclosed pcb mount	Check stock
PXC-M10-48WS05	10	5V / 2A	Enclosed pcb mount	Check stock
PXC-M03-24WS12	3	12V / 0.25A	Enclosed pcb mount	Check stock
PXC-M03-48WS12	3	12V / 0.25A	Enclosed pcb mount	Check stock
PXC-M06-24WS12	6	12V / 0.5A	Enclosed pcb mount	Check stock
PXC-M06-48WS12	6	12V / 0.5A	Enclosed pcb mount	Check stock
PXC-M10-24WS12	10	12V / 0.83A	Enclosed pcb mount	Check stock
PXC-M10-48WS12	10	12V / 0.83A	Enclosed pcb mount	Check stock
PXC-M03-24WS15	3	15V / 0.2A	Enclosed pcb mount	Check stock
PXC-M03-48WS15	3	15V / 0.2A	Enclosed pcb mount	Check stock
PXC-M06-24WS15	6	15V / 0.4A	Enclosed pcb mount	Check stock
PXC-M06-48WS15	6	15V / 0.4A	Enclosed pcb mount	Check stock
PXC-M10-24WS15	10.1	15V / 0.67A	Enclosed pcb mount	Check stock
PXC-M10-48WS15	10.1	15V / 0.67A	Enclosed pcb mount	Check stock
PXC-M03-24WS24	3	24V / 0.125A	Enclosed pcb mount	Check stock
PXC-M03-48WS24	3	24V / 0.125A	Enclosed pcb mount	Check stock
PXC-M06-24WS24	6	24V / 0.25A	Enclosed pcb mount	Check stock
PXC-M06-48WS24	6	24V / 0.25A	Enclosed pcb mount	Check stock
PXC-M10-24WS24	10	24V / 0.416A	Enclosed pcb mount	Check stock
PXC-M10-48WS24	10	24V / 0.416A	Enclosed pcb mount	Check stock
