KPSB

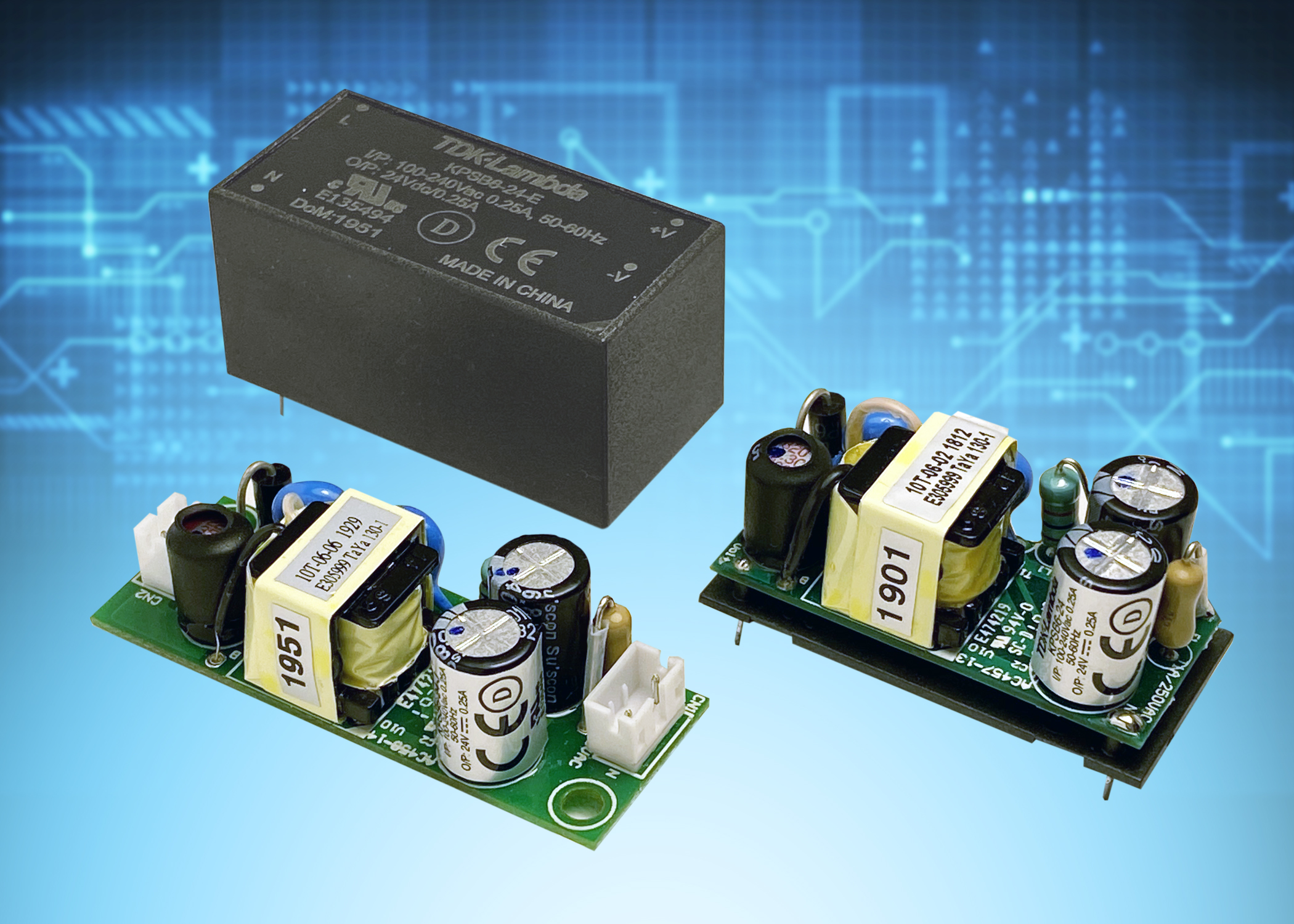

5-25W AC-DC Board Mount Power Supplies

The KPSB single output supplies are available with output power ratings of 6W and 25W and output voltages including 3.3V, 5V, 9V, 12V, 15V, and 24V. They operate with a wide input range of 90-264Vac and in ambient temperatures ranging from -40°C to +80°C. Featuring an open frame or encapsulated construction, these light weight converters are Class II double insulated, allowing operation without an earth ground connection. Optional JST plug in connectors are available.

KPSB

Features

  • High Effi ciency, Up to 87%
  • Class B EMI
  • Low No Load Power Consumption
  • Wide Operating Temperature
  • Class II, Wide Range Input (90-264VAC)

Downloads

Product Range Information

Hide details

Show details

Part number Power Output info Construction Status View PDF datasheet
KPSB6-3R3 5W 3.3V / 1.5A
Open Frame pcb mount Current product   View PDF datasheet
KPSB6-5 6W 5V / 1.2A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-5 20W 5V / 4A
Open Frame pcb mount Current product   View PDF datasheet
KPSB6-9 6W 9V / 0.67A
Open Frame pcb mount Current product   View PDF datasheet
KPSB6-12 6W 12V / 0.5A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-12 25W 12V / 2.1A
Open Frame pcb mount Current product   View PDF datasheet
KPSB6-15 6W 15V / 0.4A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-15 25W 15V / 1.67A
Open Frame pcb mount Current product   View PDF datasheet
KPSB6-24 6W 24V / 0.25A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-24 25W 24V / 1.05A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-36 25W 36V / 0.7A
Open Frame pcb mount Current product   View PDF datasheet
KPSB25-48 25W 48V / 0.52A
Open Frame pcb mount Current product   View PDF datasheet
Key : Current product

Quick Product Finder

1
Choose number of outputs:
2
Choose power supply type:

KPSB videos

Range Overview Video

KPSB 5-25W AC-DC Board Mount Power Supplies Video

Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.

KPSB Technical Downloads

KPSB In the TDK-Lambda Newsroom

Cost effective 5 to 25W board mount Class II power supplies have wide operating temperature ranges
Read the article
