DC-DC Converters

HQA

120W Harsh Environment Quarter Brick Converters

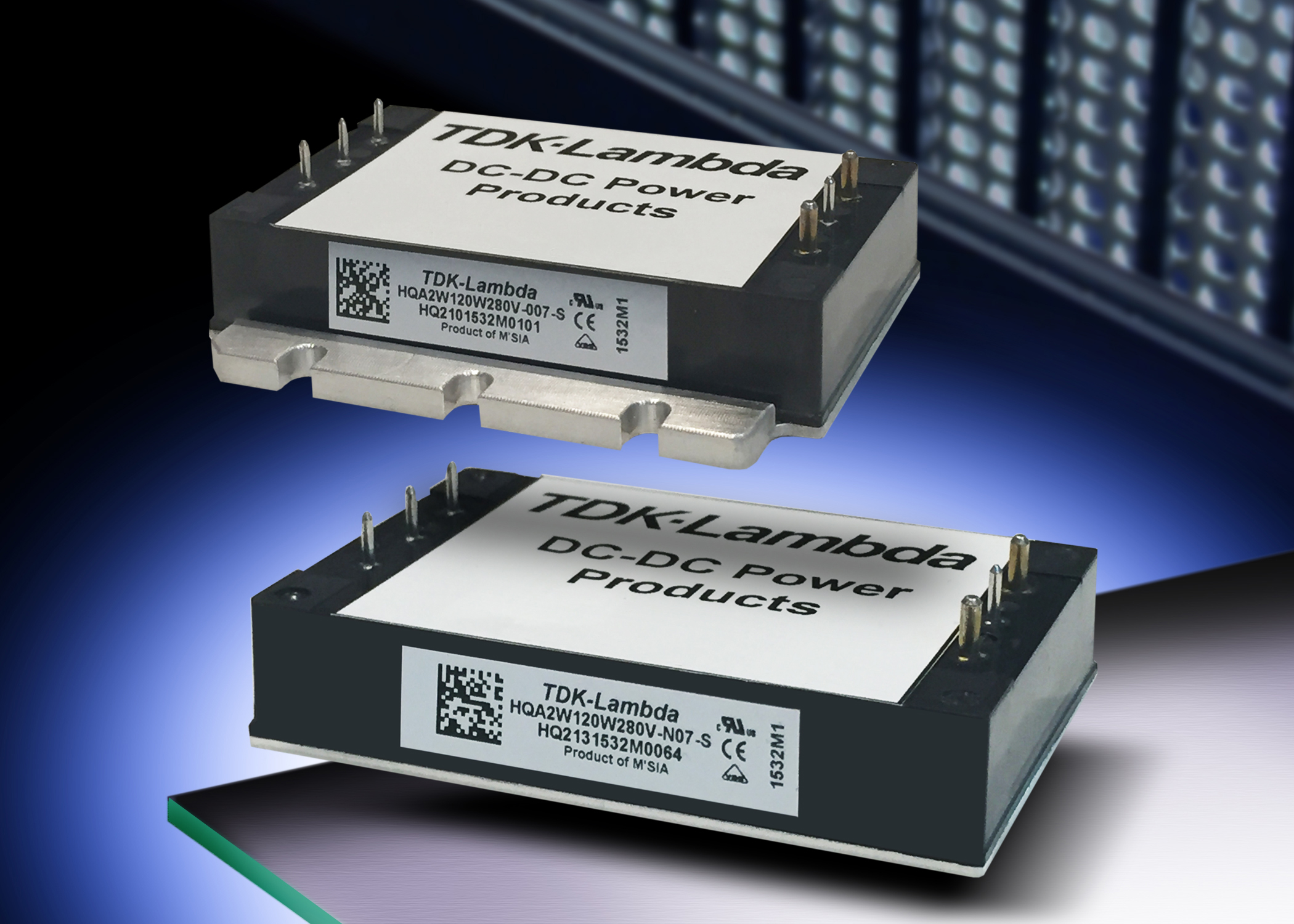

The HQA120 series of encapsulated DC-DC converters are packaged in a ruggedised quarter brick form factor and can deliver 120W output power. The HQA120 operates over a 9V to 40V input range (50V for 1 second). These 89% efficient converters are suitable for use in COTS, communications and industrial equipment.

Features

Standard Quarter Brick Footprint
9-40, 18-40VDC Inputs
Up to 91.5% Efficiency
Up to 115°C Baseplate Temperatures
Rugged Package with Encapsulation
No Optocouplers Used
Enhanced Screening Option

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Specification, Drawings, Technical Files

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number	Power	Output info	Construction	Stock Level	Request quote / sample
HQA2W085W050V	85W	5Vdc / 17Adc	Enclosed pcb mount	Enquire	HQA2W085W050V
HQA2W120W050V	120W	5Vdc / 24Adc	Enclosed pcb mount	Enquire	HQA2W120W050V
HQA2W085W120V	85W	12Vdc / 7.1Adc	Enclosed pcb mount	Enquire	HQA2W085W120V
HQA2W120W120V	120W	12Vdc / 10Adc	Enclosed pcb mount	Enquire	HQA2W120W120V
HQA2W085W150V	85W	15Vdc / 5.7Adc	Enclosed pcb mount	Enquire	HQA2W085W150V
HQA2W120W150V	120W	15Vdc / 8Adc	Enclosed pcb mount	Enquire	HQA2W120W150V
HQA2W085W240V	85W	24Vdc / 3.5Adc	Enclosed pcb mount	Enquire	HQA2W085W240V
HQA2W120W240V	120W	24Vdc / 5Adc	Enclosed pcb mount	Enquire	HQA2W120W240V
HQA2W085W280V	85W	28Vdc / 3Adc	Enclosed pcb mount	Enquire	HQA2W085W280V
HQA2W120W280V	120W	28Vdc / 4.2Adc	Enclosed pcb mount	Enquire	HQA2W120W280V
HQA24120W480V	120W	48Vdc / 2.5Adc	Enclosed pcb mount	Enquire	HQA24120W480V
