Other DIN Rail Products

These are specific products for niche applications, which include some breakthrough achievements.

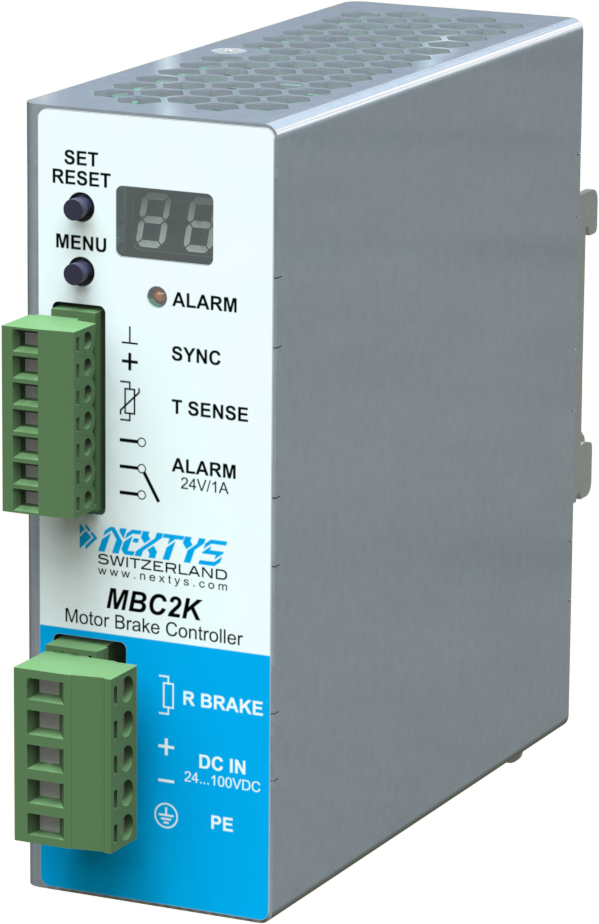

MBC2K is the first CPU controlled brake controller for DC motors that can control brake resistors up to 2kW (several units can be paralleled for more power) and in any range from
24V to 100V.


24-100VDC / 2kW Brake Resistor Chopper Controller for DC motors
55mm width

Rating: 24-100VDC / 2kW
CPU controlled, 2 digit user interface
User settable brake voltage threshold
Usable with ANY power supply
Protection against resistor fault
Several units can be paralleled for increased power

MBC2K - Technical Datasheet

MBC2K - Instruction Sheet

MBC2K - CE declaration

MBC2K - 3D model
