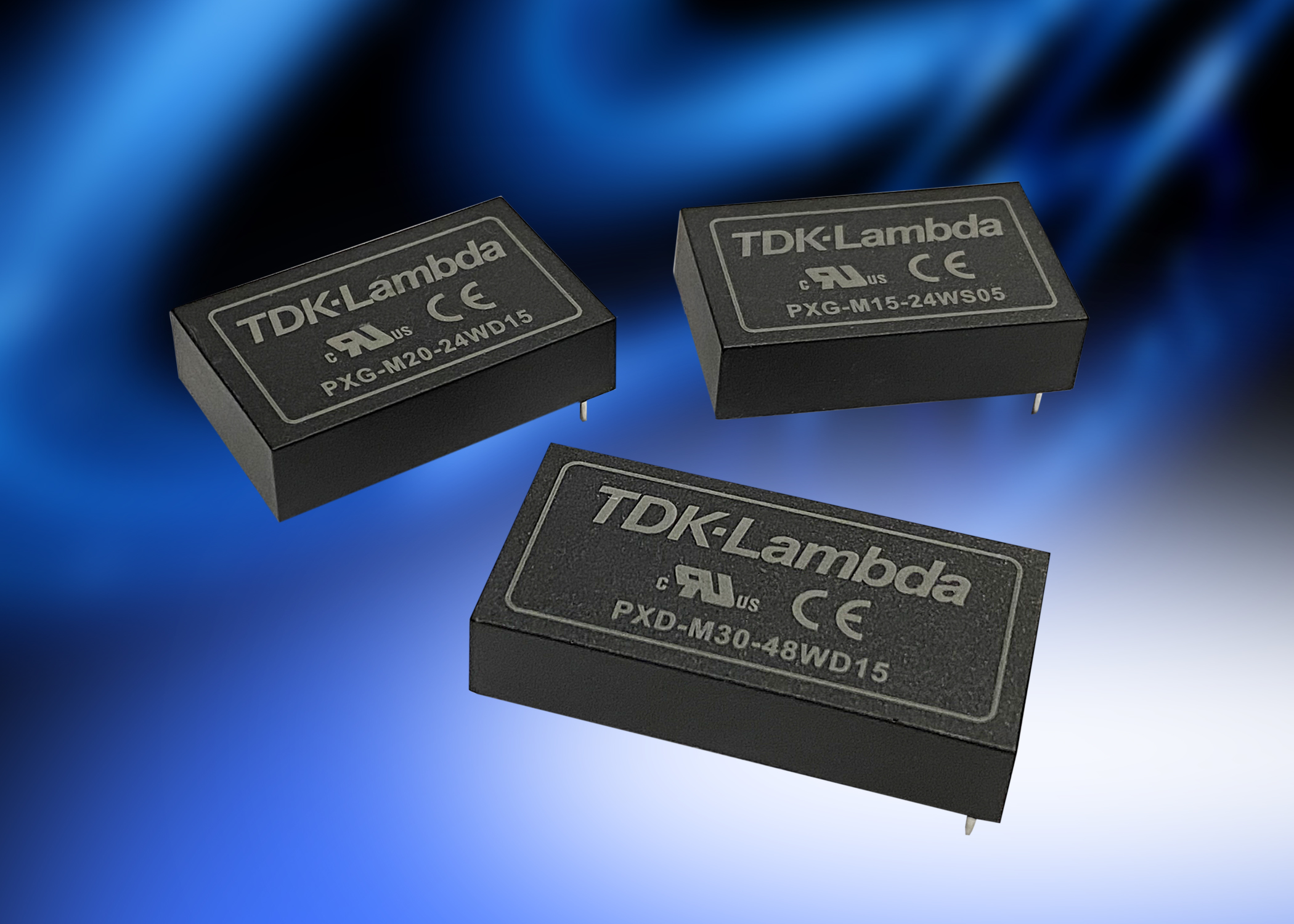

PXG-M

15-20W Medical and Industrial DC-DC Converters

Certified to the IEC 60601-1 and IEC 62368-1 standards for Medical and Audio/Video, Information and Communication Technology Equipment, the PXG Medical series is housed in the industry standard 1.6” x 1” DIP package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXG Medical series is available with output voltages of 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability.

PXG-M

מאפיינים ויתרונות

  • Wide 4:1 Input Range
  • Compact 1.6” x 1” Industry Package
  • Certified to IEC 60601-1 and IEC 62368-1
  • 2 x MOPP Isolation
  • Low No Load Power Consumption

Downloads

מידע אודות מגוון המוצרים

Hide details

Show details

לבקשת דוגמה או הצעת מחיר, נא לסמן את התיבה לצד הדגם בו אתם מעוניינים.

דגמים שנבחרו: 0 Request quote / sample

Part number Power Output info Construction Status Stock Level View PDF datasheet Request quote / sample
PXG-M20-24WD05 20W 5Vdc / 2Adc
-5Vdc / -2000mAdc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M20-48WD05 20W 5Vdc / 2Adc
-5Vdc / -2000mAdc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-48WD05 15W 5Vdc / 1.5Adc
-5Vdc / -1500mAdc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-24WD05 15W 5Vdc / 1.5Adc
-5Vdc / 1.5Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-24WS05 15W 5Vdc / 3Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-48WS05 15W 5Vdc / 3Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-24WS05 20W 5Vdc / 4Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-48WS05 20W 5Vdc / 4Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-24WD12 20W 12Vdc / 0.833Adc
-12Vdc / -833mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-48WD12 20W 12Vdc / 0.833Adc
-12Vdc / -833mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-24WD12 15W 12Vdc / 0.625Adc
-12Vdc / -625mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-48WD12 15W 12Vdc / 0.625Adc
-12Vdc / -625mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-24WS12 15W 12Vdc / 1.25Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-48WS12 15W 12Vdc / 1.25Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-24WS12 20W 12Vdc / 1.67Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-48WS12 20W 12Vdc / 1.67Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-24WD15 20W 15Vdc / 0.677Adc
-15Vdc / -677mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-48WD15 20W 15Vdc / 0.677Adc
-15Vdc / -677mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-24WD15 15W 15Vdc / 0.5Adc
-15Vdc / -500mAdc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-48WD15 15W 15Vdc / 0.5Adc
-15Vdc / -500mAdc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-24WS15 15W 15Vdc / 1Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-48WS15 15W 15Vdc / 1Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M20-24WS15 20W 15Vdc / 1.33Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M20-48WS15 20W 15Vdc / 1.33Adc
Enclosed pcb mount Current product Enquire   View PDF datasheet
PXG-M15-24WS24 15W 24Vdc / 0.625Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M15-48WS24 15W 24Vdc / 0.625Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-24WS24 20W 24Vdc / 0.833Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
PXG-M20-48WS24 20W 24Vdc / 0.833Adc
Enclosed pcb mount Current product Check stock   View PDF datasheet
Part number
PXG-M20-24WD05
Power 20W
Output info 5Vdc / 2Adc
-5Vdc / -2000mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WD05
Power 20W
Output info 5Vdc / 2Adc
-5Vdc / -2000mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WD05
Power 15W
Output info 5Vdc / 1.5Adc
-5Vdc / -1500mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WD05
Power 15W
Output info 5Vdc / 1.5Adc
-5Vdc / 1.5Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WS05
Power 15W
Output info 5Vdc / 3Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WS05
Power 15W
Output info 5Vdc / 3Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WS05
Power 20W
Output info 5Vdc / 4Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WS05
Power 20W
Output info 5Vdc / 4Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WD12
Power 20W
Output info 12Vdc / 0.833Adc
-12Vdc / -833mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WD12
Power 20W
Output info 12Vdc / 0.833Adc
-12Vdc / -833mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WD12
Power 15W
Output info 12Vdc / 0.625Adc
-12Vdc / -625mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WD12
Power 15W
Output info 12Vdc / 0.625Adc
-12Vdc / -625mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WS12
Power 15W
Output info 12Vdc / 1.25Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WS12
Power 15W
Output info 12Vdc / 1.25Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WS12
Power 20W
Output info 12Vdc / 1.67Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WS12
Power 20W
Output info 12Vdc / 1.67Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WD15
Power 20W
Output info 15Vdc / 0.677Adc
-15Vdc / -677mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WD15
Power 20W
Output info 15Vdc / 0.677Adc
-15Vdc / -677mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WD15
Power 15W
Output info 15Vdc / 0.5Adc
-15Vdc / -500mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WD15
Power 15W
Output info 15Vdc / 0.5Adc
-15Vdc / -500mAdc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WS15
Power 15W
Output info 15Vdc / 1Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WS15
Power 15W
Output info 15Vdc / 1Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WS15
Power 20W
Output info 15Vdc / 1.33Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WS15
Power 20W
Output info 15Vdc / 1.33Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-24WS24
Power 15W
Output info 24Vdc / 0.625Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M15-48WS24
Power 15W
Output info 24Vdc / 0.625Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-24WS24
Power 20W
Output info 24Vdc / 0.833Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PXG-M20-48WS24
Power 20W
Output info 24Vdc / 0.833Adc
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
Key : Current product
