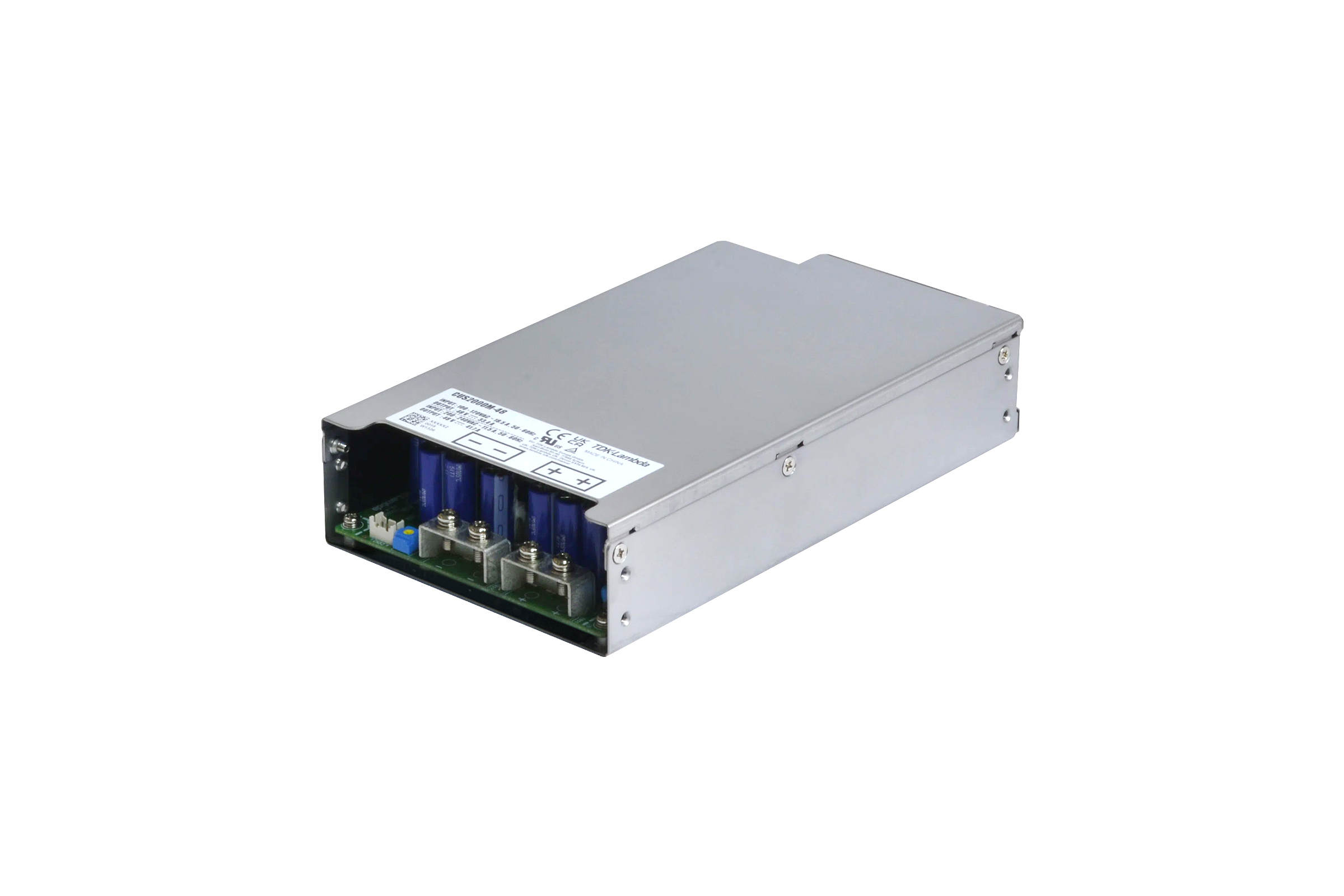

The compact CUS1600M/2000M series of single output AC-DC power supplies are available with 12V, 24V, 36V and 48V outputs (model dependent) in a compact 4.5 x 8.0 inch footprint with 1.67 inch height and can deliver up to 1600W or 2000W.

Efficiency of up to 95% (model dependent) is possible. A cover with integral end mounted variable speed cooling fan is provided as standard.

Safety certifications include IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1 with UKCA and CE marking for the Low Voltage, EMC and RoHS Directives. The units also comply with EN 55011-B and EN 55032-B conducted and radiated emissions , and meet the EN 61000-3-2 harmonics, IEC60601-1-2 Edition 4 and IEC 61000-4 immunity standards.

Typical applications include medical, dental, test and measurement, broadcast, professional audio and industrial equipment.
