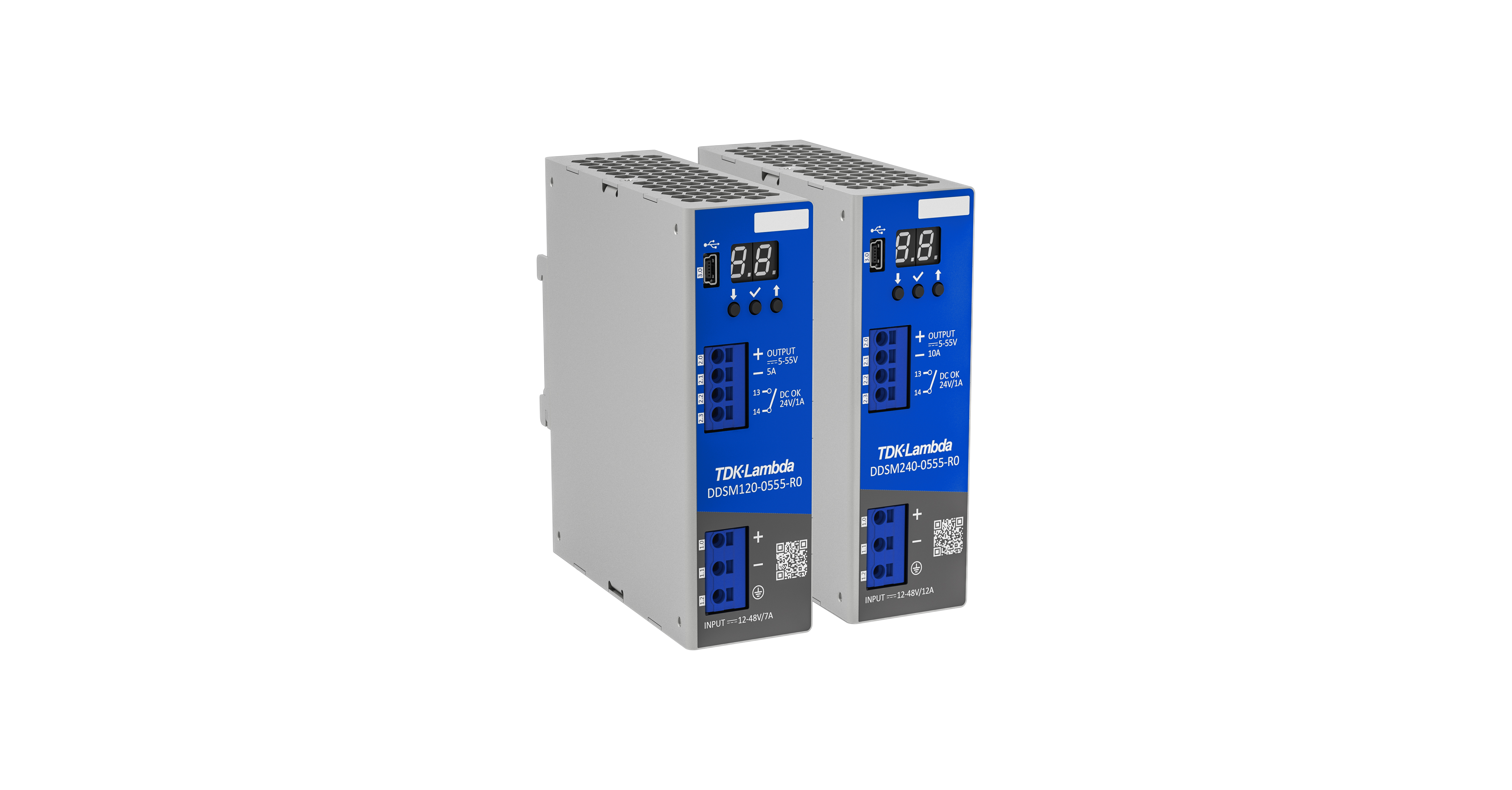

DDSM 120/240W DIN rail DC-DC converter

DDSM

חדש 120/240W DIN rail DC-DC converter

The DDSM series of DC-DC converters offers high-performance models with 120 W and 240 W output power in a compact, lightweight design. The DDSM series is highly flexible, with a wide input and output range that allows it to be used across various applications.

The DC-DC converter series is fully digitally controlled. The 7-segment display shows precise system values, status, and alarm codes, and the system can be operated directly via three push buttons. An advanced communication interface is available for operating and maintaining the DDSM with the PowerCMC software tool using the Modbus over USB connection.

An additional DC-OK contact provides further signaling opportunities. Thanks to its push-in terminals, the DDSM series guarantees simplified installation and reliable performance in diverse industrial environments.

מאפיינים ויתרונות

Wide input & output range with 120W and 240W for various applications
Compact & durable design for cost effective use of cabinet space
Efficient system management and diagnostics from any location
Advanced connectivity features Modbus over USB and PowerCMC software
User friendly operation with a clear digital front display and push buttons
High efficiency and low stand-by losses contribute to an eco-friendly energy footprint

Downloads

גיליונות נתונים & מדריכים

תמונות & שרטוטי תלת מימד

קישורים שימושיים

Safety Certification

מידע אודות מגוון המוצרים

Hide details

Show details

לבקשת דוגמה או הצעת מחיר, נא לסמן את התיבה לצד הדגם בו אתם מעוניינים.

דגמים שנבחרו: 0 Request quote / sample

Part number	Power	Output info	Construction	Status	Stock Level	View PDF datasheet	Request quote / sample
DDSM120-0555-R0	120W	5V - 55V / 5A	Enclosed		Enquire		DDSM120-0555-R0
DDSM240-0555-R0	240W	5V - 55V / 10A	Enclosed		Enquire		DDSM240-0555-R0

Part number
DDSM120-0555-R0
Power	120W
Output info	5V - 55V / 5A
Construction	Enclosed
Status
Stock Level	Enquire
View PDF datasheet
Request quote / sample	DDSM120-0555-R0
DDSM240-0555-R0
Power	240W
Output info	5V - 55V / 10A
Construction	Enclosed
Status
Stock Level	Enquire
View PDF datasheet
Request quote / sample	DDSM240-0555-R0
