TDK-Lambda Israel
ספקי כוח AC-DC
KAS

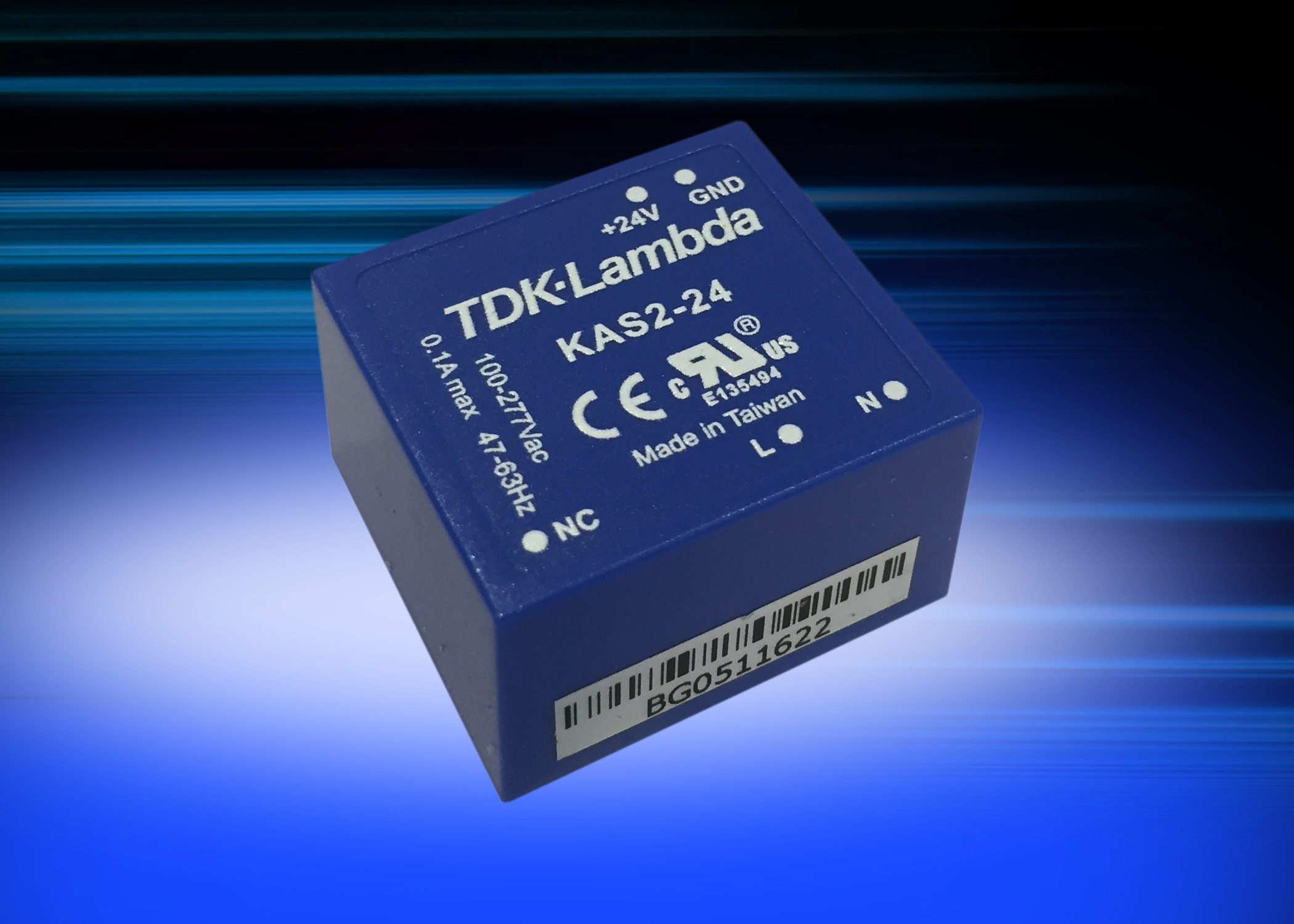

2-4W Wide AC-DC Input PCB-Mount Power SuppliesDesigned to meet the household requirements of 60335-1 the KAS series with its wide operating temperature range up to 80°C, and start-up temperature of -40°C, is suitable for both domestic and industrial applications. The encapsulated board mounted power supplies do not need a ground connection and are available in 2W or 4W power levels. The KAS series provide an off-load power consumption less than 0.3W and Class B EMC performance.
מאפיינים ויתרונות
- 90 - 305VAC Input Voltage
- Class II (No ground needed)
- Wide Temperature Range (-40 to +80°C)
- Low off-load Power Consumption
Downloads
גיליונות נתונים & מדריכים
תמונות & שרטוטי תלת מימד
קישורים שימושיים
מידע אודות מגוון המוצרים
| Part number | Power (W) | Output info | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| KAS2-3P3 | 2 |
3.3V / 0.6A |
Enclosed pcb mount |  |
|
| KAS2-5 | 2 |
5V / 0.4A |
Enclosed pcb mount | |
|
| KAS2-9 | 2 |
9V / 0.22A |
Enclosed pcb mount | |
|
| KAS2-12 | 2 |
12V / 0.167A |
Enclosed pcb mount | |
|
| KAS2-15 | 2 |
15V / 0.133A |
Enclosed pcb mount | |
|
| KAS2-24 | 2 |
24V / 0.083A |
Enclosed pcb mount | |
|
Key :
Discontinued product
