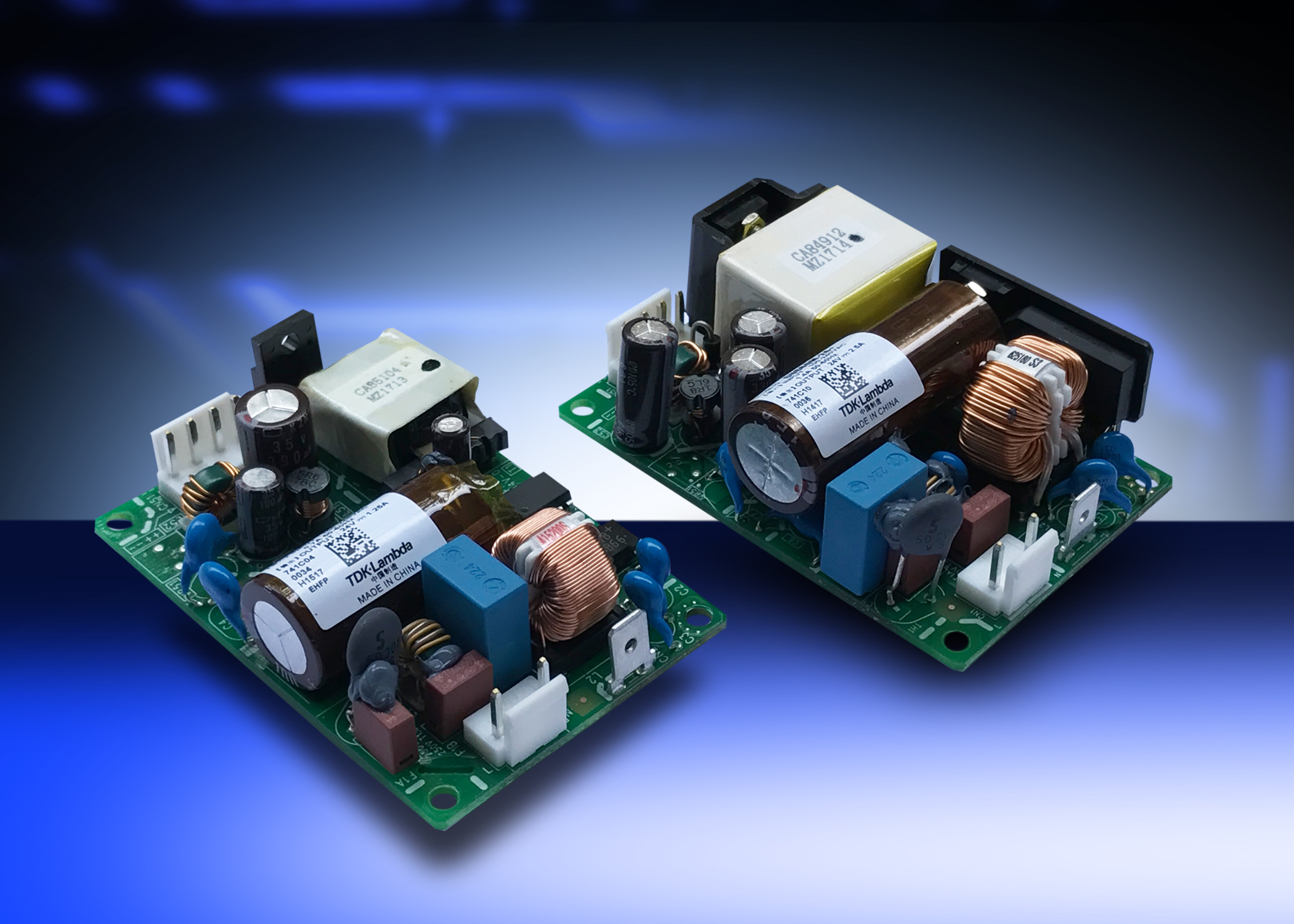

CUS30M & CUS60M
Single Output 30 - 60W Medical & ITE Power Supplies
CUS30M and CUS60M are single output 2” x 3” footprint AC/DC power supplies with outputs ranging from 5V to 48V and have IEC60601-1 3rd edition medical approval as well as IEC62368-1 and are compliant with EN60601-1-2:2015 Edition 4 immunity requirements. Rated at 30W and 60W, these compact products meet class B conducted and radiated EMI in either a Class I or Class II (double insulated) construction, without the need for external filtering. This flexibility allows the CUS30/60M to be used in a wide range of applications, including home healthcare, medical, dental, test and measurement, broadcast and industrial equipment.
מאפיינים ויתרונות
- High Efficiency, up to 90%
- Compact 2” x 3” Footprint
- Convection Cooled
- Suitable for Class I and II Installations
- Medical Approval with 2 x MoPP Isolation
אפליקציות
מידע אודות מגוון המוצרים
| Part number | Power (W) | Output info | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| CUS30M-12 | 30 |
12V / 2.5A |
Open Frame |  |
|
| CUS60M-12 | 60 |
12V / 5A |
Open Frame | |
|
| CUS30M-24 | 30 |
24V / 1.25A |
Open Frame | |
|
| CUS60M-24 | 60 |
24V / 2.5A |
Open Frame | |
|
| CUS30M-48 | 30.24 |
48V / 0.63A |
Open Frame | |
|
הורדות טכניות
מחדר החדשות של טידיקיי-למבדא
סדרת ספקי הכוח החדשה ,עומדת בתקנים רפואיים CUS 30M, CUS 60M AC-DC Power supplies
קרא מאמר
הסרטונים שלנו מוצגים בVimeo. בצפייה בתכנים אלה הנך מסכים לתנאים ולמדיניות הפרטיות המפורטים באתר Vimeo.
-
CUS30M & CUS60M Single Output 30 - 60W Medical & ITE Power Supplies Video
-
What are the key features of the CUS30M & 60M medical ac-dc power supplies?
-
What are the levels of leakage current and EMI for CUS30M & 60M medical power supplies?
-
Do CUS30M & CUS60M AC-DC power supplies have medical approvals?
-
What is the no load consumption and efficiency of CUS30M & CUS60M medical power supplies?
CUS30M and CUS60M are single output 2” x 3” footprint AC/DC power supplies with outputs ranging from 5V to 48V and have IEC60601-1 3rd edition medical approval as well as IEC62368-1 and are compliant with EN60601-1-2:2015 Edition 4 immunity requirements. Rated at 30W and 60W, these compact products meet class B conducted and radiated EMI in either a Class I or Class II (double insulated) construction, without the need for external filtering. This flexibility allows the CUS30/60M to be used in a wide range of applications, including home healthcare, medical, dental, test and measurement, broadcast and industrial equipment.
