PF

Power Factor Correction Modules

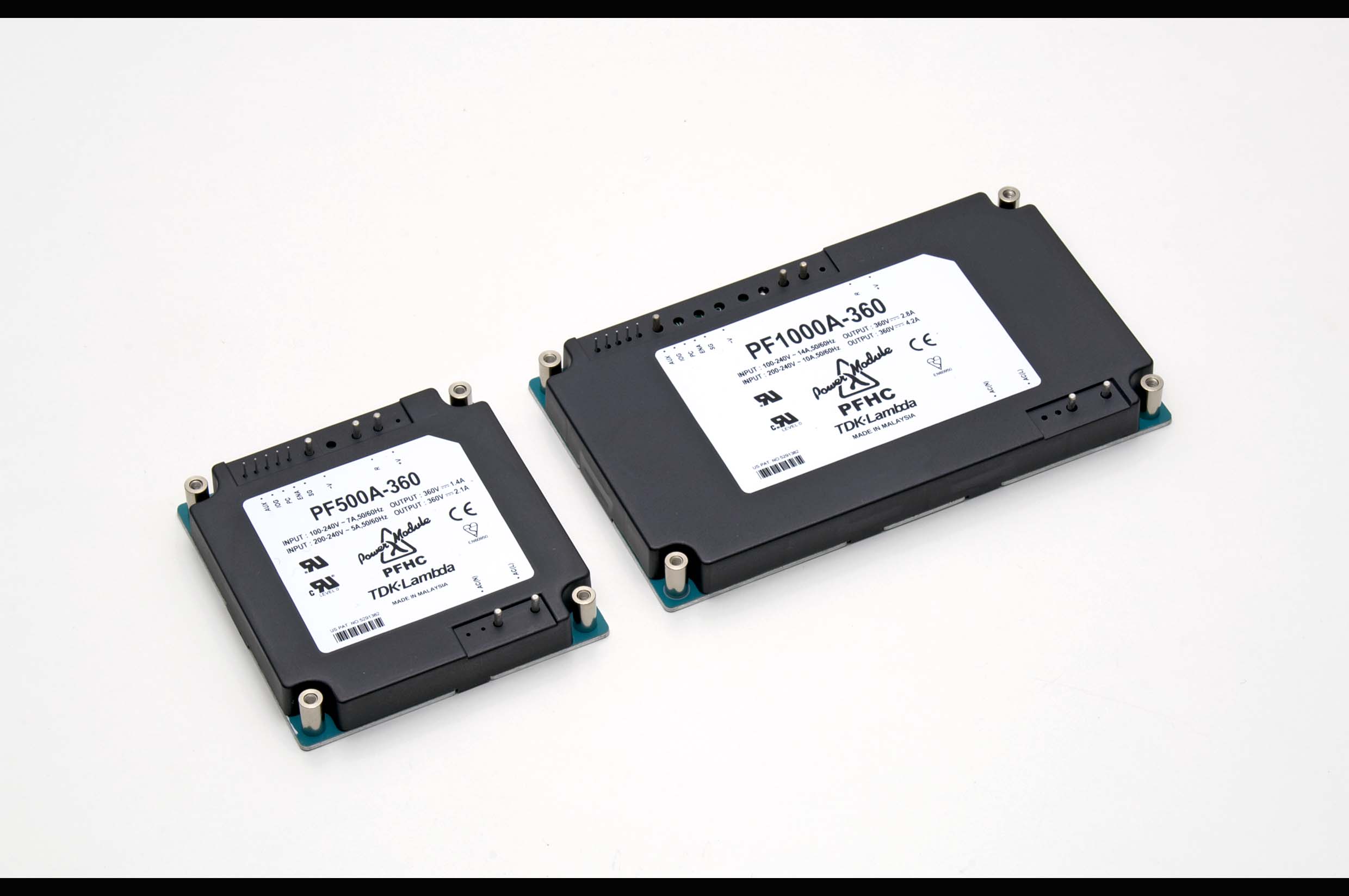

Non-standard power requirements can be achieved using high efficiency, board mounted power modules. The PF-A and PF-B series of AC-DC converters can be used to provide rectification and power factor correction, delivering 360Vdc to individual DC-DC converters, or loads, from wide range AC inputs.

Available in two power levels, the PF500A-360 can support up to 756W with the PF1500B-360 and PF1000A-360 up to 1,512W at high line. The new full brick PF1500B-360 modules have an efficiency of up to 96.5% and operating temperatures from -40 to +100oC.

For higher power loads, the units can be connected in parallel.

PF

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number Power Output info Construction Status Stock Level View PDF datasheet Request quote / sample
PF 500A-360 756W 360V / 2.1A
Brick Current product Check stock   View PDF datasheet
PF 1000A-360 1.512kW 360V / 4.2A
Brick Current product Check stock   View PDF datasheet
PF1500B-360 1.512kW 360V / 4.2A
Full Brick Current product Check stock   View PDF datasheet
Part number
PF 500A-360
Power 756W
Output info 360V / 2.1A
Construction Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PF 1000A-360
Power 1.512kW
Output info 360V / 4.2A
Construction Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
PF1500B-360
Power 1.512kW
Output info 360V / 4.2A
Construction Full Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
Key : Current product

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample
