DC-DC Converters

AC-DC Power Supplies

CCG

1.5 - 30W DC-DC Converters

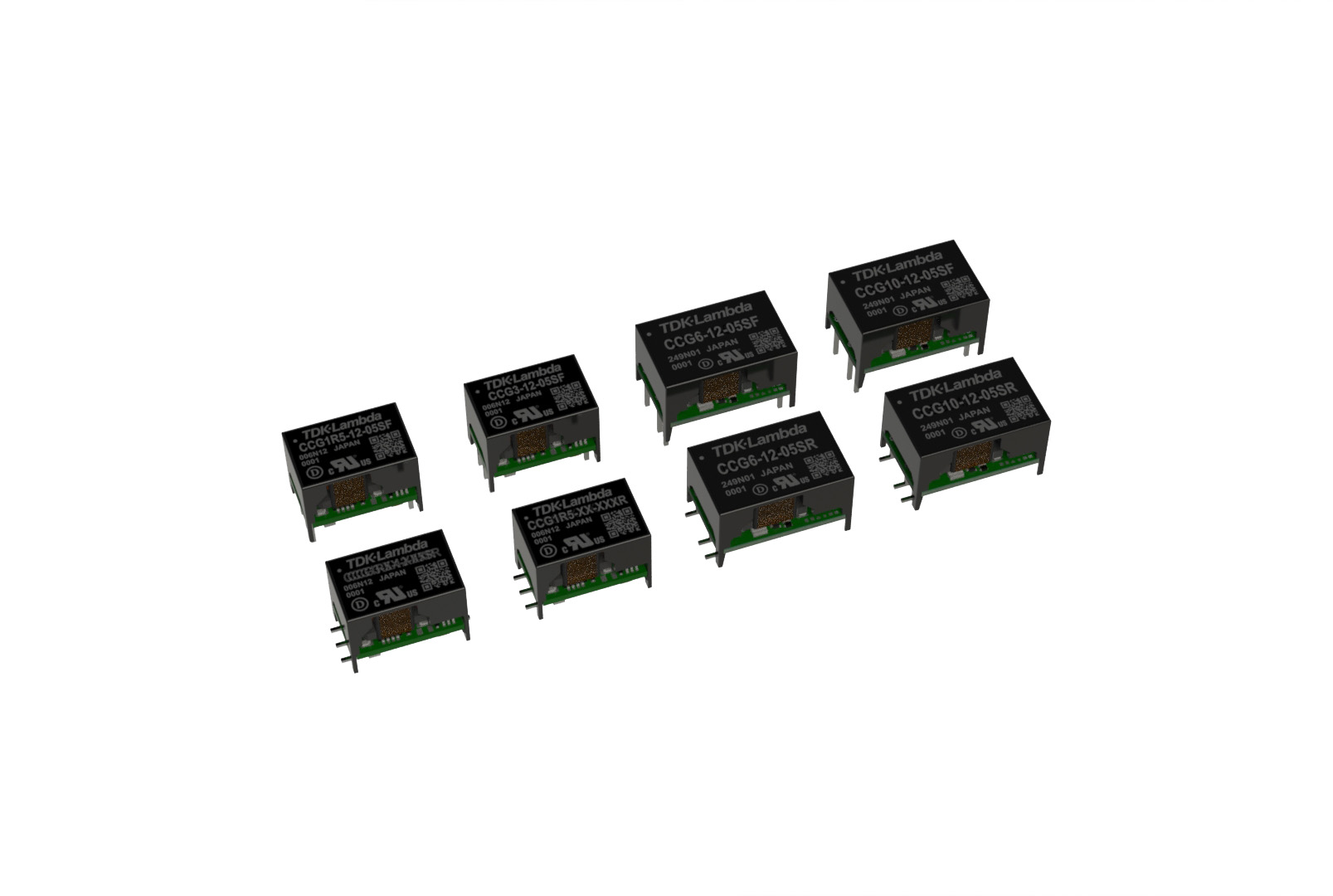

The CCG1R5 (1.5W), CCG3 (3W), CCG6 (6W) and CCG10 (10W) series comprises of 36 voltage and current combinations with 3.3V, 5V, 12V, 15V and dual +/-12V and +/-15V outputs. The dual output models can also be connected to supply 24V and 30V.  All can operate from either 4.5 to 18V, 9 to 36V or 18 to 76Vdc inputs to support operation from 5V, 12V, 24V and 48V power sources. This 4:1 input range can assist with inventory reduction programs with one part number covering two nominal voltages.

The 1.5W and 3W share a common compact package size of 15.7mm x 10.4mm x 11.5mm (length x width x height), and the 6W and 10W have a common 19mm x 12.4mm footprint (length x width) with a height of 11.5mm (11.8mm for the surface mount models).  The plastic case is not encapsulated, avoiding quality risks associated with silicone potting compounds during reflow soldering.

The operating temperature range for the CCG1R5 to CCG10 is from -40 up to +100 oC using convection or forced air cooling with minimal derating. Over-current protection and remote on/off is standard, with a -5/+10% output voltage adjustment range on single outputs only. Input to output isolation is 1,500Vdc. Certification is to the IEC/UL/CSA/EN 62368-1 safety standards with the CE and UKCA marks for the LV and RoHS Directives.

CCG Series at a glance

CCG

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number Power Output info Construction Status Stock Level View PDF datasheet Request quote / sample
CCG1R5-12-03Sx 1.32W 3.3V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-24-03Sx 1.32W 3.3V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-03Sx 1.32W 3.3V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-03Sx 2.84W 3.3V / 0.8A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-03Sx 2.64W 3.3V / 0.8A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-03Sx 2.64W 3.3V / 0.8A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-03Sx 5.28W 3.3V / 1.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-03Sx 5.28W 3.3V / 1.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-03Sx 5.28W 3.3V / 1.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-03Sx 8.58W 3.3V / 2.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-03Sx 8.58W 3.3V / 2.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-03Sx 8.58W 3.3V / 2.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-03S 13.2W 3.3V / 4A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-03S 13.2W 3.3V / 4A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-24-03S 23.1W 3.3V / 7A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-03S 23.1W 3.3V / 7A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-12-05Sx 1.5W 5V / 0.3A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-05Sx 1.5W 5V / 0.3A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-05Sx 3W 5V / 0.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-05Sx 3W 5V / 0.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-05Sx 3W 5V / 0.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-05Sx 3W 5V / 0.6A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-05Sx 6W 5V / 1.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-05Sx 6W 5V / 1.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-05Sx 6W 5V / 1.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-05Sx 10W 5V / 2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-05Sx 10W 5V / 2A
1U Rack Current product Enquire   View PDF datasheet
CCG10-48-05Sx 10W 5V / 2A
1U Rack Current product Enquire   View PDF datasheet
CCG15-24-05S 15W 5V / 3A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-05S 15W 5V / 3A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-24-05S 30W 5V / 6A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-05S 30W 5V / 6A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG1R5-24-12Dx 1.56W 12V / 65mA
-12V / 65mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-12-12Dx 1.56W 12V / 65mA
-12V / 65mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-12Dx 1.56W 12V / 65mA
-12V / 65mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-12Dx 3.12W 12V / 0.13A
-12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-12Dx 3.12W 12V / 0.13A
-12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-12Dx 3.12W 12V / 0.13A
-12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-12Dx 6W 12V / 0.25A
-12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-12Dx 6W 12V / 0.25A
-12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-12Dx 6W 12V / 0.25A
-12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-12Dx 10.08W 12V / 0.42A
-12V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-12Dx 10.08W 12V / 0.42A
-12V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-12Dx 10.08W 12V / 0.42A
-12V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-12D 15.6W 12V / 0.65A
-12V / 0.65A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-12D 15.6W 12V / 0.65A
-12V / 0.65A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG30-24-12D 30W 12V / 1.25A
-12V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-12D 30W 12V / 1.25A
-12V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG1R5-12-12Sx 1.56W 12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-24-12Sx 1.56W 12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-12Sx 1.56W 12V / 0.13A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-12Sx 3W 12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-12Sx 3W 12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-12Sx 3W 12V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-12Sx 6W 12V / 0.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-12Sx 6W 12V / 0.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-12Sx 6W 12V / 0.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-12Sx 10.8W 12V / 0.9A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-12Sx 10.8W 12V / 0.9A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-12Sx 10.8W 12V / 0.9A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-12S 15.6W 12V / 1.3A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-12S 15.6W 12V / 1.3A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-24-12S 30W 12V / 2.5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-12S 30W 12V / 2.5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG1R5-12-15Dx 1.5W 15V / 50mA
-15V / 50mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-24-15Dx 1.5W 15V / 50mA
-15V / 50mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-15Dx 1.5W 15V / 50mA
-15V / 50mA
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-15Dx 3W 15V / 0.1A
-15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-15Dx 3W 15V / 0.1A
-15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-15Dx 3W 15V / 0.1A
-15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-15Dx 6W 15V / 0.2A
-15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-15Dx 6W 15V / 0.2A
-15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-15Dx 6W 15V / 0.2A
-15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-15Dx 10.2W 15V / 0.42A
-15V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-15Dx 10.2W 15V / 0.42A
-15V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-15Dx 10.2W 15V / 0.42A
-15V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-15D 15W 15V / 0.5A
-15V / 0.5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-15D 15W 15V / 0.5A
-15V / 0.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG30-24-15D 30W 15V / 1A
-15V / 1A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-15D 30W 15V / 1A
-15V / 1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-12-15Sx 1.5W 15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-24-15Sx 1.5W 15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG1R5-48-15Sx 1.5W 15V / 0.1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-12-15Sx 3W 15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-24-15Sx 3W 15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG3-48-15Sx 3W 15V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-15Sx 6W 15V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-15Sx 6W 15V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-15Sx 6W 15V / 0.4A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-15Sx 10.5W 15V / 0.7A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-15Sx 10.5W 15V / 0.7A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-15Sx 10.5W 15V / 0.7A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-15S 15W 15V / 1A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-15S 15W 15V / 1A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-24-15S 30W 15V / 2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG30-48-15S 30W 15V / 2A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG6-24-12Dx 6W 24V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-12Dx 6W 24V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-12Dx 6W 24V / 0.25A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-12Dx 10.08W 24V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-12Dx 10.08W 24V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-12Dx 10.08W 24V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-12D 15.6W 24V / 0.65A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-12D 15.6W 24V / 0.65A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG30-24-12D 30W 24V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-12D 30W 24V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG6-12-15Dx 6W 30V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-12-15Dx 6W 30V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-24-15Dx 6W 30V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG6-48-15Dx 6W 30V / 0.2A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-12-15Dx 10.2W 30V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-24-15Dx 10.2W 30V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG10-48-15Dx 10.2W 30V / 0.42A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG15-24-15D 15W 30V / 0.5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG15-48-15D 15W 30V / 0.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
CCG30-24-15D 30W 30V / 1A
Enclosed pcb mount Current product Check stock   View PDF datasheet
CCG30-48-15D 30W 30V / 1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
Part number
CCG1R5-12-03Sx
Power 1.32W
Output info 3.3V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-24-03Sx
Power 1.32W
Output info 3.3V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-03Sx
Power 1.32W
Output info 3.3V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-03Sx
Power 2.84W
Output info 3.3V / 0.8A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-03Sx
Power 2.64W
Output info 3.3V / 0.8A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-03Sx
Power 2.64W
Output info 3.3V / 0.8A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-03Sx
Power 5.28W
Output info 3.3V / 1.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-03Sx
Power 5.28W
Output info 3.3V / 1.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-03Sx
Power 5.28W
Output info 3.3V / 1.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-03Sx
Power 8.58W
Output info 3.3V / 2.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-03Sx
Power 8.58W
Output info 3.3V / 2.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-03Sx
Power 8.58W
Output info 3.3V / 2.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-03S
Power 13.2W
Output info 3.3V / 4A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-03S
Power 13.2W
Output info 3.3V / 4A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-03S
Power 23.1W
Output info 3.3V / 7A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-03S
Power 23.1W
Output info 3.3V / 7A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-12-05Sx
Power 1.5W
Output info 5V / 0.3A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-05Sx
Power 1.5W
Output info 5V / 0.3A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-05Sx
Power 3W
Output info 5V / 0.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-05Sx
Power 3W
Output info 5V / 0.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-05Sx
Power 3W
Output info 5V / 0.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-05Sx
Power 3W
Output info 5V / 0.6A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-05Sx
Power 6W
Output info 5V / 1.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-05Sx
Power 6W
Output info 5V / 1.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-05Sx
Power 6W
Output info 5V / 1.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-05Sx
Power 10W
Output info 5V / 2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-05Sx
Power 10W
Output info 5V / 2A
Construction 1U Rack
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-05Sx
Power 10W
Output info 5V / 2A
Construction 1U Rack
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-05S
Power 15W
Output info 5V / 3A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-05S
Power 15W
Output info 5V / 3A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-05S
Power 30W
Output info 5V / 6A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-05S
Power 30W
Output info 5V / 6A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-24-12Dx
Power 1.56W
Output info 12V / 65mA
-12V / 65mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-12-12Dx
Power 1.56W
Output info 12V / 65mA
-12V / 65mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-12Dx
Power 1.56W
Output info 12V / 65mA
-12V / 65mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-12Dx
Power 3.12W
Output info 12V / 0.13A
-12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-12Dx
Power 3.12W
Output info 12V / 0.13A
-12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-12Dx
Power 3.12W
Output info 12V / 0.13A
-12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-12Dx
Power 6W
Output info 12V / 0.25A
-12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-12Dx
Power 6W
Output info 12V / 0.25A
-12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-12Dx
Power 6W
Output info 12V / 0.25A
-12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-12Dx
Power 10.08W
Output info 12V / 0.42A
-12V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-12Dx
Power 10.08W
Output info 12V / 0.42A
-12V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-12Dx
Power 10.08W
Output info 12V / 0.42A
-12V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-12D
Power 15.6W
Output info 12V / 0.65A
-12V / 0.65A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-12D
Power 15.6W
Output info 12V / 0.65A
-12V / 0.65A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-12D
Power 30W
Output info 12V / 1.25A
-12V / 1.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-12D
Power 30W
Output info 12V / 1.25A
-12V / 1.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-12-12Sx
Power 1.56W
Output info 12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-24-12Sx
Power 1.56W
Output info 12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-12Sx
Power 1.56W
Output info 12V / 0.13A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-12Sx
Power 3W
Output info 12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-12Sx
Power 3W
Output info 12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-12Sx
Power 3W
Output info 12V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-12Sx
Power 6W
Output info 12V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-12Sx
Power 6W
Output info 12V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-12Sx
Power 6W
Output info 12V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-12Sx
Power 10.8W
Output info 12V / 0.9A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-12Sx
Power 10.8W
Output info 12V / 0.9A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-12Sx
Power 10.8W
Output info 12V / 0.9A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-12S
Power 15.6W
Output info 12V / 1.3A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-12S
Power 15.6W
Output info 12V / 1.3A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-12S
Power 30W
Output info 12V / 2.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-12S
Power 30W
Output info 12V / 2.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-12-15Dx
Power 1.5W
Output info 15V / 50mA
-15V / 50mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-24-15Dx
Power 1.5W
Output info 15V / 50mA
-15V / 50mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-15Dx
Power 1.5W
Output info 15V / 50mA
-15V / 50mA
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-15Dx
Power 3W
Output info 15V / 0.1A
-15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-15Dx
Power 3W
Output info 15V / 0.1A
-15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-15Dx
Power 3W
Output info 15V / 0.1A
-15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-15Dx
Power 6W
Output info 15V / 0.2A
-15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-15Dx
Power 6W
Output info 15V / 0.2A
-15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-15Dx
Power 6W
Output info 15V / 0.2A
-15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-15Dx
Power 10.2W
Output info 15V / 0.42A
-15V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-15Dx
Power 10.2W
Output info 15V / 0.42A
-15V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-15Dx
Power 10.2W
Output info 15V / 0.42A
-15V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-15D
Power 15W
Output info 15V / 0.5A
-15V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-15D
Power 15W
Output info 15V / 0.5A
-15V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-15D
Power 30W
Output info 15V / 1A
-15V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-15D
Power 30W
Output info 15V / 1A
-15V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-12-15Sx
Power 1.5W
Output info 15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-24-15Sx
Power 1.5W
Output info 15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG1R5-48-15Sx
Power 1.5W
Output info 15V / 0.1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-12-15Sx
Power 3W
Output info 15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-24-15Sx
Power 3W
Output info 15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG3-48-15Sx
Power 3W
Output info 15V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-15Sx
Power 6W
Output info 15V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-15Sx
Power 6W
Output info 15V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-15Sx
Power 6W
Output info 15V / 0.4A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-15Sx
Power 10.5W
Output info 15V / 0.7A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-15Sx
Power 10.5W
Output info 15V / 0.7A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-15Sx
Power 10.5W
Output info 15V / 0.7A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-15S
Power 15W
Output info 15V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-15S
Power 15W
Output info 15V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-15S
Power 30W
Output info 15V / 2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-15S
Power 30W
Output info 15V / 2A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-12Dx
Power 6W
Output info 24V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-12Dx
Power 6W
Output info 24V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-12Dx
Power 6W
Output info 24V / 0.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-12Dx
Power 10.08W
Output info 24V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-12Dx
Power 10.08W
Output info 24V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-12Dx
Power 10.08W
Output info 24V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-12D
Power 15.6W
Output info 24V / 0.65A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-12D
Power 15.6W
Output info 24V / 0.65A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-12D
Power 30W
Output info 24V / 1.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-12D
Power 30W
Output info 24V / 1.25A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-15Dx
Power 6W
Output info 30V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-12-15Dx
Power 6W
Output info 30V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-24-15Dx
Power 6W
Output info 30V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG6-48-15Dx
Power 6W
Output info 30V / 0.2A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-12-15Dx
Power 10.2W
Output info 30V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-24-15Dx
Power 10.2W
Output info 30V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG10-48-15Dx
Power 10.2W
Output info 30V / 0.42A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-24-15D
Power 15W
Output info 30V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG15-48-15D
Power 15W
Output info 30V / 0.5A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-24-15D
Power 30W
Output info 30V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
CCG30-48-15D
Power 30W
Output info 30V / 1A
Construction Enclosed pcb mount
Status Current product
Stock Level Enquire
View PDF datasheet View PDF datasheet
Request quote / sample
Key : Current product

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Quick Product Finder

1
Choose number of outputs:
2
Choose power supply type:

CCG videos

Range Overview Video

CCG 1.5 - 30W DC-DC Converters Video

Range Overview Video

CCG Promotion video

Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.

CCG Technical Downloads

CCG In the TDK-Lambda Newsroom

DC-DC converter series expanded with 6W and 10W surface mount and through-hole models
Read the article

4:1 input range 1.5 to 3W DC-DC converters operate at 100% load in +85°C ambient temperatures without airflow
Read the article

Wide range input 1” x 1” 15W and 30W dual output DC-DC converters have six-sided shielding
Read the article

15W 1x1 inch DC-DC converters have six-sided shielding
Read the article

Wide range input DC-DC converters deliver 30W in a 1 x 1 inch footprint
Read the article

Applications

Further Resources

PAGE TOP

PAGE TOP
