50 to 1200W, 200 to 425Vdc Input DC-DC Converters

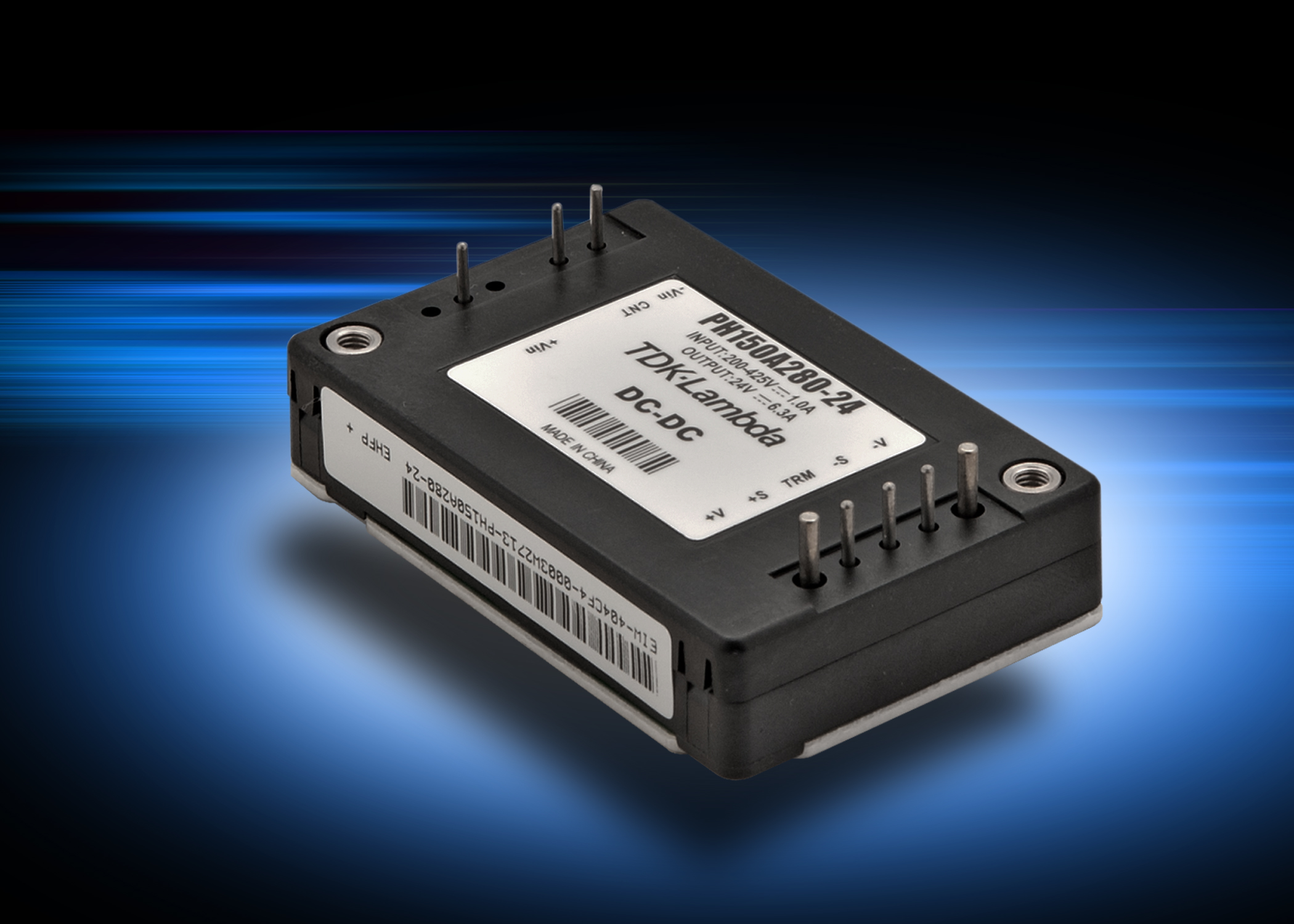

The isolated PH-A DC-DC converters have output power levels of 50W, 75W, 100W, 150W, 300W, 600W and 1,200W and accept a wide 200 to 425Vdc input. The range is available with multiple output voltages; 3.3V, 5V, 12V, 15V, 24V, 28V, 36V and 48V. For non-standard outputs, they feature a wide adjustment range of up to -60% to +20%. All models feature remote sense and remote on/off and can be conduction cooled to a cold plate or mounted with optional heatsinks. The PH-A models have efficiencies of up to 94% and can operate with baseplate temperatures of up to -40 to +100°C for use in harsh environments.  Applications include custom power supplies, high voltage DC distributed power architecture systems in high power semiconductor test equipment, plus data communications, power transmission, industrial and renewable energy.

PH-A

Features

  • Wide range 200 to 425Vdc input
  • Baseplate cooled
  • Up to -40 to 100°C baseplate temperature
  • Up to 94% efficient
  • Parallel function with internal ORing FET on PH1200A models

Downloads

Product Range Information

Hide details

Show details

Part number Power Output info Construction Status Stock Level View PDF datasheet
PH75A280-3.3 49.5W 3.3V / 15A
Quarter Brick Current product Enquire   View PDF datasheet
PH100A280-3.3 66W 3.3V / 20A
Quarter Brick Current product Enquire   View PDF datasheet
PH50A280-5 50W 5V / 10A
Quarter Brick Current product Enquire   View PDF datasheet
PH75A280-5 75W 5V / 15A
Quarter Brick Current product Enquire   View PDF datasheet
PH100A280-5 100W 5V / 20A
Quarter Brick Current product Enquire   View PDF datasheet
PH300A280-5 300W 5V / 60A
Quarter Brick Current product Enquire   View PDF datasheet
PH50A280-12 50.4W 12V / 4.2A
Quarter Brick Current product Enquire   View PDF datasheet
PH75A280-12 75.6W 12V / 6.3A
Quarter Brick Current product Check stock   View PDF datasheet
PH100A280-12 100.8W 12V / 8.4A
Quarter Brick Current product Enquire   View PDF datasheet
PH300A280-12 300W 12V / 25A
Half Brick Current product Check stock   View PDF datasheet
PH1200A280-12 1.2kW 12V / 100A
Full Brick Current product Enquire   View PDF datasheet
PH75A280-15 75W 15V / 5A
Quarter Brick Current product Enquire   View PDF datasheet
PH150A280-15 150W 15V / 10A
Quarter Brick Current product Enquire   View PDF datasheet
PH50A280-24 50.4W 24V / 2.1A
Quarter Brick Current product Enquire   View PDF datasheet
PH75A280-24 76.8W 24V / 3.2A
Quarter Brick Current product Check stock   View PDF datasheet
PH100A280-24 100.8W 24V / 4.2A
Quarter Brick Current product Enquire   View PDF datasheet
PH150A280-24 151.2W 24V / 6.3A
Quarter Brick Current product Check stock   View PDF datasheet
PH300A280-24 300W 24V / 12.5A
Half Brick Current product Enquire   View PDF datasheet
PH600A280-24 600W 24V / 25A
Half Brick Current product Check stock   View PDF datasheet
PH1200A280-24 1.2kW 24V / 50A
Full Brick Current product Enquire   View PDF datasheet
PH75A280-28 75.6W 28V / 2.7A
Quarter Brick Current product Enquire   View PDF datasheet
PH150A280-28 151.2W 28V / 5.4A
Quarter Brick Current product Enquire   View PDF datasheet
PH300A280-28 302.4W 28V / 10.8A
Half Brick Current product Enquire   View PDF datasheet
PH1200A280-28 1.2kW 28V / 42.9A
Full Brick Current product Enquire   View PDF datasheet
PH1200A280-36 1.2kW 36V / 33.4A
Full Brick Current product Enquire   View PDF datasheet
PH50A280-48 52.8W 48V / 1.1A
Quarter Brick Current product Enquire   View PDF datasheet
PH75A280-48 76.8W 48V / 1.6A
Quarter Brick Current product Enquire   View PDF datasheet
PH100A280-48 100.8W 48V / 2.1A
Quarter Brick Current product Enquire   View PDF datasheet
PH150A280-12 150W 48V / 2.1A
Quarter Brick Current product Check stock   View PDF datasheet
PH150A280-48 153.6W 48V / 3.2A
Quarter Brick Current product Enquire   View PDF datasheet
PH300A280-48 302.4W 48V / 6.3A
Half Brick Current product Enquire   View PDF datasheet
PH1200A280-48 1.2kW 48V / 25A
Full Brick Current product Enquire   View PDF datasheet
