KAS

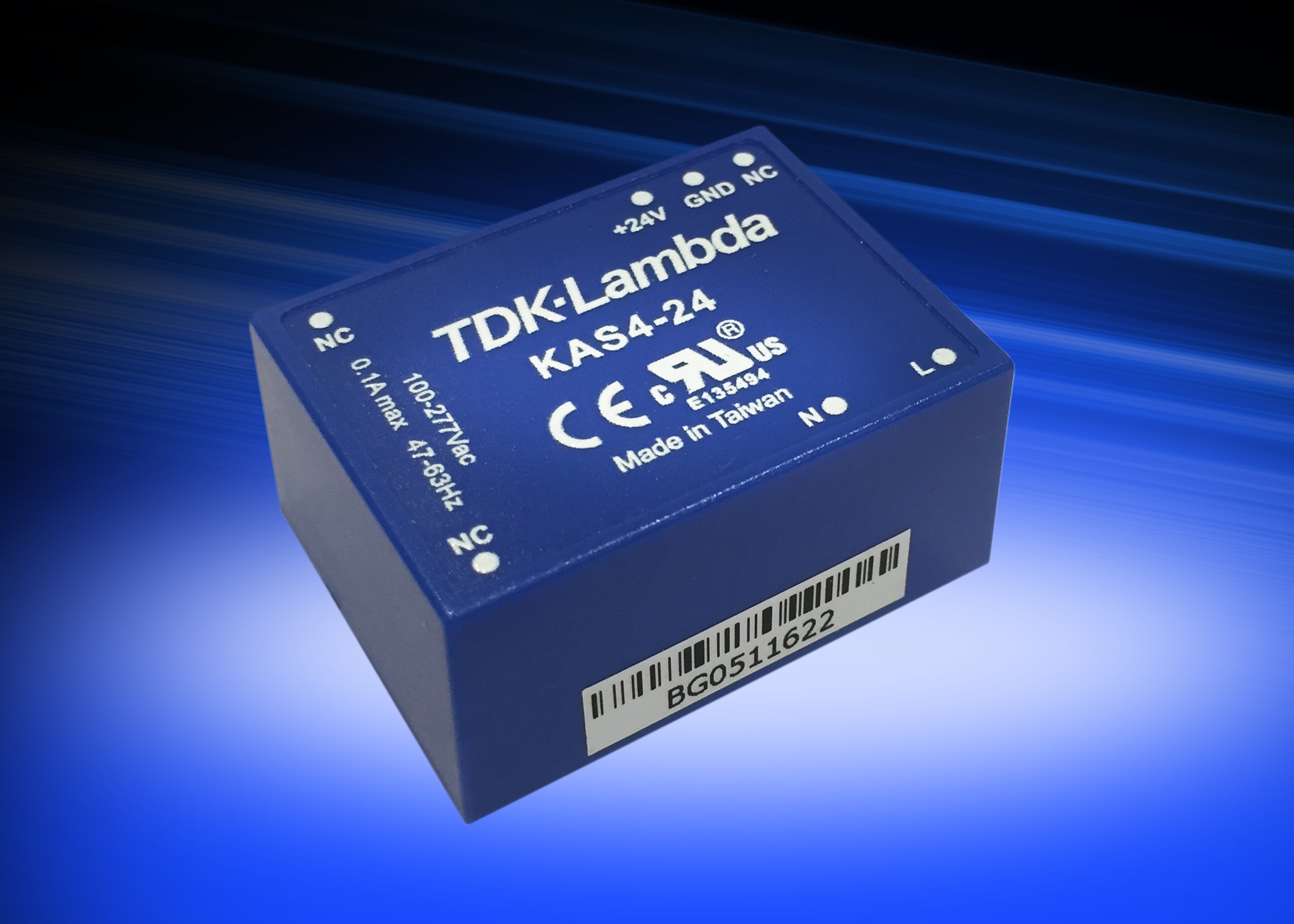

4W Wide AC-DC Input PCB Mount Power Supplies

Designed to meet the household requirements of 60335-1 the KAS series with its wide operating temperature range up to 80°C, and start-up temperature of -40°C, is suitable for both domestic and industrial applications. The encapsulated board mounted power supplies do not need a ground connection and are available in 4W power levels. The KAS series provide an off-load power consumption less than 0.3W and Class B EMC performance.

Features

90 - 305VAC Input Voltage
Class II (No ground needed)
Wide Temperature Range (-40 to +80°C)
Low off-load Power Consumption

Downloads

Datasheets & Manuals

Images & 3D Drawings

Product Range Information

Hide details

Show details

Part number	Power	Output info	Construction
KAS4-3P3	4W	3.3V / 1.2A	Enclosed pcb mount
KAS4-5	4W	5V / 0.8A	Enclosed pcb mount
KAS4-8	4W	8V / 0.5A	Enclosed pcb mount
KAS4-9	4W	9V / 0.444A	Enclosed pcb mount
KAS4-12	4W	12V / 0.333A	Enclosed pcb mount
KAS4-14	4W	14V / 0.286A	Enclosed pcb mount
KAS4-15	4W	15V / 0.267A	Enclosed pcb mount
KAS4-24	4W	24V / 4A	Enclosed pcb mount
