AC-DC Power Supplies

AC-DC Power Supplies

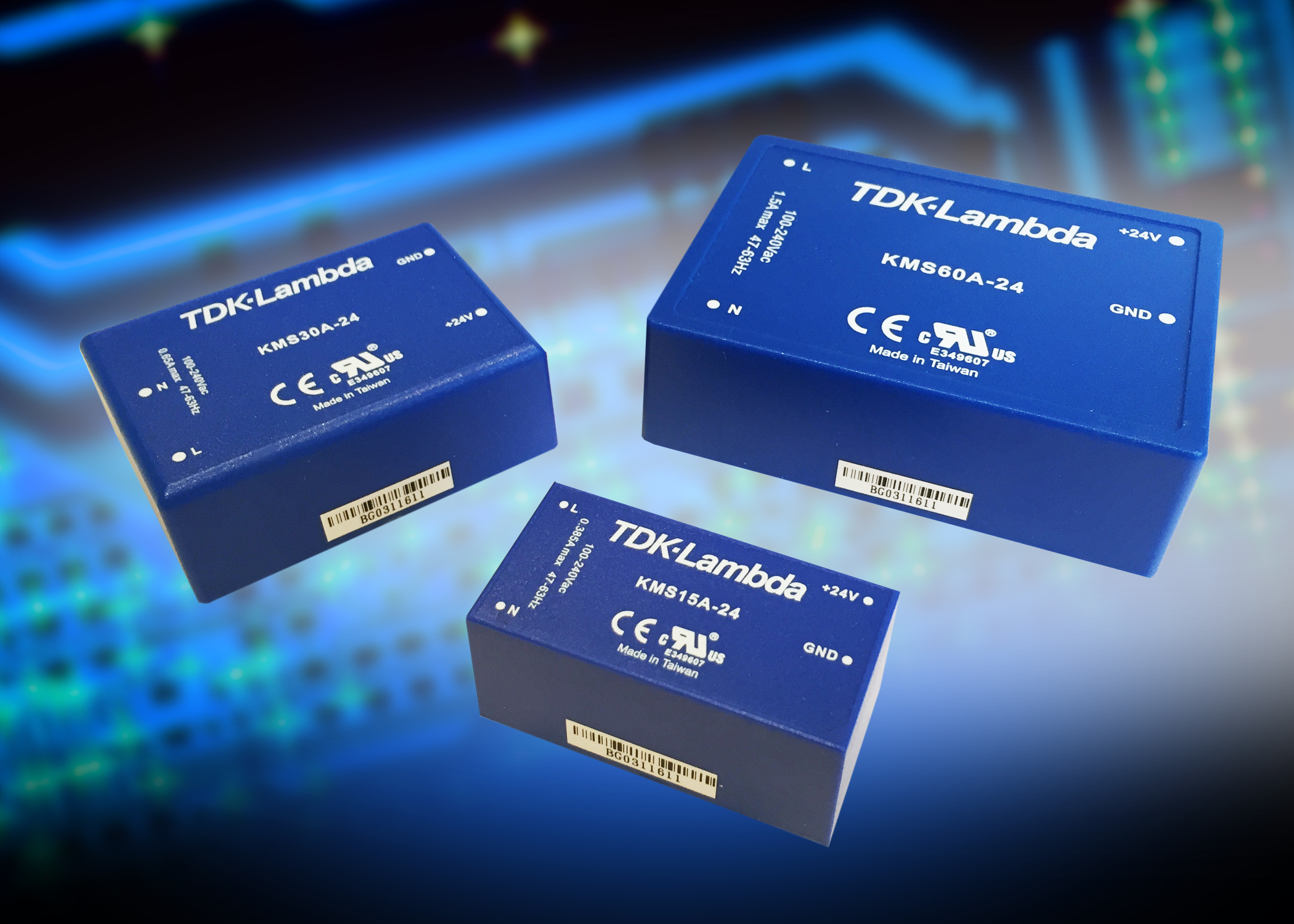

KMS-A

15-60W Medical AC-DC PCB Mount Power Supplies

Designed for medical and industrial applications that require robust, encapsulated, lightweight and compact power supplies, these sealed KMSA supplies resist dust, and humidity. The series is available in 15W, 30W and 60W power levels, with single output models covering the most common voltage combinations. The Class II double insulated construction allows the product to be operated without an earth ground connection

KMS-A

Features

  • Medical certifications at 5000m
  • I/O isolation 4KVAC, 2 x MoPP
  • Low off-load power draw
  • Class II (no ground needed)

Downloads

Product Range Information

Hide details

Show details

Part number Power Output info Construction Status Stock Level View PDF datasheet
KMS15A-5 15W 5V / 3A
Enclosed pcb mount Current product Enquire   View PDF datasheet
KMS30A-5 25W 5V / 5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
KMS60A-5 51W 5.1V / 10A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS15A-9 15W 9V / 1.666A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS60A-9 60W 9V / 6.666A
Enclosed pcb mount Current product Enquire   View PDF datasheet
KMS15A-12 15W 12V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS30A-12 30W 12V / 2.5A
Enclosed pcb mount Current product Enquire   View PDF datasheet
KMS60A-12 60W 12V / 5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS15A-15 15W 15V / 1A
Enclosed pcb mount Current product Enquire   View PDF datasheet
KMS30A-15 30W 15V / 2A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS60A-15 60W 15V / 4A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS15A-24 15W 24V / 0.625A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS30A-24 30W 24V / 1.25A
Enclosed pcb mount Current product Check stock   View PDF datasheet
KMS60A-24 60W 24V / 2.5A
Enclosed pcb mount Current product Check stock   View PDF datasheet
Key : Current product

Quick Product Finder

1
Choose number of outputs:
2
Choose power supply type:

KMS-A videos

Range Overview Video

KMS-A 15-60W Medical AC-DC PCB-Mount Power Supplies Video

KMS-A FAQ

FAQ Video

Do KMS-A power supplies have medical approvals?

FAQ Video

What operating conditions should be considered for KMS-A medical power supplies?

Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.

KMS-A Technical Downloads

Datasheets

Images & 3D Drawings

Other resources

Useful links

Not currently available

KMS-A In the TDK-Lambda Newsroom

Encapsulated Medical Power Supplies Have Class II Input
Read the article
