DRB

15-480W Single Output DIN Rail Power Supplies

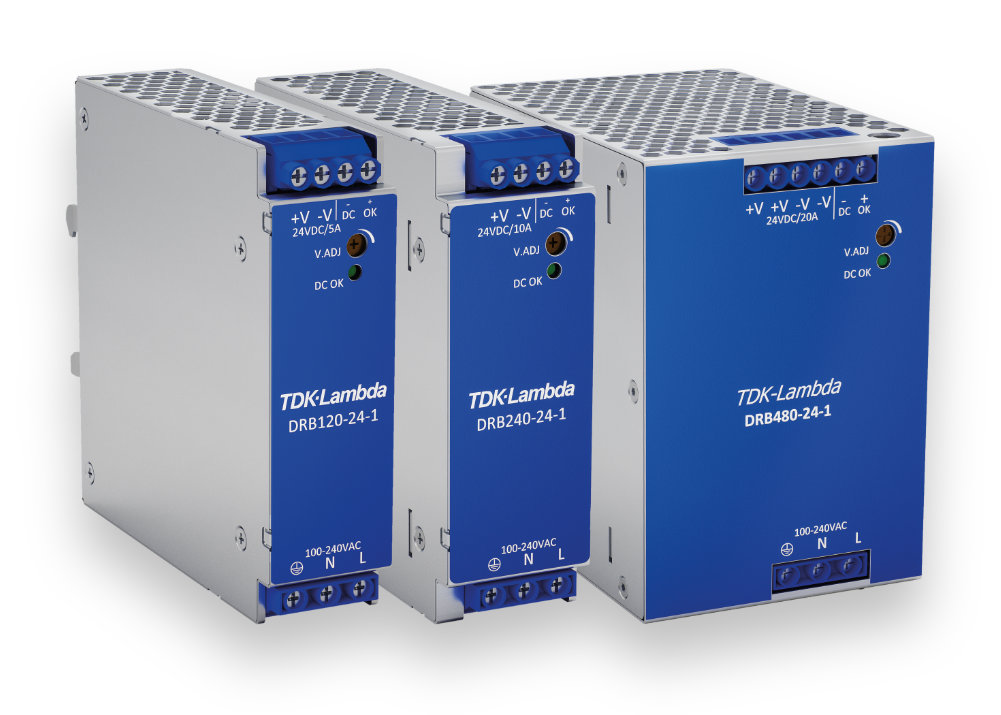

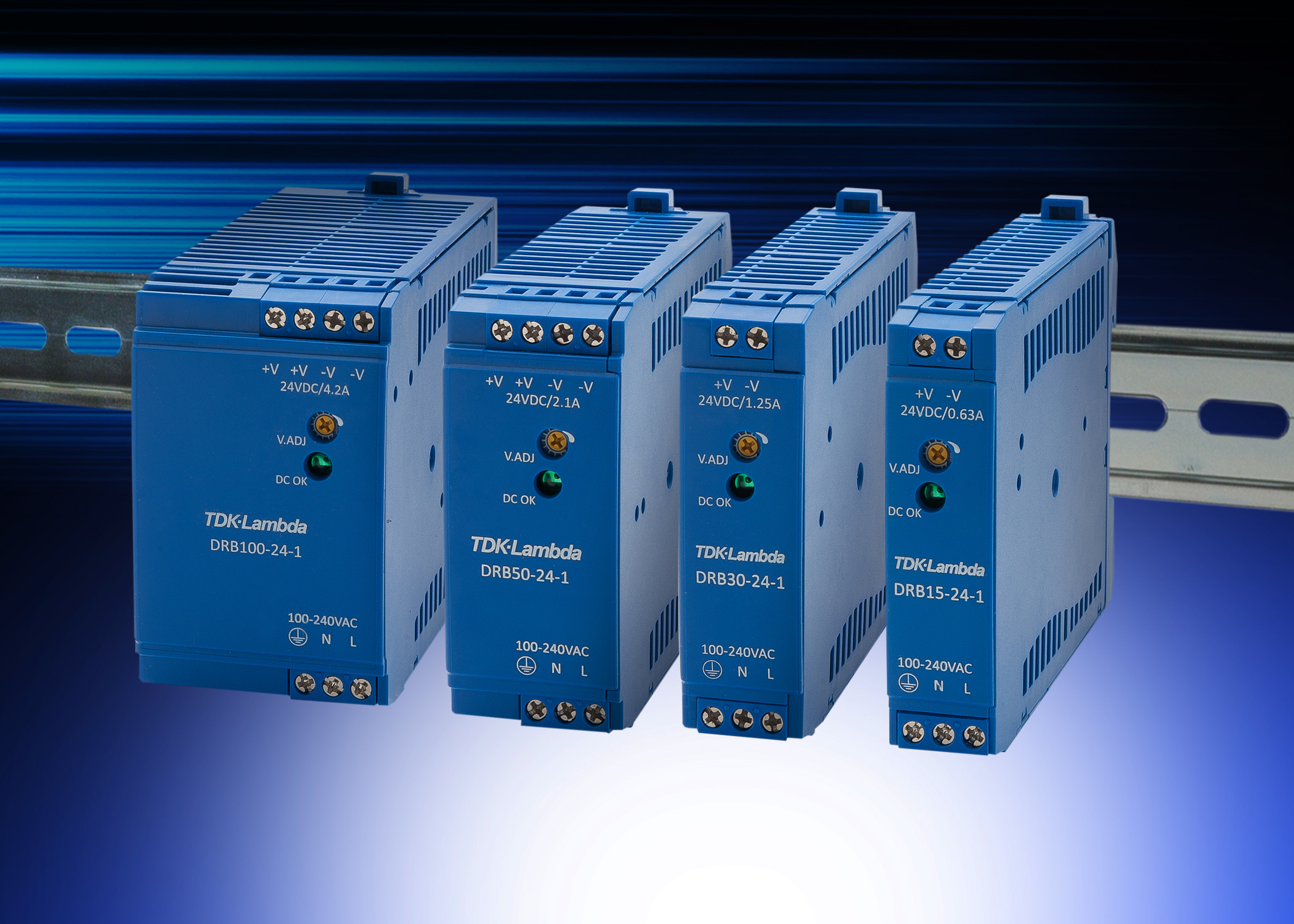

The DRB series of DIN rail power supplies offers basic functionality with IEC/EN/UL 60950-1 and UL 508 certifications for power applications up to 480W. Supporting the growing trend for simple and economic DIN power solutions in industrial and process control applications, the series combines low cost and extremely compact dimensions with efficiencies of up to 93%. From 15W to 100W the DRB supplies are housed in a robust plastic case. 100W, 120W and 480W models are housed in a robust metal enclosure.

Features

Excellent efficiency – up to 93%
Output voltages 5, 12-15, 24, 48VDC
Single phase input
15W, 30W, 50W, 100W, 120W, 240W, 480W models
3 year warranty

Downloads

Datasheets & Manuals

Images & 3D Drawings

Part number	Power	Output info	Construction	Stock Level
DRB50-5-1	30W	5V / 6A	Enclosed	Check stock
DRB30-12-1	30W	12V / 2.5A	Enclosed	Check stock
DRB50-12-1	51W	12V / 3.4A	Enclosed	Check stock
DRB120-12-1	120W	12V / 10A	Enclosed	Check stock
DRB50-15-1	51W	15V / 3.4A	Enclosed	Check stock
DRB15-24-1	15.12W	24V / 0.63A	Enclosed	Check stock
DRB30-24-1	30W	24V / 1.25A	Enclosed	Check stock
DRB50-24-1	50.4W	24V / 2.1A	Enclosed	Check stock
DRB100-24-1	100.8W	24V / 4.2A	Enclosed	Check stock
DRB120-24-1	120W	24V / 5A	Enclosed	Check stock
DRB240-24-1	240W	24V / 10A	Enclosed	Check stock
DRB480-24-1	480W	24V / 20A	Enclosed	Check stock
DRB50-48-1	50.4W	48V / 1.05A	Enclosed	Check stock
DRB120-48-1	120W	48V / 2.5A	Enclosed	Check stock
DRB240-48-1	240W	48V / 5A	Enclosed	Check stock
DRB480-48-1	480W	48V / 10A	Enclosed	Check stock
