DC-DC Converters

PXF

40W&60W DC-DC converters

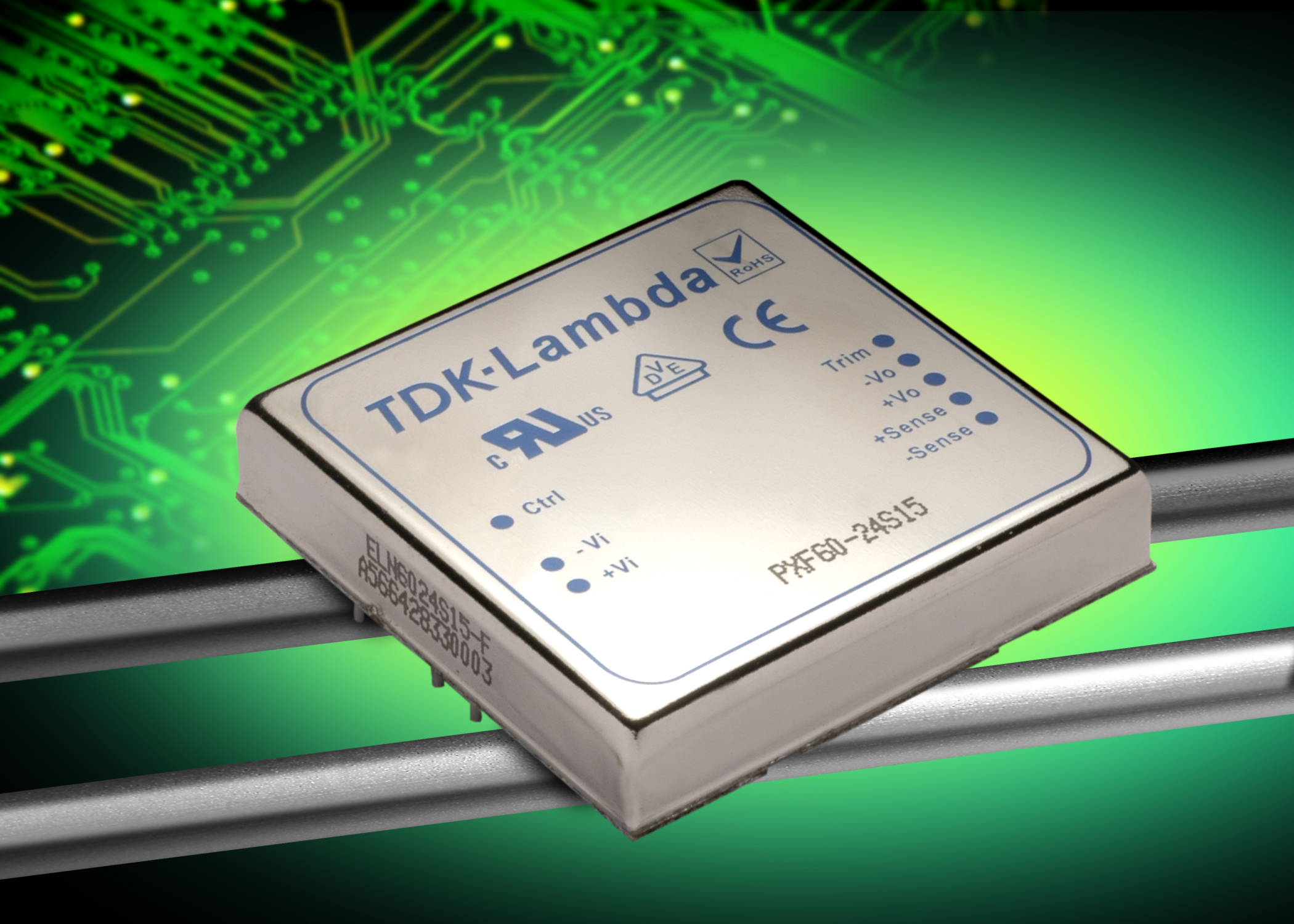

Housed in a metal case for six sided shielding, these 40 to 60W 2" x 2" footprint converters cover the commonly used nominal input voltages of 12V, 24V or 48V with either 2:1 or 4:1 versions. Both single (3.3V to 15V), dual output (5V, 12V or 15V) or triple output (3.3V to 15V) models are available with remote on/off and adjustment trim pin (single/dual models).

Features

Industry Standard 2” x 2” Footprint
Six Sided Shielding
Agency Approved
12, 24 and 48V Inputs
4:1 Wide Range Input Models

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Product Range Information

Hide details

Show details

Part number	Power	Output info	Construction
PXF40-12S3P3	24W	3V / 8A	Enclosed pcb mount
PXF40-24S3P3	24W	3V / 8A	Enclosed pcb mount
PXF40-48S3P3	24W	3V / 8A	Enclosed pcb mount
PXF40-12T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-48T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24WS3P3	33W	3.3V / 10A	Enclosed pcb mount
PXF40-48WS3P3	33W	3.3V / 10A	Enclosed pcb mount
PXF60-24S3P3	60W	3.3V / 14A	Enclosed pcb mount
PXF60-48S3P3	60W	3.3V / 14A	Enclosed pcb mount
PXF40-12T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-48T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-12S05	40W	5V / 8A	Enclosed pcb mount
PXF40-24S05	40W	5V / 8A	Enclosed pcb mount
PXF40-24WS05	40W	5V / 8A	Enclosed pcb mount
PXF40-48S05	40W	5V / 8A	Enclosed pcb mount
PXF40-48WS05	40W	5V / 8A	Enclosed pcb mount
PXF60-24S05	60W	5V / 12A	Enclosed pcb mount
PXF60-48S05	60W	5V / 12A	Enclosed pcb mount
PXF40-12T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-48T3312	29.4W	3.3V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-12T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-48T0512	40W	5V / 6A 12V / 0.4A 12V / 0.4A	Enclosed pcb mount
PXF40-24WD12	40W	12V / 1.667A 12V / 1.667A	Enclosed pcb mount
PXF40-48WD12	40W	12V / 1.667A 12V / 1.667A	Enclosed pcb mount
PXF40-12D12	40W	12V / 1.8A 12V / 1.8A	Enclosed pcb mount
PXF40-24D12	40W	12V / 1.8A 12V / 1.8A	Enclosed pcb mount
PXF40-48D12	40W	12V / 1.8A 12V / 1.8A	Enclosed pcb mount
PXF40-24WS12	40W	12V / 3.3A	Enclosed pcb mount
PXF40-24S12	39.96W	12V / 3.33A	Enclosed pcb mount
PXF40-12S12	39.996W	12V / 3.333A	Enclosed pcb mount
PXF40-48S12	39.996W	12V / 3.333A	Enclosed pcb mount
PXF40-48WS12	39.996W	12V / 3.333A	Enclosed pcb mount
PXF60-24S12	60W	12V / 5A	Enclosed pcb mount
PXF60-48S12	60W	12V / 5A	Enclosed pcb mount
PXF40-24WD15	40W	15V / 1.333A 15V / 1.333A	Enclosed pcb mount
PXF40-48WD15	40W	15V / 1.333A 15V / 1.333A	Enclosed pcb mount
PXF40-12D15	40W	15V / 1.4A 15V / 1.4A	Enclosed pcb mount
PXF40-24D15	40W	15V / 1.4A 15V / 1.4A	Enclosed pcb mount
PXF40-48D15	40W	15V / 1.4A 15V / 1.4A	Enclosed pcb mount
PXF40-48WS15	39.9W	15V / 2.66A	Enclosed pcb mount
PXF40-12S15	39.99W	15V / 2.666A	Enclosed pcb mount
PXF40-24S15	39.99W	15V / 2.666A	Enclosed pcb mount
PXF40-24WS15	39.99W	15V / 2.666A	Enclosed pcb mount
PXF40-48S15	39.99W	15V / 2.666A	Enclosed pcb mount
PXF60-24S15	60W	15V / 4A	Enclosed pcb mount
PXF60-48S15	60W	15V / 4A	Enclosed pcb mount
