DC-DC Converters
CCG

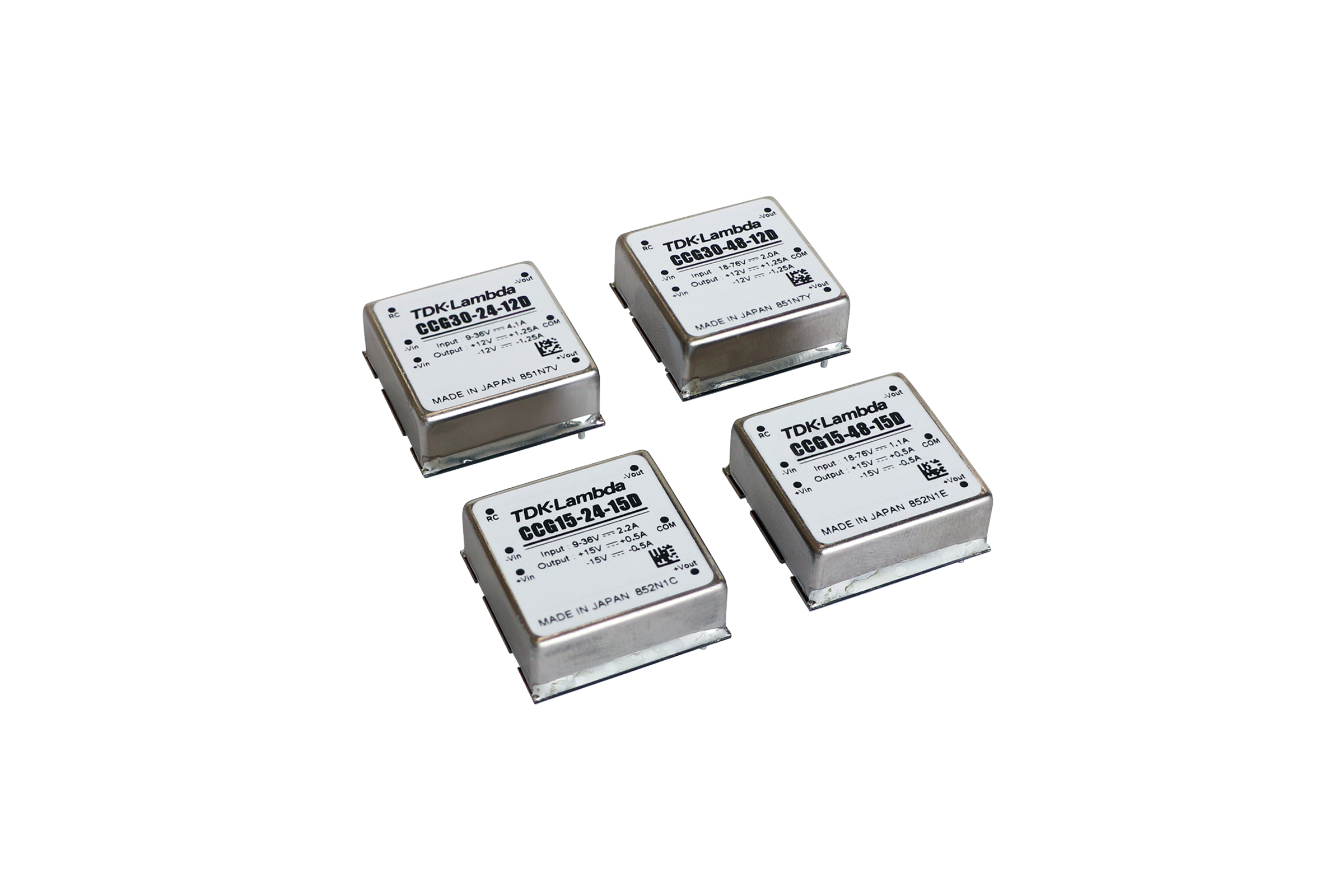

NEW MODEL 1.5 - 30W DC-DC ConvertersThe CCG1R5 (1.5W), CCG3 (3W), CCG6 (6W) and CCG10 (10W) series comprises of 36 voltage and current combinations with 3.3V, 5V, 12V, 15V and dual +/-12V and +/-15V outputs. The dual output models can also be connected to supply 24V and 30V. All can operate from either 4.5 to 18V, 9 to 36V or 18 to 76Vdc inputs to support operation from 5V, 12V, 24V and 48V power sources. This 4:1 input range can assist with inventory reduction programs with one part number covering two nominal voltages.
The 1.5W and 3W share a common compact package size of 15.7mm x 10.4mm x 11.5mm (length x width x height), and the 6W and 10W have a common 19mm x 12.4mm footprint (length x width) with a height of 11.5mm (11.8mm for the surface mount models). The plastic case is not encapsulated, avoiding quality risks associated with silicone potting compounds during reflow soldering.
The operating temperature range for the CCG1R5 to CCG10 is from -40 up to +100 oC using convection or forced air cooling with minimal derating. Over-current protection and remote on/off is standard, with a -5/+10% output voltage adjustment range on single outputs only. Input to output isolation is 1,500Vdc. Certification is to the IEC/UL/CSA/EN 62368-1 safety standards with the CE and UKCA marks for the LV and RoHS Directives.
Features
- Wide 4:1 Input Ranges
- Space Saving Package Sizes
- Certified to IEC 62368-1
- Reduced Derating at High Ambient Temperatures
- No Silicone Potting
Downloads
Datasheets & Manuals
Images & 3D Drawings
- Product Image
- CCG6, CCG10 SMD - 3D Drawings (Step file)
- CCG6, CCG10 THT - 3D Drawings (Step file)
- CCG15 - 3D Drawing (Step file)
- CCG30 - 3D Drawing (Step file)
- CCG1R5-3 F - 3D Drawing (IGES file)
- CCG1R5-3 F - 3D Drawing (Step file)
- CCG1R5-3 R - 3D Drawing (IGES file)
- CCG1R5-3 R - 3D Drawing (Step file)
Useful links
Other resources
Product Range Information
| Part number | Power (W) | Output info | Construction | Status | Stock Level | View PDF datasheet |
|---|---|---|---|---|---|---|
| CCG1R5-12-15Dx | 1.5 |
15V / 0.05A -15V / 0.05A |
Enclosed pcb mount |  |
Check stock |
|
| CCG1R5-24-15Dx | 1.5 |
15V / 0.05A -15V / 0.05A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-15Dx | 1.5 |
15V / 0.05A -15V / 0.05A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-15Dx | 3 |
15V / 0.1A -15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-15Dx | 3 |
15V / 0.1A -15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-15Dx | 3 |
15V / 0.1A -15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-15Dx | 6 |
15V / 0.2A -15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-15Dx | 6 |
15V / 0.2A -15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-15Dx | 6 |
15V / 0.2A -15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-15Dx | 10.2 |
15V / 0.42A -15V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-15Dx | 10.2 |
15V / 0.42A -15V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-15Dx | 10.2 |
15V / 0.42A -15V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-15D | 15 |
15V / 0.5A -15V / 0.5A |
Enclosed pcb mount |  |
Check stock |
|
| CCG15-48-15D | 15 |
15V / 0.5A -15V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-15D | 30 |
15V / 1A -15V / 1A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-15D | 30 |
15V / 1A -15V / 1A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-24-12Dx | 1.56 |
12V / 0.065A -12V / 0.065A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-12-12Dx | 1.56 |
12V / 0.065A -12V / 0.065A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-12Dx | 1.56 |
12V / 0.065A -12V / 0.065A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-12Dx | 3.12 |
12V / 0.13A -12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-12Dx | 3.12 |
12V / 0.13A -12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-12Dx | 3.12 |
12V / 0.13A -12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-12Dx | 6 |
12V / 0.25A -12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-12Dx | 6 |
12V / 0.25A -12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-12Dx | 6 |
12V / 0.25A -12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-12Dx | 10.08 |
12V / 0.42A -12V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-12Dx | 10.08 |
12V / 0.42A -12V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-12Dx | 10.08 |
12V / 0.42A -12V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-12D | 15.6 |
12V / 0.65A -12V / 0.65A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-12D | 15.6 |
12V / 0.65A -12V / 0.65A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-12D | 30 |
12V / 1.25A -12V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-12D | 30 |
12V / 1.25A -12V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-12-03Sx | 1.32 |
3.3V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-24-03Sx | 1.32 |
3.3V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-03Sx | 1.32 |
3.3V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-03Sx | 2.84 |
3.3V / 0.8A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-03Sx | 2.64 |
3.3V / 0.8A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-03Sx | 2.64 |
3.3V / 0.8A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-03Sx | 5.28 |
3.3V / 1.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-03Sx | 5.28 |
3.3V / 1.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-03Sx | 5.28 |
3.3V / 1.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-03Sx | 8.58 |
3.3V / 2.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-03Sx | 8.58 |
3.3V / 2.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-03Sx | 8.58 |
3.3V / 2.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-03S | 13.2 |
3.3V / 4A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-03S | 13.2 |
3.3V / 4A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-03S | 23.1 |
3.3V / 7A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-03S | 23.1 |
3.3V / 7A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-12-05Sx | 1.5 |
5V / 0.3A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-05Sx | 1.5 |
5V / 0.3A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-05Sx | 3 |
5V / 0.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-05Sx | 3 |
5V / 0.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-05Sx | 3 |
5V / 0.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-05Sx | 3 |
5V / 0.6A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-05Sx | 6 |
5V / 1.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-05Sx | 6 |
5V / 1.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-05Sx | 6 |
5V / 1.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-05Sx | 10 |
5V / 2A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-05Sx | 10 |
5V / 2A |
1U Rack | |
Check stock |
|
| CCG10-48-05Sx | 10 |
5V / 2A |
1U Rack | |
Check stock |
|
| CCG15-24-05S | 15 |
5V / 3A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-05S | 15 |
5V / 3A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-05S | 30 |
5V / 6A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-05S | 30 |
5V / 6A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-12-12Sx | 1.56 |
12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-24-12Sx | 1.56 |
12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-12Sx | 1.56 |
12V / 0.13A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-12Sx | 3 |
12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-12Sx | 3 |
12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-12Sx | 3 |
12V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-12Sx | 6 |
12V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-12Sx | 6 |
12V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-12Sx | 6 |
12V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-12Sx | 10.8 |
12V / 0.9A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-12Sx | 10.8 |
12V / 0.9A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-12Sx | 10.8 |
12V / 0.9A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-12S | 15.6 |
12V / 1.3A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-12S | 15.6 |
12V / 1.3A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-12S | 30 |
12V / 2.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-12S | 30 |
12V / 2.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-12-15Sx | 1.5 |
15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-24-15Sx | 1.5 |
15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG1R5-48-15Sx | 1.5 |
15V / 0.1A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-12-15Sx | 3 |
15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-24-15Sx | 3 |
15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG3-48-15Sx | 3 |
15V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-15Sx | 6 |
15V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-15Sx | 6 |
15V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-15Sx | 6 |
15V / 0.4A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-15Sx | 10.5 |
15V / 0.7A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-15Sx | 10.5 |
15V / 0.7A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-15Sx | 10.5 |
15V / 0.7A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-15S | 15 |
15V / 1A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-15S | 15 |
15V / 1A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-15S | 30 |
15V / 2A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-15S | 30 |
15V / 2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-12Dx | 6 |
24V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-12Dx | 6 |
24V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-12Dx | 6 |
24V / 0.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-12Dx | 10.08 |
24V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-12Dx | 10.08 |
24V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-12Dx | 10.08 |
24V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-12D | 15.6 |
24V / 0.65A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-12D | 15.6 |
24V / 0.65A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-12D | 30 |
24V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-12D | 30 |
24V / 1.25A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-15Dx | 6 |
30V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-12-15Dx | 6 |
30V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-24-15Dx | 6 |
30V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG6-48-15Dx | 6 |
30V / 0.2A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-12-15Dx | 10.2 |
30V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-24-15Dx | 10.2 |
30V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG10-48-15Dx | 10.2 |
30V / 0.42A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-24-15D | 15 |
30V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG15-48-15D | 15 |
30V / 0.5A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-24-15D | 30 |
30V / 1A |
Enclosed pcb mount | |
Check stock |
|
| CCG30-48-15D | 30 |
30V / 1A |
Enclosed pcb mount | |
Check stock |
|
Key :
New productCurrent product
Quick Product Finder
CCG videos
Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.
CCG Technical Downloads
Datasheets
Images & 3D Drawings
- Product Image NEW
- CCG6, CCG10 SMD - 3D Drawings (Step file) NEW
- CCG6, CCG10 THT - 3D Drawings (Step file) NEW
- CCG15 - 3D Drawing (Step file) NEW
- CCG30 - 3D Drawing (Step file)
- CCG1R5-3 F - 3D Drawing (IGES file)
- CCG1R5-3 F - 3D Drawing (Step file)
- CCG1R5-3 R - 3D Drawing (IGES file)
- CCG1R5-3 R - 3D Drawing (Step file)
Other resources
CCG In the TDK-Lambda Newsroom
DC-DC converter series expanded with 6W and 10W surface mount and through-hole models
Read the article
4:1 input range 1.5 to 3W DC-DC converters operate at 100% load in +85°C ambient temperatures without airflow
Read the article
Wide range input 1” x 1” 15W and 30W dual output DC-DC converters have six-sided shielding
Read the article
15W 1x1 inch DC-DC converters have six-sided shielding
Read the article
Wide range input DC-DC converters deliver 30W in a 1 x 1 inch footprint
Read the article
