DC-DC Converters

PXD

Isolated PCB mount DC-DC converters

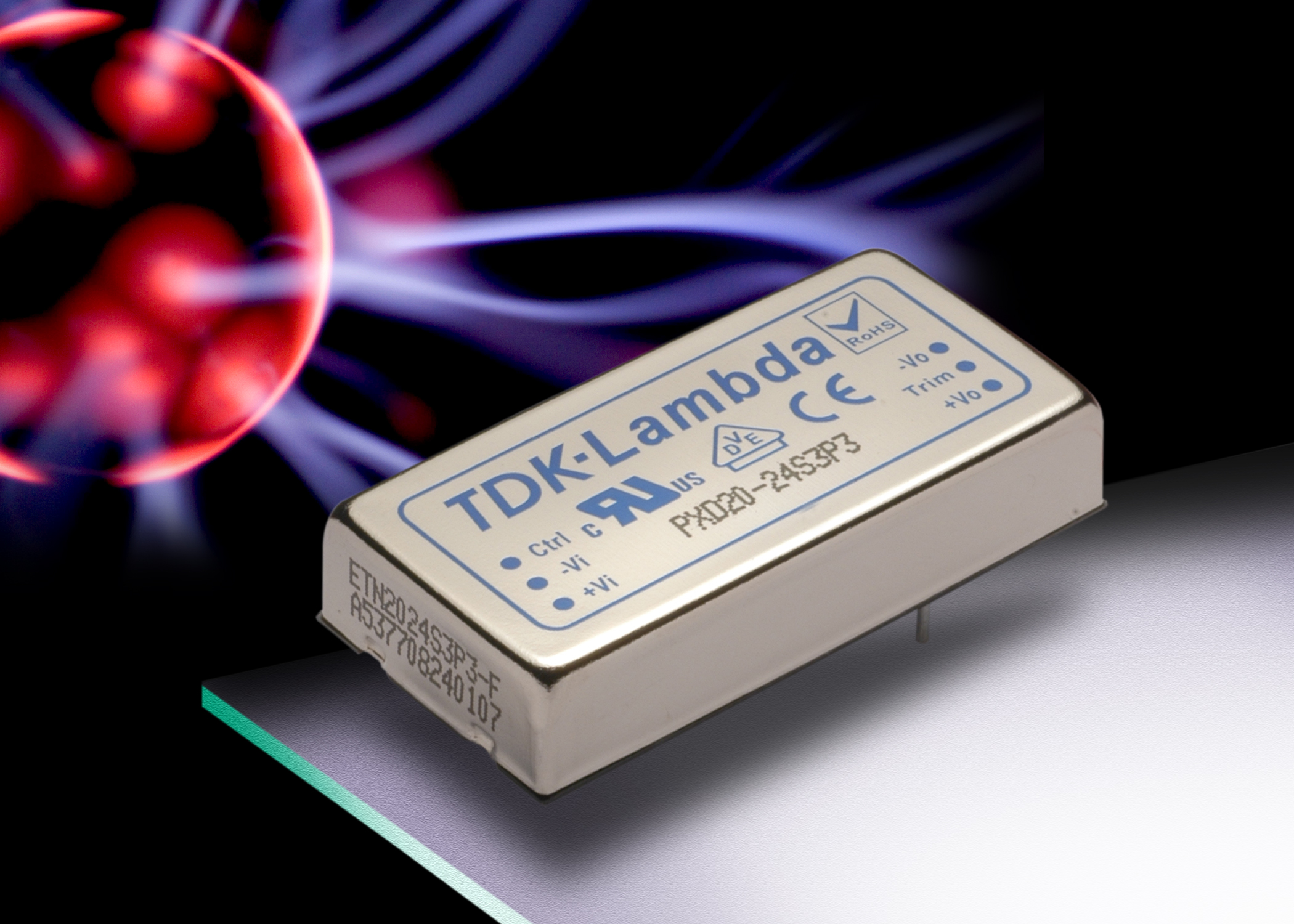

Housed in a metal case for six sided shielding, these 10 to 60W 2" x 1" footprint converters cover the commonly used nominal input voltages of 12V, 24V or 48V with either 2:1 or 4:1 versions. Both single (3.3V to 48V) and dual output (±5V, ±12V or ±15V) models are available with a choice of positive or negative remote on/off and optional adjustment trim pin.

Features

Industry Standard Footprint
Six Sided Shielding
Agency Approved
12V, 24V, and 48V Inputs

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Other resources

Product Range Information

Hide details

Show details

Part number	Power	Output info	Construction	Stock Level
PXD10-12S3P3	6.6W	3.3V / 2A	Enclosed pcb mount	Check stock
PXD10-24S3P3	6.6W	3.3V / 2A	Enclosed pcb mount	Check stock
PXD10-48S3P3	6.6W	3.3V / 2A	Enclosed pcb mount	Check stock
PXD20-12S3P3	16.5W	3.3V / 5A	Enclosed pcb mount	Check stock
PXD20-24S3P3	16.5W	3.3V / 5A	Enclosed pcb mount	Check stock
PXD20-48S3P3	16.5W	3.3V / 5A	Enclosed pcb mount	Check stock
PXD30-24WS3P3	24.75W	3.3V / 7.5A	Enclosed pcb mount	Check stock
PXD30-48WS3P3	24.75W	3.3V / 7.5A	Enclosed pcb mount	Check stock
PXD60-24WS3P3	60W	3.3V / 12A	Enclosed pcb mount	Check stock
PXD60-48WS3P3	60W	3.3V / 12A	Enclosed pcb mount	Check stock
PXD40-24WS3P3	40W	3.3V / 12.2A	Enclosed pcb mount	Check stock
PXD40-48WS3P3	40W	3.3V / 12.2A	Enclosed pcb mount	Check stock
PXD30-24WD05	30W	5V / 3A -5V / -3000mA	Enclosed pcb mount	Check stock
PXD30-48WD05	30W	5V / 3A -5V / -3000mA	Enclosed pcb mount	Check stock
PXD15-12D05	15W	5V / 1.5A -5V / -1500mA	Enclosed pcb mount	Check stock
PXD15-24D05	15W	5V / 1.5A -5V / -1500mA	Enclosed pcb mount	Check stock
PXD15-48D05	15W	5V / 1.5A -5V / -1500mA	Enclosed pcb mount	Check stock
PXD10-24WS05	10W	5V / 2A	Enclosed pcb mount	Check stock
PXD10-48WS05	10W	5V / 2A	Enclosed pcb mount	Check stock
PXD20-12S05	20W	5V / 4A	Enclosed pcb mount	Check stock
PXD20-24S05	20W	5V / 4A	Enclosed pcb mount	Check stock
PXD20-48S05	20W	5V / 4A	Enclosed pcb mount	Check stock
PXD30-24WS05	30W	5V / 6A	Enclosed pcb mount	Check stock
PXD30-48WS05	30W	5V / 6A	Enclosed pcb mount	Check stock
PXD40-24WS05	40W	5V / 8A	Enclosed pcb mount	Check stock
PXD40-48WS05	40W	5V / 8A	Enclosed pcb mount	Check stock
PXD60-24WS05	60W	5V / 12A	Enclosed pcb mount	Check stock
PXD60-48WS05	60W	5V / 12A	Enclosed pcb mount	Check stock
PXD60-24WD12	60W	12V / 2.5A -12V / -2500mA	Enclosed pcb mount	Check stock
PXD60-48WD12	60W	12V / 2.5A -12V / -2500mA	Enclosed pcb mount	Check stock
PXD40-24WD12	40W	12V / 1.67A -12V / -1670mA	Enclosed pcb mount	Check stock
PXD40-48WD12	40W	12V / 1.67A -12V / -1670mA	Enclosed pcb mount	Check stock
PXD30-24WD12	30W	12V / 1.25A -12V / -1250mA	Enclosed pcb mount	Check stock
PXD30-48WD12	30W	12V / 1.25A -12V / -1250mA	Enclosed pcb mount	Check stock
PXD20-12D12	20W	12V / 0.833A -12V / -833mA	Enclosed pcb mount	Check stock
PXD20-48D12	20W	12V / 0.833A -12V / -833mA	Enclosed pcb mount	Check stock
PXD10-24WD12	10W	12V / 0.416A -12V / -416mA	Enclosed pcb mount	Check stock
PXD10-48WD12	10W	12V / 0.416A -12V / -416mA	Enclosed pcb mount	Check stock
PXD10-24WS12	9.96W	12V / 0.83A	Enclosed pcb mount	Check stock
PXD10-48WS12	9.96W	12V / 0.83A	Enclosed pcb mount	Check stock
PXD20-24D12	20W	12V / 0.833A 12V / 0.833A	Enclosed pcb mount	Check stock
PXD20-12S12	20.04W	12V / 1.67A	Enclosed pcb mount	Check stock
PXD20-24S12	20.04W	12V / 1.67A	Enclosed pcb mount	Check stock
PXD20-48S12	20.04W	12V / 1.67A	Enclosed pcb mount	Check stock
PXD30-24WS12	30W	12V / 2.5A	Enclosed pcb mount	Check stock
PXD30-48WS12	30W	12V / 2.5A	Enclosed pcb mount	Check stock
PXD40-24WS12	40W	12V / 3.3A	Enclosed pcb mount	Check stock
PXD40-48WS12	40W	12V / 3.33A	Enclosed pcb mount	Check stock
PXD60-24WS12	60W	12V / 5A	Enclosed pcb mount	Check stock
PXD60-48WS12	60W	12V / 5A	Enclosed pcb mount	Check stock
PXD60-24WD15	60W	15V / 2A -15V / -2000mA	Enclosed pcb mount	Check stock
PXD60-48WD15	60W	15V / 2A -15V / -2000mA	Enclosed pcb mount	Check stock
PXD40-24WD15	40W	15V / 1.33A -15V / -1330mA	Enclosed pcb mount	Check stock
PXD40-48WD15	40W	15V / 1.33A -15V / -1330mA	Enclosed pcb mount	Check stock
PXD30-24WD15	30W	15V / 1A -15V / -1000mA	Enclosed pcb mount	Check stock
PXD30-48WD15	30W	15V / -1000mA -15V / -1000mA	Enclosed pcb mount	Check stock
PXD20-12D15	20W	15V / 0.667A -15V / -667mA	Enclosed pcb mount	Check stock
PXD20-48D15	20W	15V / 0.667A -15V / -667mA	Enclosed pcb mount	Check stock
PXD10-24WD15	10W	15V / 0.333A -15V / -333mA	Enclosed pcb mount	Check stock
PXD10-48WD15	10W	15V / 0.333A 15V / 0.333A	Enclosed pcb mount	Check stock
PXD20-24D15	20W	15V / 0.667A 15V / 0.667A	Enclosed pcb mount	Check stock
PXD10-24WS15	10.05W	15V / 0.67A	Enclosed pcb mount	Check stock
PXD10-48WS15	10.05W	15V / 0.67A	Enclosed pcb mount	Check stock
PXD20-12S15	19.95W	15V / 1.33A	Enclosed pcb mount	Check stock
PXD20-24S15	19.95W	15V / 1.33A	Enclosed pcb mount	Check stock
PXD20-48S15	19.95W	15V / 1.33A	Enclosed pcb mount	Check stock
PXD30-24WS15	30W	15V / 2A	Enclosed pcb mount	Check stock
PXD30-48WS15	30W	15V / 2A	Enclosed pcb mount	Check stock
PXD40-24WS15	40W	15V / 2.67A	Enclosed pcb mount	Check stock
PXD40-48WS15	40W	15V / 2.67A	Enclosed pcb mount	Check stock
PXD60-24WS15	60W	15V / 4A	Enclosed pcb mount	Check stock
PXD60-48WS15	60W	15V / 4A	Enclosed pcb mount	Check stock
PXD60-24WD24	60W	24V / 1.25A -24V / -1250mA	Enclosed pcb mount	Check stock
PXD60-48WD24	60W	24V / 1.25A -24V / -1250mA	Enclosed pcb mount	Check stock
PXD40-24WD24	40W	24V / 0.83A -24V / -830mA	Enclosed pcb mount	Check stock
PXD40-48WD24	40W	24V / 0.83A -24V / -830mA	Enclosed pcb mount	Check stock
PXD40-24WS24	40W	24V / 1.67A	Enclosed pcb mount	Check stock
PXD40-48WS24	40W	24V / 1.67A	Enclosed pcb mount	Check stock
PXD60-24WS24	60W	24V / 2.5A	Enclosed pcb mount	Check stock
PXD60-48WS24	60W	24V / 2.5A	Enclosed pcb mount	Check stock
PXD40-24WS48	40W	48V / 0.83A	Enclosed pcb mount	Check stock
PXD40-48WS48	40W	48V / 0.83A	Enclosed pcb mount	Check stock
