Please note: This product has reached end of life. You can use our Quick Product Finder to locate an alternative.
AC-DC Power Supplies

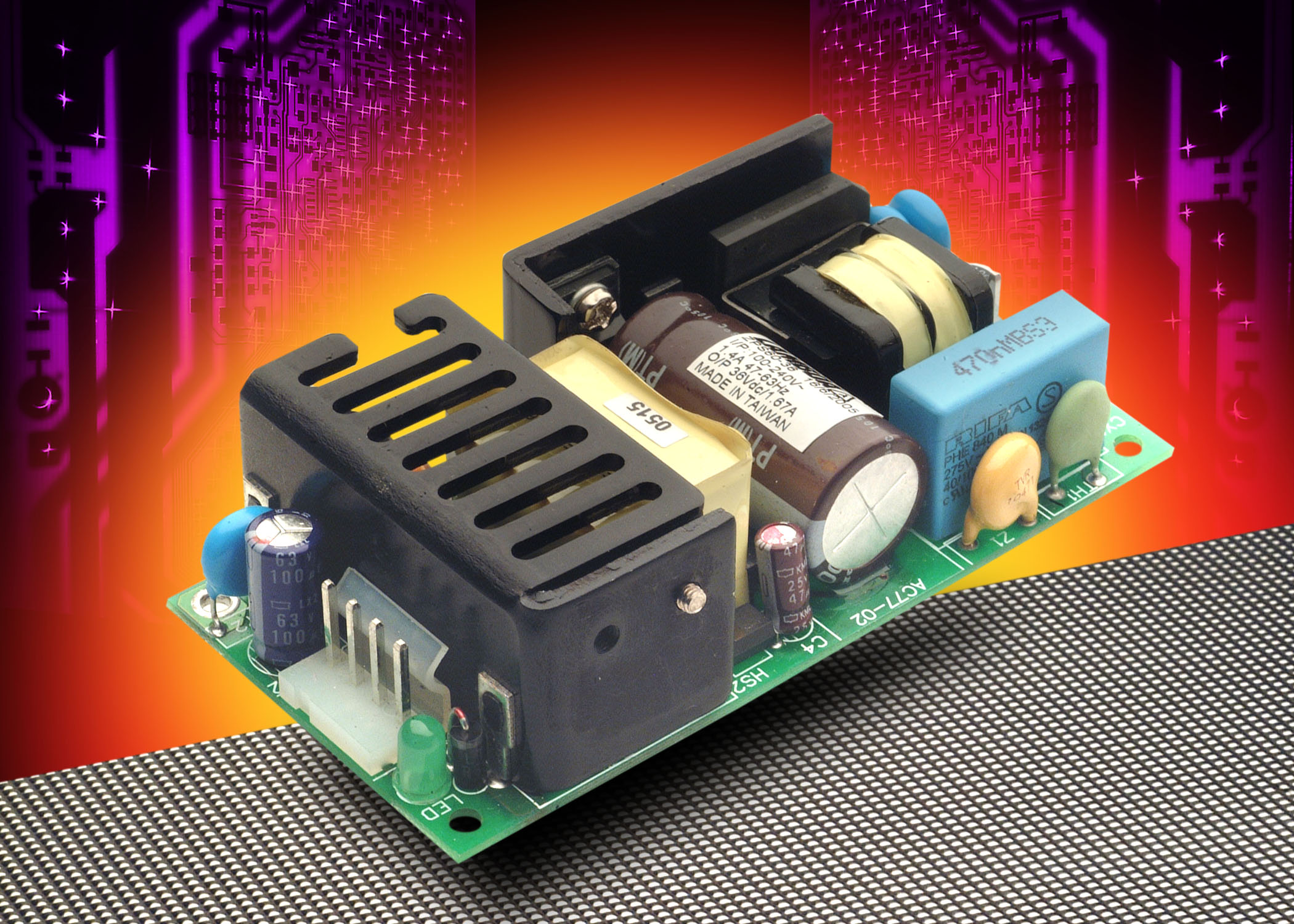

ZPD / ZPT

Low Profile AC-DC Power supplies

The ZP series is available in two form factors; the 20W rated single output models utilises the industry standard 2" x 3.5" footprint, whereas the ZPS/D/T40 and ZPS60 have the widely used 2" x 4" size. Single output models are available with the most popular output voltages from 3.3V to 48VDC, and multiple output versions have a 5V main and a combination of 5V to 24V auxiliaries. All models are convection cooled and are certified to the IEC/EN/UL 62368-1 standard.

ZPD / ZPT

Features

  • Single & Multiple Outputs
  • Wide Range AC Input
  • Low Profile, Industry Standard Footprint
  • Global Safety Agency Compliance

Downloads

Product Range Information

Hide details

Show details

Part number Power (W) Output info Construction Status Datasheet
ZPT40-51515N 40 5V / 3.2A
15V / 1.5A
-15V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-3512N 23 3.3V / 5A
5V / 2A
-12V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-51212N 40 5V / 3.2A
12V / 2A
-12V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-52412N 40 5V / 3.2A
24V / 1A
-12V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-5245N 40 5V / 3.2A
24V / 1A
-5V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-5125N 40 5V / 3.2A
12V / 2A
5V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPT40-52412P 40 5V / 3.2A
24V / 1A
12V / 0.3A
Open Frame pcb Discontinued product   Datasheet
ZPD40-524 40 5V / 3.2A
24V / 1A
Open Frame pcb Discontinued product   Datasheet
ZPD40-512 40 5V / 3.2A
12V / 2A
Open Frame pcb Discontinued product   Datasheet
Key : Discontinued product
