TPF12500

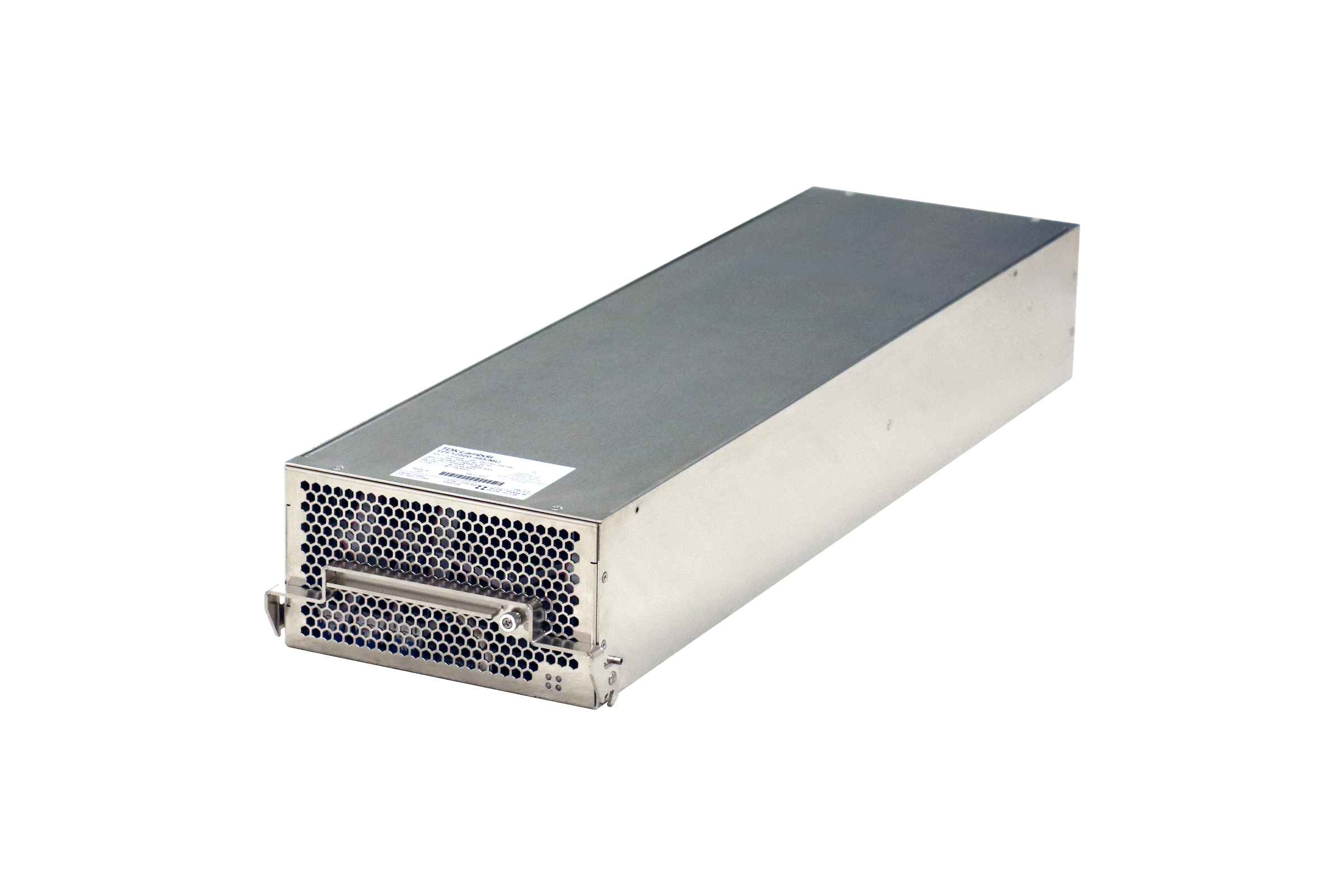

NEW 12.5kW 3-Phase Input Non-isolated 385Vdc Power Supplies

The TPF12500-385 non-isolated modular power supply delivers up to 13.1kW of output power and accepts 400, 440, or 480Vac three-phase Delta or Wye inputs.

Providing a regulated 385Vdc output, it is ideally suited as a high-voltage source for isolated DC-DC converters in distributed power architecture systems.

With an operating efficiency of up to 97.5%, waste heat generation is significantly reduced, eliminating the need for water cooling in many applications.

An RS-485 interface is available for monitoring and control.

Features

Delivers up to 13.1kW of regulated 385Vdc power from 400/440/480Vac three-phase Delta or Wye inputs.
Achieves up to 97.5% efficiency to reduce energy consumption and waste heat.
Includes an RS-485 interface for flexible monitoring and control.
Supports global installation requirements with worldwide input voltage compatibility.
