DC-DC Converters

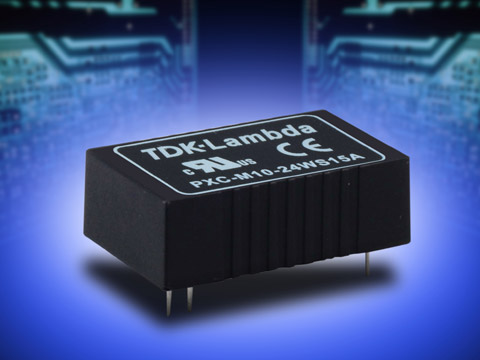

PXC-M
3W, 6W & 10W Medical Isolated DC-DC ConvertersMedically certified to the IEC 60601-1 standards, the PXC-M is housed in the industry standard DIP-24 package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXC-M series is available with output voltages of 3.3, 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability.
Features
- 60601-1 approval
- I/O isolation 5kVAC, 2MOPP
- 0.25μA low patient leakage
- 4:1 Wide input range
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | Datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| PXC-M03-24WS3P3 | 3.3W |
3.3Vdc / 1Adc |
Enclosed pcb mount |  |
Enquire |
|
|
| PXC-M03-48WS3P3 | 3.3W |
3.3Vdc / 1Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M06-24WS3P3 | 5.9W |
3.3Vdc / 1.8Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-24WS3P3 | 8.3W |
3.3Vdc / 2.5Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-48WS3P3 | 8.3W |
3.3Vdc / 2.5Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-24WD05 | 10W |
5Vdc / 1Adc -5Vdc / -1000mAdc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-48WD05 | 10W |
5Vdc / 1Adc -5Vdc / -1000mAdc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M03-24WD05 | 3W |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M03-48WD05 | 3W |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M06-24WD05 | 6W |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M06-48WD05 | 6W |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M03-24WS05 | 3W |
5Vdc / 0.6Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-48WS05 | 3W |
5Vdc / 0.6Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WS05 | 6W |
5Vdc / 1.2Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-48WS05 | 6W |
5Vdc / 1.2Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-24WS05 | 10W |
5Vdc / 2Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-48WS05 | 10W |
5Vdc / 2Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-24WD12 | 10W |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-48WD12 | 10W |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WD12 | 6W |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-48WD12 | 6W |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-48WD12 | 3W |
12Vdc / -125mAdc -12Vdc / 0.125Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-24WD12 | 3W |
12Vdc / 0.125Adc -12Vdc / 0.125Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-24WS12 | 3W |
12Vdc / 0.25Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-48WS12 | 3W |
12Vdc / 0.25Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WS12 | 6W |
12Vdc / 0.5Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-48WS12 | 6W |
12Vdc / 0.5Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-24WS12 | 10W |
12Vdc / 0.83Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-48WS12 | 10W |
12Vdc / 0.83Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-48WD15 | 10W |
15Vdc / 0.333Adc -15Vdc / -333mAdc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M10-24WD15 | 10W |
15Vdc / 0.33Adc -15Vdc / -330mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WD15 | 6W |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-48WD15 | 6W |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-24WD15 | 3W |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-48WD15 | 3W |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-24WS15 | 3W |
15Vdc / 0.2Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M03-48WS15 | 3W |
15Vdc / 0.2Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WS15 | 6W |
15Vdc / 0.4Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M06-48WS15 | 6W |
15Vdc / 0.4Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-24WS15 | 10.1W |
15Vdc / 0.67Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-48WS15 | 10.1W |
15Vdc / 0.67Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M03-24WS24 | 3W |
24Vdc / 0.125Adc |
Enclosed pcb mount | |
Enquire |
|
|
| PXC-M03-48WS24 | 3W |
24Vdc / 0.125Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-24WS24 | 6W |
24Vdc / 0.25Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M06-48WS24 | 6W |
24Vdc / 0.25Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-24WS24 | 10W |
24Vdc / 0.416Adc |
Enclosed pcb mount | |
Check stock |
|
|
| PXC-M10-48WS24 | 10W |
24Vdc / 0.416Adc |
Enclosed pcb mount | |
Enquire |
|
| Part number | |
|---|---|
| PXC-M03-24WS3P3 | |
| Power | 3.3W |
| Output info |
3.3Vdc / 1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WS3P3 | |
| Power | 3.3W |
| Output info |
3.3Vdc / 1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WS3P3 | |
| Power | 5.9W |
| Output info |
3.3Vdc / 1.8Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WS3P3 | |
| Power | 8.3W |
| Output info |
3.3Vdc / 2.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WS3P3 | |
| Power | 8.3W |
| Output info |
3.3Vdc / 2.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WD05 | |
| Power | 10W |
| Output info |
5Vdc / 1Adc -5Vdc / -1000mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WD05 | |
| Power | 10W |
| Output info |
5Vdc / 1Adc -5Vdc / -1000mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WD05 | |
| Power | 3W |
| Output info |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WD05 | |
| Power | 3W |
| Output info |
5Vdc / 0.3Adc -5Vdc / 0.3Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WD05 | |
| Power | 6W |
| Output info |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WD05 | |
| Power | 6W |
| Output info |
5Vdc / 0.6Adc -5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WS05 | |
| Power | 3W |
| Output info |
5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WS05 | |
| Power | 3W |
| Output info |
5Vdc / 0.6Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WS05 | |
| Power | 6W |
| Output info |
5Vdc / 1.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WS05 | |
| Power | 6W |
| Output info |
5Vdc / 1.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WS05 | |
| Power | 10W |
| Output info |
5Vdc / 2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WS05 | |
| Power | 10W |
| Output info |
5Vdc / 2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WD12 | |
| Power | 10W |
| Output info |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WD12 | |
| Power | 10W |
| Output info |
12Vdc / 0.416Adc -12Vdc / -416mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WD12 | |
| Power | 6W |
| Output info |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WD12 | |
| Power | 6W |
| Output info |
12Vdc / 0.25Adc -12Vdc / -250mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WD12 | |
| Power | 3W |
| Output info |
12Vdc / -125mAdc -12Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WD12 | |
| Power | 3W |
| Output info |
12Vdc / 0.125Adc -12Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WS12 | |
| Power | 3W |
| Output info |
12Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WS12 | |
| Power | 3W |
| Output info |
12Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WS12 | |
| Power | 6W |
| Output info |
12Vdc / 0.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WS12 | |
| Power | 6W |
| Output info |
12Vdc / 0.5Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WS12 | |
| Power | 10W |
| Output info |
12Vdc / 0.83Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WS12 | |
| Power | 10W |
| Output info |
12Vdc / 0.83Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WD15 | |
| Power | 10W |
| Output info |
15Vdc / 0.333Adc -15Vdc / -333mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WD15 | |
| Power | 10W |
| Output info |
15Vdc / 0.33Adc -15Vdc / -330mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WD15 | |
| Power | 6W |
| Output info |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WD15 | |
| Power | 6W |
| Output info |
15Vdc / 0.2Adc -15Vdc / -200mAdc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WD15 | |
| Power | 3W |
| Output info |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WD15 | |
| Power | 3W |
| Output info |
15Vdc / 0.1Adc -15Vdc / 0.1Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WS15 | |
| Power | 3W |
| Output info |
15Vdc / 0.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WS15 | |
| Power | 3W |
| Output info |
15Vdc / 0.2Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WS15 | |
| Power | 6W |
| Output info |
15Vdc / 0.4Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WS15 | |
| Power | 6W |
| Output info |
15Vdc / 0.4Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WS15 | |
| Power | 10.1W |
| Output info |
15Vdc / 0.67Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WS15 | |
| Power | 10.1W |
| Output info |
15Vdc / 0.67Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-24WS24 | |
| Power | 3W |
| Output info |
24Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
| PXC-M03-48WS24 | |
| Power | 3W |
| Output info |
24Vdc / 0.125Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-24WS24 | |
| Power | 6W |
| Output info |
24Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M06-48WS24 | |
| Power | 6W |
| Output info |
24Vdc / 0.25Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-24WS24 | |
| Power | 10W |
| Output info |
24Vdc / 0.416Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Check stock |
| Datasheet |
|
| Request quote / sample | |
| PXC-M10-48WS24 | |
| Power | 10W |
| Output info |
24Vdc / 0.416Adc |
| Construction | Enclosed pcb mount |
| Status |
|
| Stock Level | Enquire |
| Datasheet |
|
| Request quote / sample | |
Key :
Current product
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
Quick Product Finder
Try our Quick Product Finder
Choose your power supply type to begin:PXC-M Technical Downloads
Datasheets
Manuals
Images & 3D Drawings
Other resources
Not currently availableUseful links
PXC-M In the TDK-Lambda Newsroom
Medically Certified Low Power DC-DC Converters have 4:1 Input Range
Read the article
