iCG
6A Non-isolated SMT DOSA 2 POL Converters

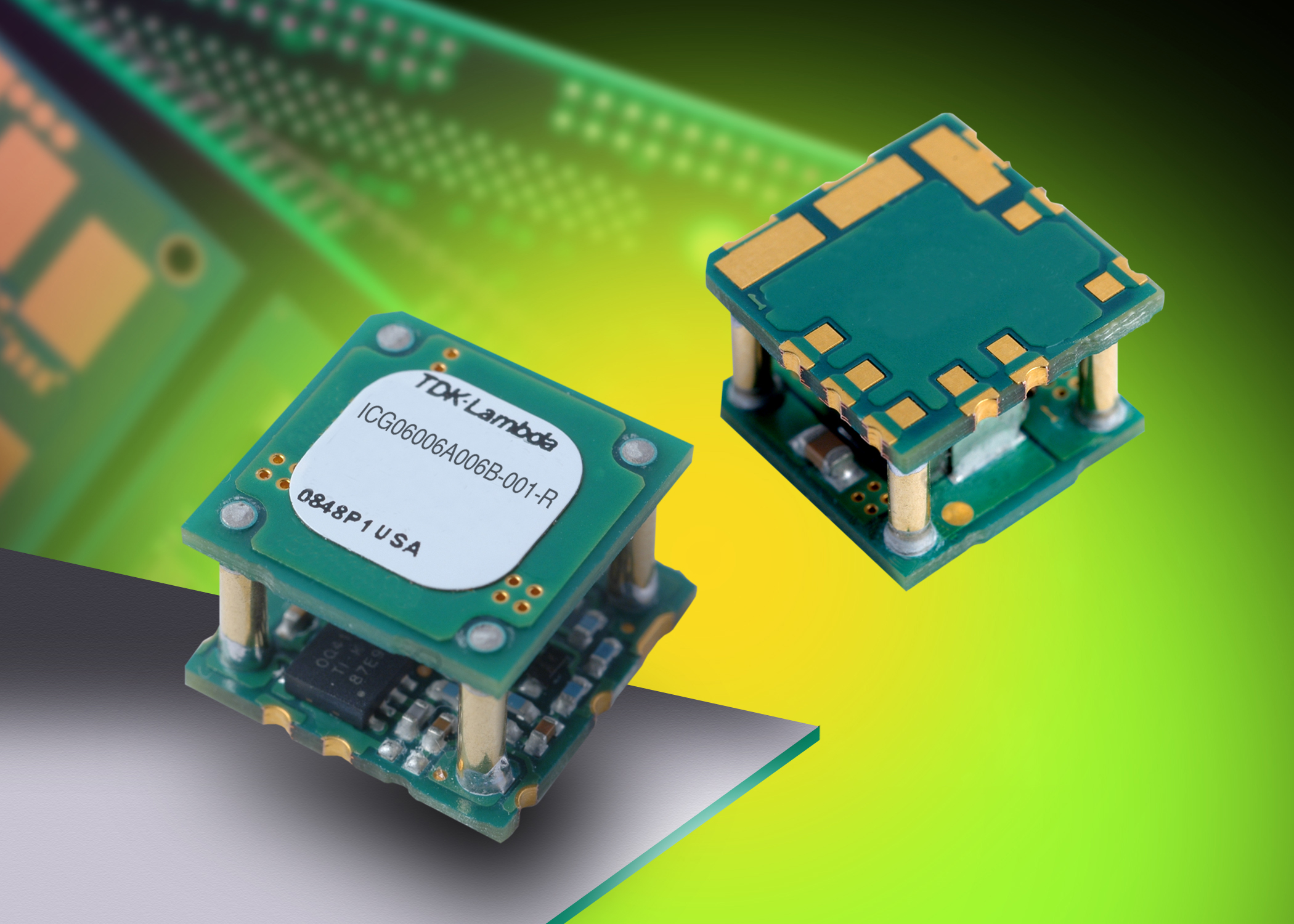

The iCG series is one of TDK-Lambda's second generation DOSA-2 compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 12.2 x 12.2mm, the product will deliver 6A from either a 3.3V / 5V or 12V nominal input with efficiency levels of up to 94%.
Features
- Fully Optimised Control Loop with Excellent Transient Response
- DOSA Compatible Footprint
- LGA or EPC Format
- 3 Year Warranty
Product Range Information
| Part number | Power (W) | Output info | Construction | Status | Datasheet |
|---|---|---|---|---|---|
| iCG12006A007V-007-R | 4.2 |
0.7V / 6A |
Open Frame DOSA smt |  |
|
| iCG12006A007V-007-R | 7.2 |
1.2V / 6A |
Open Frame DOSA smt | |
|
| iCG12006A007V-007-R | 10.8 |
1.8V / 6A |
Open Frame DOSA smt | |
|
| iCG12006A007V-007-R | 15 |
2.5V / 6A |
Open Frame DOSA smt | |
|
| iCG12006A007V-007-R | 19.8 |
3.3V / 6A |
Open Frame DOSA smt | |
|
| iCG12006A007V-007-R | 30 |
5V / 6A |
Open Frame DOSA smt | |
|
Key :
Current product
Technical Downloads
- iCG Datasheet
Download PDF - Evaluation & Reliabilty Data (Inc 3D Outlines)
View URL
