iAH

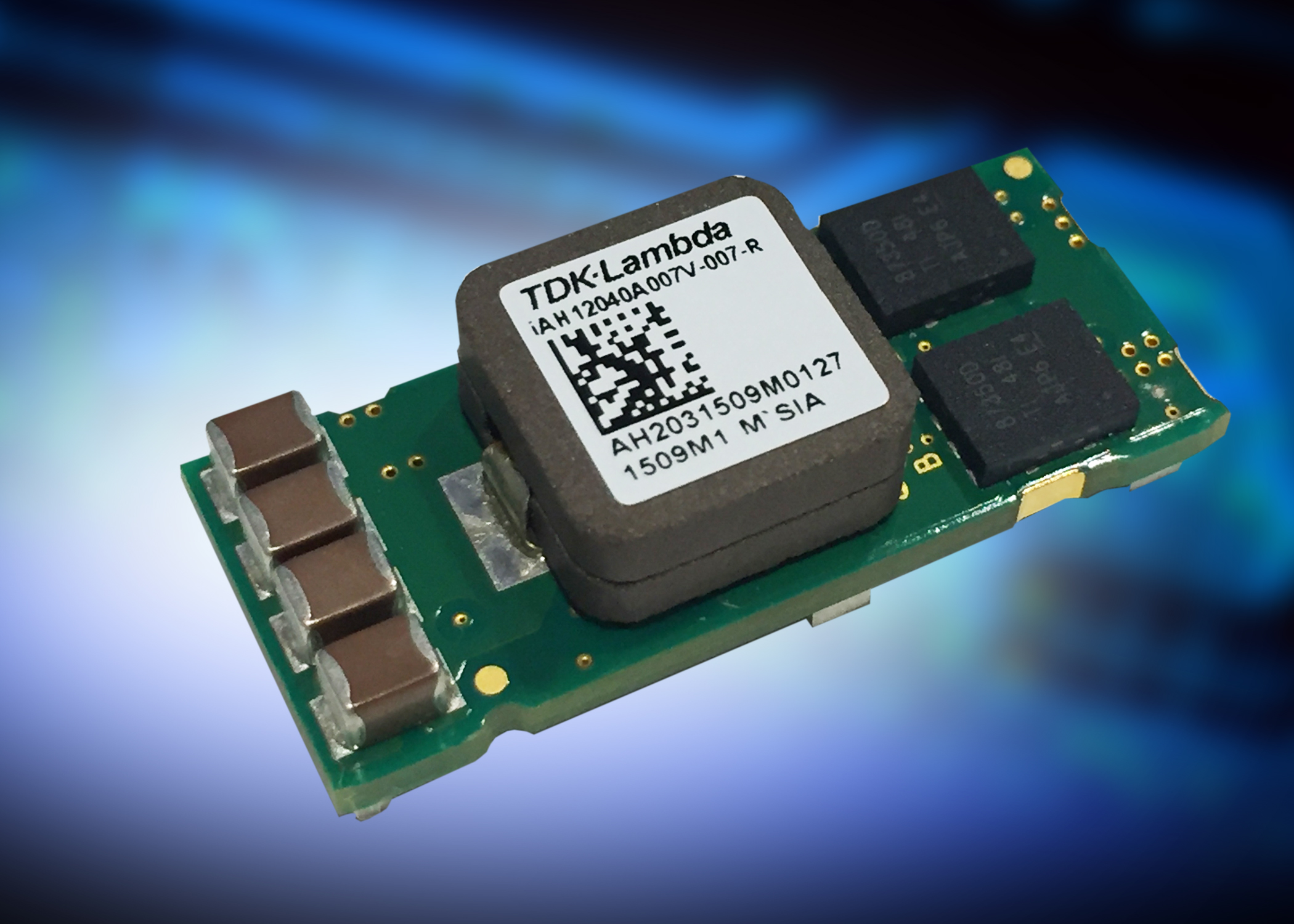

40A Non-isolated SMT Point of LoadThe iAH series is one of TDK-Lambda's third generation DOSA-2+ compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 33 x 13.5mm, the product will deliver 40A (100% more than the iAF models) from either a 5V or 12V nominal input with efficiency levels of up to 96%.
Features
- DOSA Compatible Footprint
- Constant Switching Frequency
- No external Loop Tuning Components Needed
- Excellent Transient Response
Downloads
Datasheets & Manuals
Images & 3D Drawings
Useful links
Product Range Information
| Part number | Power (W) | Output info | Construction | Status | Datasheet |
|---|---|---|---|---|---|
| iAH12040A007V-007-R (up to 150W) | 150 | 0.7V - 5.5V / 40A | Open Frame DOSA smt |  |
|
Key :
Current product
