iQL

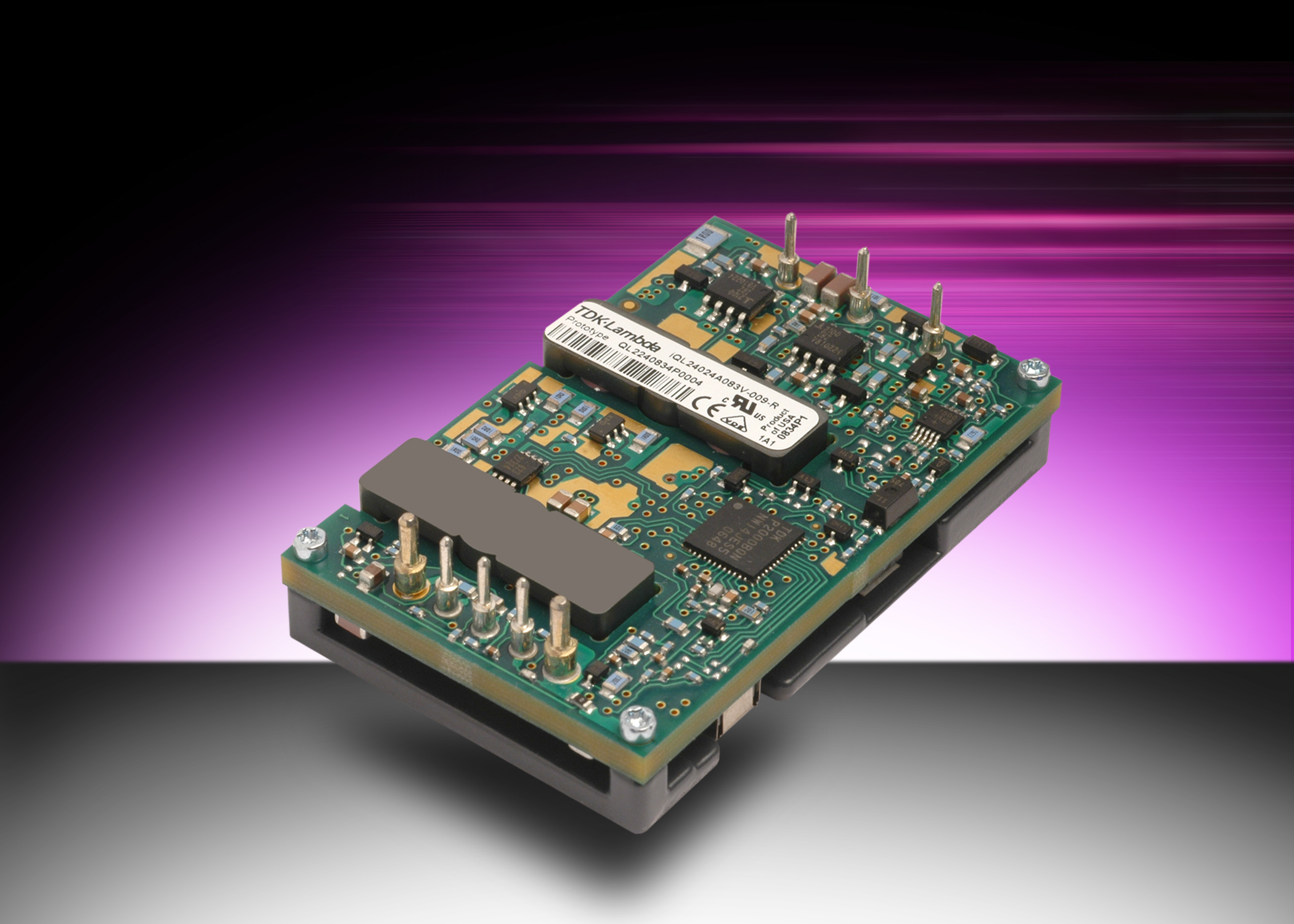

72-308W Quarter Brick DC-DC converters
The fully regulated and adjustable iQL series has both 24V and 48V input models and output voltages of 2.5V to 28V. The iQL Series has been designed with confined space and demanding thermal environments in mind, as used in telecom, datacom, wireless and many industrial applications. A baseplate for conduction cooling or use with a heatsink is available on many models.
Features
- Standard Quarter Brick Footprint
- 36-75VDC Input
- 2.5 to 28V Nominal Outputs
- Through Hole Mounting
- 1500VDC Basic Isolation
- Baseplate cooling
Applications
Product Range Information
| Part number | Power (W) | Output info | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| IQL48060A025V-0B9-R | 150 |
2.5V / 60A |
Quarter Brick |  |
|
| IQL24050A033V-009-R | 165 |
3.3V / 50A |
Quarter Brick | |
|
| IQL48060A033V-009-R | 198 |
3.3V / 60A |
Quarter Brick | |
|
| IQL24040A050V-009-R | 200 |
5V / 40A |
Quarter Brick | |
|
| IQL48045A050V-009-R | 225 |
5V / 45A |
Quarter Brick | |
|
| IQL48045A050V-0B9-R | 225 |
5V / 45A |
Quarter Brick | |
|
| IQL24024A083V-009-R | 199.2 |
8.3V / 24A |
Quarter Brick | |
|
| IQL48030A083V-009-R | 249 |
8.3V / 30A |
Quarter Brick | |
|
| IQL48025A120V-001-R | 300 |
12V / 25A |
Quarter Brick | |
|
| IQL48025A120V-009-R | 300 |
12V / 25A |
Quarter Brick | |
|
| IQL48025A120V-0B9-R | 300 |
12V / 25A |
Quarter Brick | |
|
| IQL48011A280V-009-R | 308 |
28V / 11A |
Quarter Brick | |
|
Key :
Current product
