AC-DC Power Supplies
HWS-A

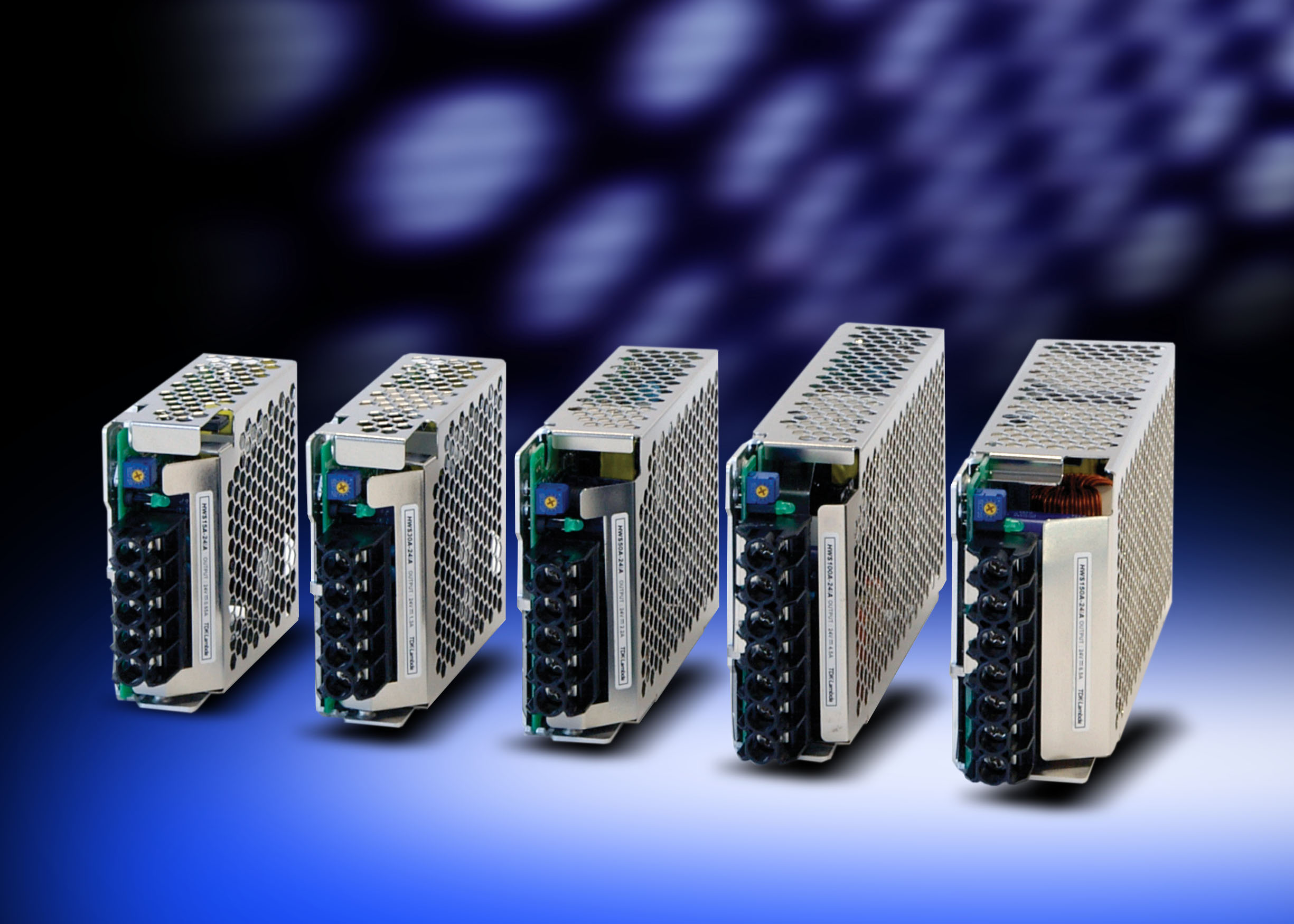

15-150W Industrial Power SuppliesThe ultra reliable, conservatively rated HWS-A series of 10W to 150W AC-DC power supplies has a limited lifetime warranty, unique to the industry. The series accepts a wide range 85 to 265Vac (300Vac peak for 5s) input with output voltages from 3.3V to 48V. The products are certified to IEC 62368-1, UL 508 and EN 62477-1 OVC III (HWS150A) and are SEMI F47 compliant.
Models with push-in wire terminals are available for systems utilizing cost-saving automated and robotic assembly techniques.
Features
- Limited Lifetime Warranty
- High Efficiency (up to 91%)
- Wide Range AC Input
- 15, 30, 50, 100 and 150W Models
- Output Voltages 3.3, 5, 12, 15, 24 and 48Vdc
- Optional Mesh Cover and Push-in Wiring Options on Select Part Numbers
Downloads
Datasheets & Manuals
Images & 3D Drawings
- Product Image
- HWS15A_A - 3D Drawing (Step file)
- HWS15A_ADIN - 3D Drawing (Step file)
- HWS30A_A - 3D Drawing (Step file)
- HWS30A_ADIN - 3D Drawing (Step file)
- HWS50A_A - 3D Drawing (Step file)
- HWS50A_ADIN - 3D Drawing (Step file)
- HWS100A_A - 3D Drawing (Step file)
- HWS100A_ADIN - 3D Drawing (Step file)
- HWS150A_A - 3D Drawing (Step file)
- HWS150A_ADIN - 3D Drawing (Step file)
Useful links
Other resources
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| HWS15A-3/A | 9.9W |
3.3V / 3A |
Enclosed |  |
Check stock |
|
|
| HWS30A-3/A | 19.8W |
3.3V / 6A |
Enclosed | |
Enquire |
|
|
| HWS50A-3/A | 33W |
3.3V / 10A |
Enclosed | |
Enquire |
|
|
| HWS100A-3/A | 66W |
3.3V / 20A |
Enclosed | |
Enquire |
|
|
| HWS150A-3/A | 99W |
3.3V / 30A |
Enclosed | |
Enquire |
|
|
| HWS15A-5/A | 15W |
5V / 3A |
Enclosed | |
Check stock |
|
|
| HWS30A-5/A | 30W |
5V / 6A |
Enclosed | |
Check stock |
|
|
| HWS50A-5/A | 50W |
5V / 10A |
Enclosed | |
Check stock |
|
|
| HWS100A-5/A | 100W |
5V / 20A |
Enclosed | |
Check stock |
|
|
| HWS150A-5/A | 150W |
5V / 30A |
Enclosed | |
Check stock |
|
|
| HWS15A-12/A | 15.6W |
12V / 1.3A |
Enclosed | |
Check stock |
|
|
| HWS30A-12/A | 30W |
12V / 2.5A |
Enclosed | |
Check stock |
|
|
| HWS50A-12/A | 51.6W |
12V / 4.3A |
Enclosed | |
Check stock |
|
|
| HWS100A-12/A | 102W |
12V / 8.5A |
Enclosed | |
Check stock |
|
|
| HWS150A-12/A | 156W |
12V / 13A |
Enclosed | |
Check stock |
|
|
| HWS15A-15/A | 15W |
15V / 1A |
Enclosed | |
Check stock |
|
|
| HWS30A-15/A | 30W |
15V / 2A |
Enclosed | |
Check stock |
|
|
| HWS50A-15/A | 52.5W |
15V / 3.5A |
Enclosed | |
Check stock |
|
|
| HWS100A-15/A | 105W |
15V / 7A |
Enclosed | |
Check stock |
|
|
| HWS150A-15/A | 150W |
15V / 10A |
Enclosed | |
Check stock |
|
|
| HWS15A-24/A | 15.6W |
24V / 0.65A |
Enclosed | |
Check stock |
|
|
| HWS30A-24/A | 32.1W |
24V / 1.3A |
Enclosed | |
Check stock |
|
|
| HWS50A-24/A | 52.8W |
24V / 2.2A |
Enclosed | |
Check stock |
|
|
| HWS100A-24/A | 108W |
24V / 4.5A |
Enclosed | |
Check stock |
|
|
| HWS150A-24/A | 156W |
24V / 6.5A |
Enclosed | |
Check stock |
|
|
| HWS15A-48/A | 15.84W |
48V / 0.33A |
Enclosed | |
Enquire |
|
|
| HWS30A-48/A | 31.2W |
48V / 0.65A |
Enclosed | |
Enquire |
|
|
| HWS50A-48/A | 52.8W |
48V / 1.1A |
Enclosed | |
Enquire |
|
|
| HWS100A-48/A | 100.8W |
48V / 2.1A |
Enclosed | |
Enquire |
|
|
| HWS150A-48/A | 158.4W |
48V / 3.3A |
Enclosed | |
Check stock |
|
| Part number | |
|---|---|
| HWS15A-3/A | |
| Power | 9.9W |
| Output info |
3.3V / 3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-3/A | |
| Power | 19.8W |
| Output info |
3.3V / 6A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-3/A | |
| Power | 33W |
| Output info |
3.3V / 10A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-3/A | |
| Power | 66W |
| Output info |
3.3V / 20A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-3/A | |
| Power | 99W |
| Output info |
3.3V / 30A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS15A-5/A | |
| Power | 15W |
| Output info |
5V / 3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-5/A | |
| Power | 30W |
| Output info |
5V / 6A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-5/A | |
| Power | 50W |
| Output info |
5V / 10A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-5/A | |
| Power | 100W |
| Output info |
5V / 20A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-5/A | |
| Power | 150W |
| Output info |
5V / 30A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS15A-12/A | |
| Power | 15.6W |
| Output info |
12V / 1.3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-12/A | |
| Power | 30W |
| Output info |
12V / 2.5A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-12/A | |
| Power | 51.6W |
| Output info |
12V / 4.3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-12/A | |
| Power | 102W |
| Output info |
12V / 8.5A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-12/A | |
| Power | 156W |
| Output info |
12V / 13A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS15A-15/A | |
| Power | 15W |
| Output info |
15V / 1A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-15/A | |
| Power | 30W |
| Output info |
15V / 2A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-15/A | |
| Power | 52.5W |
| Output info |
15V / 3.5A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-15/A | |
| Power | 105W |
| Output info |
15V / 7A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-15/A | |
| Power | 150W |
| Output info |
15V / 10A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS15A-24/A | |
| Power | 15.6W |
| Output info |
24V / 0.65A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-24/A | |
| Power | 32.1W |
| Output info |
24V / 1.3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-24/A | |
| Power | 52.8W |
| Output info |
24V / 2.2A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-24/A | |
| Power | 108W |
| Output info |
24V / 4.5A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-24/A | |
| Power | 156W |
| Output info |
24V / 6.5A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS15A-48/A | |
| Power | 15.84W |
| Output info |
48V / 0.33A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS30A-48/A | |
| Power | 31.2W |
| Output info |
48V / 0.65A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS50A-48/A | |
| Power | 52.8W |
| Output info |
48V / 1.1A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS100A-48/A | |
| Power | 100.8W |
| Output info |
48V / 2.1A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| HWS150A-48/A | |
| Power | 158.4W |
| Output info |
48V / 3.3A |
| Construction | Enclosed |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
