DC-DC Converters
CN-A

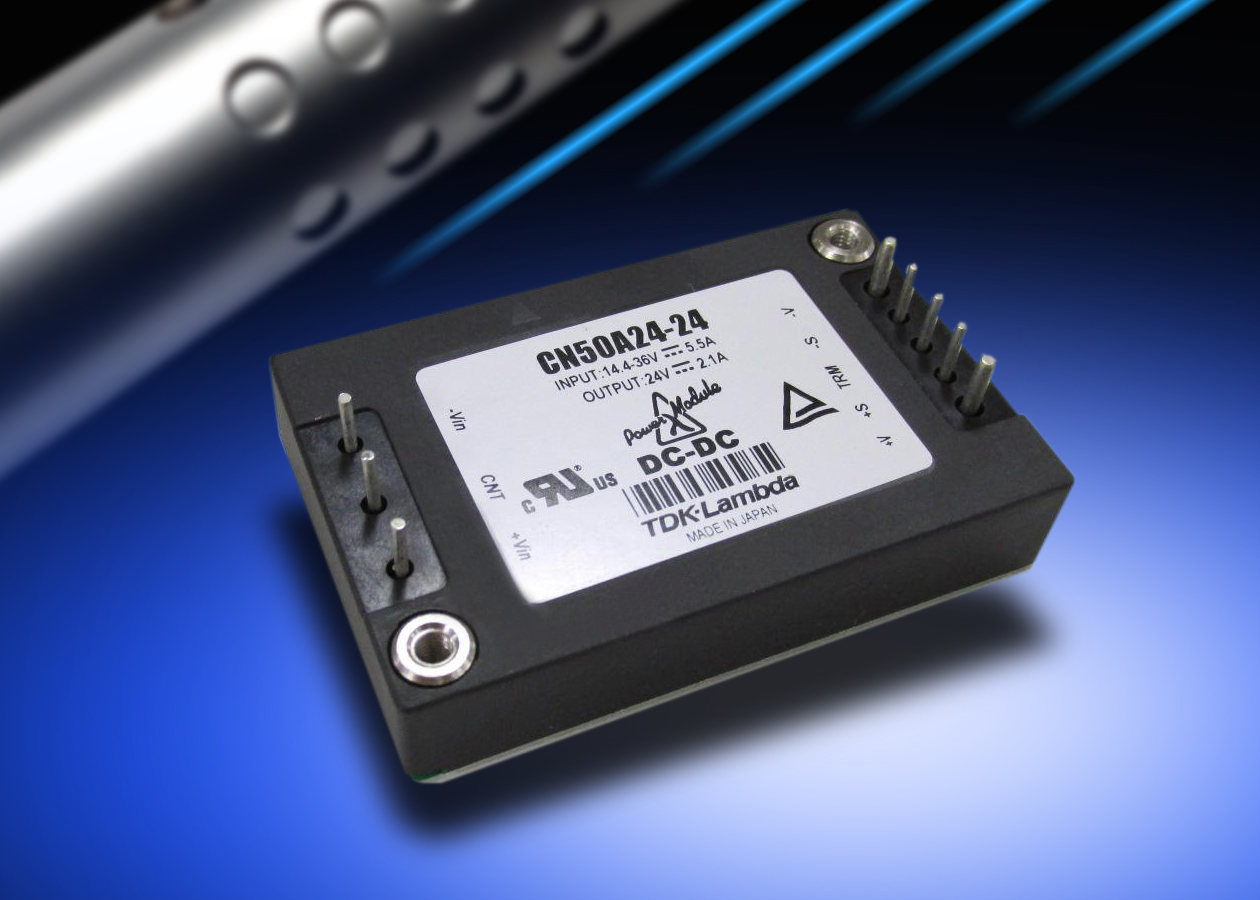

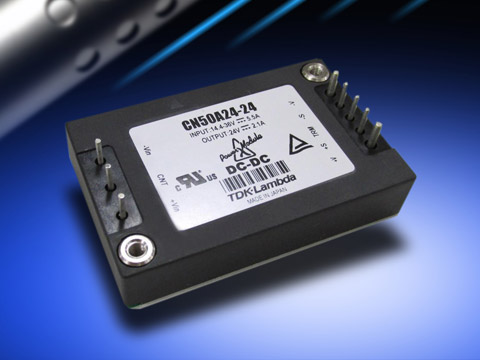

30W-200W Half & Quarter Brick DC-DC convertersFeaturing either 60 - 160Vdc or 14.4 - 36Vdc inputs, the CN-A meets the stringent shock and vibration requirements of IEC61373, as well as the Japanese equivalent standard JIS E 4031. A coating option allow the products to meet EN50155. Full power operation on all the converters is guaranteed across a -40 to +100°C baseplate temperature. All models, except the half brick 200W, have a quarter brick footprint and will withstand a 3kVac isolation voltage.
Features
- 60-160Vdc and 14.4 - 36Vdc Input Ranges
- IEC 61373 Shock and Vibration
- Base plate Cooled
- Full Power at 100°C base plate
- Five Year Warranty
Downloads
Product Range Information
To request a sample or quote, please tick the box alongside the model of interest.
Models selected: 0 Request quote / sample
| Part number | Power | Output info | Construction | Status | Stock Level | View PDF datasheet | Request quote / sample |
|---|---|---|---|---|---|---|---|
| CN30A110-5 | 30W |
5V / 6A |
Quarter Brick |  |
Enquire |
|
|
| CN50A110-5 | 50W |
5V / 10A |
Quarter Brick | |
Enquire |
|
|
| CN50A24-5 | 50W |
5V / 10A |
Quarter Brick |  |
Enquire |
|
|
| CN100A110-5 | 100W |
5V / 20A |
Quarter Brick | |
Enquire |
|
|
| CN100A24-5 | 100W |
5V / 20A |
Quarter Brick | |
Enquire |
|
|
| CN200A110-5 | 200W |
5V / 40A |
Half Brick | |
Enquire |
|
|
| CN30A110-12 | 30W |
12V / 2.5A |
Quarter Brick | |
Check stock |
|
|
| CN50A110-12 | 50.4W |
12V / 4.2A |
Quarter Brick | |
Enquire |
|
|
| CN50A24-12 | 50.4W |
12V / 4.2A |
Quarter Brick | |
Enquire |
|
|
| CN100A110-12 | 100.8W |
12V / 8.4A |
Quarter Brick | |
Enquire |
|
|
| CN100A24-12 | 100.8W |
12V / 8.4A |
Quarter Brick | |
Enquire |
|
|
| CN200A110-12 | 200W |
12V / 16.7A |
Half Brick | |
Enquire |
|
|
| CN30A110-15 | 30W |
15V / 2A |
Quarter Brick | |
Enquire |
|
|
| CN50A110-15 | 51W |
15V / 3.4A |
Quarter Brick | |
Enquire |
|
|
| CN100A110-15 | 100.5W |
15V / 6.7A |
Quarter Brick | |
Enquire |
|
|
| CN200A110-15 | 200W |
15V / 13.4A |
Half Brick | |
Enquire |
|
|
| CN30A110-24 | 31.2W |
24V / 1.3A |
Quarter Brick | |
Enquire |
|
|
| CN50A110-24 | 50.4W |
24V / 2.1A |
Quarter Brick | |
Enquire |
|
|
| CN50A24-24 | 50.4W |
24V / 2.1A |
Quarter Brick | |
Enquire |
|
|
| CN100A110-24 | 100.8W |
24V / 4.2A |
Quarter Brick | |
Enquire |
|
|
| CN100A24-24 | 100.8W |
24V / 4.2A |
Quarter Brick | |
Enquire |
|
|
| CN200A110-24 | 200W |
24V / 8.4A |
Half Brick | |
Enquire |
|
| Part number | |
|---|---|
| CN30A110-5 | |
| Power | 30W |
| Output info |
5V / 6A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A110-5 | |
| Power | 50W |
| Output info |
5V / 10A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A24-5 | |
| Power | 50W |
| Output info |
5V / 10A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A110-5 | |
| Power | 100W |
| Output info |
5V / 20A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A24-5 | |
| Power | 100W |
| Output info |
5V / 20A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN200A110-5 | |
| Power | 200W |
| Output info |
5V / 40A |
| Construction | Half Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN30A110-12 | |
| Power | 30W |
| Output info |
12V / 2.5A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Check stock |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A110-12 | |
| Power | 50.4W |
| Output info |
12V / 4.2A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A24-12 | |
| Power | 50.4W |
| Output info |
12V / 4.2A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A110-12 | |
| Power | 100.8W |
| Output info |
12V / 8.4A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A24-12 | |
| Power | 100.8W |
| Output info |
12V / 8.4A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN200A110-12 | |
| Power | 200W |
| Output info |
12V / 16.7A |
| Construction | Half Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN30A110-15 | |
| Power | 30W |
| Output info |
15V / 2A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A110-15 | |
| Power | 51W |
| Output info |
15V / 3.4A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A110-15 | |
| Power | 100.5W |
| Output info |
15V / 6.7A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN200A110-15 | |
| Power | 200W |
| Output info |
15V / 13.4A |
| Construction | Half Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN30A110-24 | |
| Power | 31.2W |
| Output info |
24V / 1.3A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A110-24 | |
| Power | 50.4W |
| Output info |
24V / 2.1A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN50A24-24 | |
| Power | 50.4W |
| Output info |
24V / 2.1A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A110-24 | |
| Power | 100.8W |
| Output info |
24V / 4.2A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN100A24-24 | |
| Power | 100.8W |
| Output info |
24V / 4.2A |
| Construction | Quarter Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
| CN200A110-24 | |
| Power | 200W |
| Output info |
24V / 8.4A |
| Construction | Half Brick |
| Status |
|
| Stock Level | Enquire |
| View PDF datasheet |
|
| Request quote / sample | |
Key :
Current productNot recommended for new designs
