PX-M Series

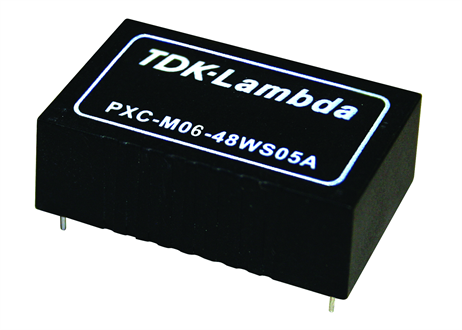

The PXC-M series of medical DC-DC converters feature a wide 4:1 input range in a compact 1.25" x 0.8“ (31.8 x 20.3mm) industry standard package. With 5kV input to output isolation, 2µA touch current and a low off-load power draw, these encapsulated modules are ideal for fixed and portable applications.

• 3W, 6W, 10W Output power
• 3.3, 5, 12, 15, 24Vdc
• Wide 4:1 Input Range
• Compact 1.25“ x 0.8“ Industry Package
• Certified to IEC60601-1 and ES60601-1
• 2 x MOPP Isolation
• Low No Load Power Consumption
• 5 Years Warranty

The PXD-M series of medical and industrial DC-DC converters feature a wide 4:1 input range in a compact 2" x 1” (50.8 x 25mm) industry standard package. With 5kV input to output isolation, 2.5µa touch current and a low off-load power draw, these encapsulated modules are ideal for fixed and portable applications.

• 30W Output power
• 5, 12, 15, 24Vdc
• Wide 4:1 Input Range
• Compact 2“ x 1“ Industry Package
• Certified to IEC60601-1 and IEC62368-1
• 2 x MOPP Isolation
• Low No Load Power Consumption
• 5 Years Warranty

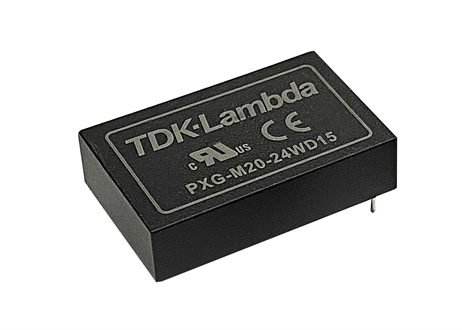

The PXG-M series of medical and industrial DC-DC converters feature a wide 4:1 input range in a compact 1.6" x 1” (41 x 25mm) industry standard package. With 5kV input to output isolation, 2.5µa touch current and a low off-load power draw, these encapsulated modules are ideal for fixed and portable applications.

• 15W, 20W Output Power
• 5, 12, 15, 24Vdc
• Wide 4:1 Input Range
• Compact 1.6” x 1” Industry Package
• Certified to IEC60601-1 and IEC62368-1
• 2 x MOPP Isolation
• Low No Load Power Consumption
• 5 Years Warranty
