DC-DC Converters
iCH

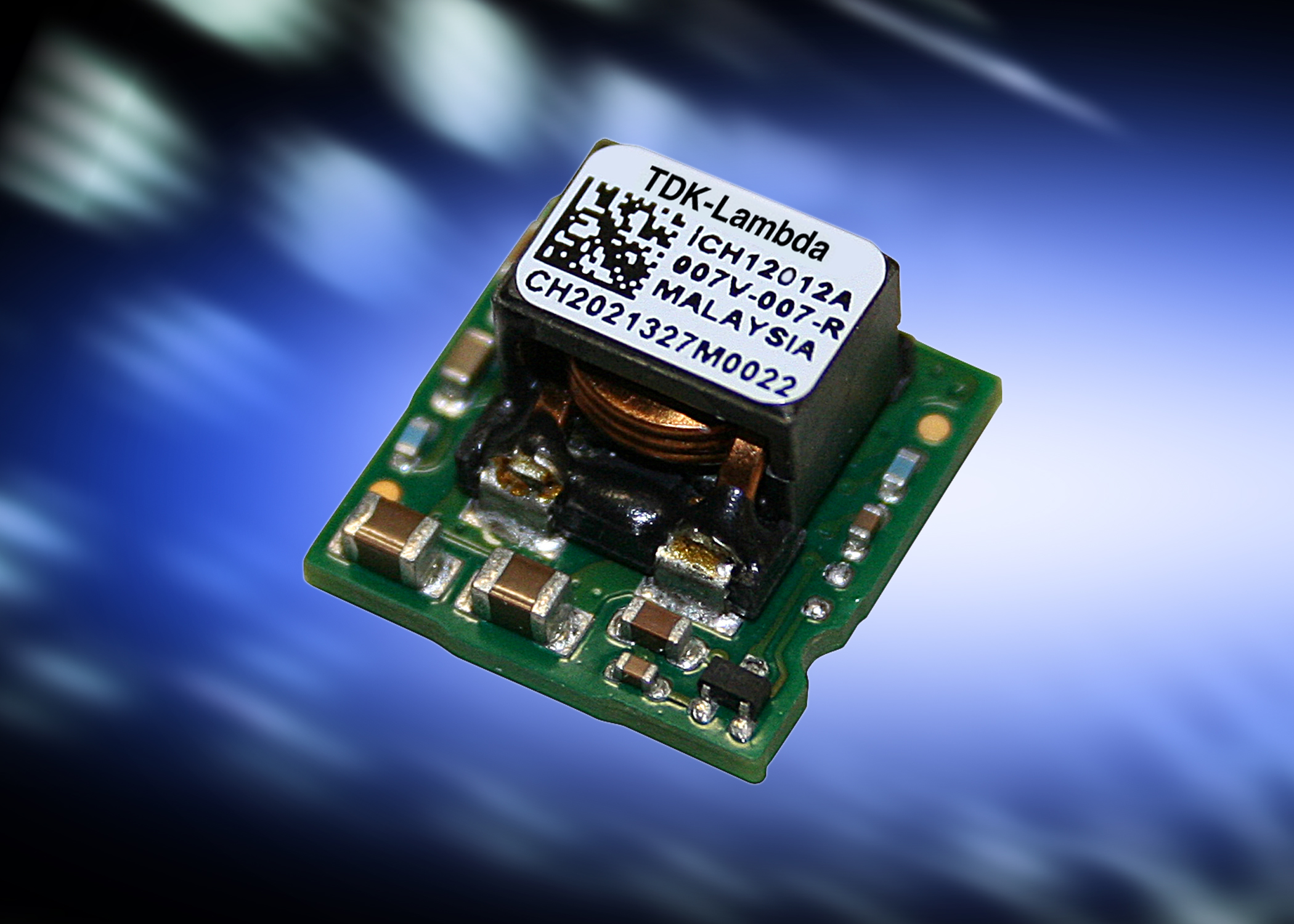

85W, 12A Non-isolated SMT Point of LoadThe iCH series is one of TDK-Lambda's third generation DOSA-2+ compatible Point of Load, surface mount DC-DC converters. The product's fully optimised control loop provides excellent transient response characteristics, without the need for external loop components. Measuring 12.2 x 12.2mm, the product will deliver 12A (200% more than the iCF models) from either a 5V or 12V nominal input with efficiency levels of up to 97%.
Features
- DOSA Compatible Footprint
- Constant Switching Frequency
- No external Loop Tuning Components Needed
- Excellent Transient response
Downloads
Datasheets & Manuals
Images & 3D Drawings
Useful links
Product Range Information
| Part number | Power | Output info | Construction | Status | View PDF datasheet |
|---|---|---|---|---|---|
| iCH12012A007V-007-R | 85W |
7V / 12A |
Open Frame DOSA smt |  |
|
Key :
Current product
Quick Product Finder
iCH videos
Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.
iCH Technical Downloads
Datasheets
Manuals
Images & 3D Drawings
Other resources
Not currently availableiCH In the TDK-Lambda Newsroom
Compact 12A POL DC-DC converters have a wide 0.7V to 8.5V output adjustment range
Read the article
