FPS

1U Front End Power supply

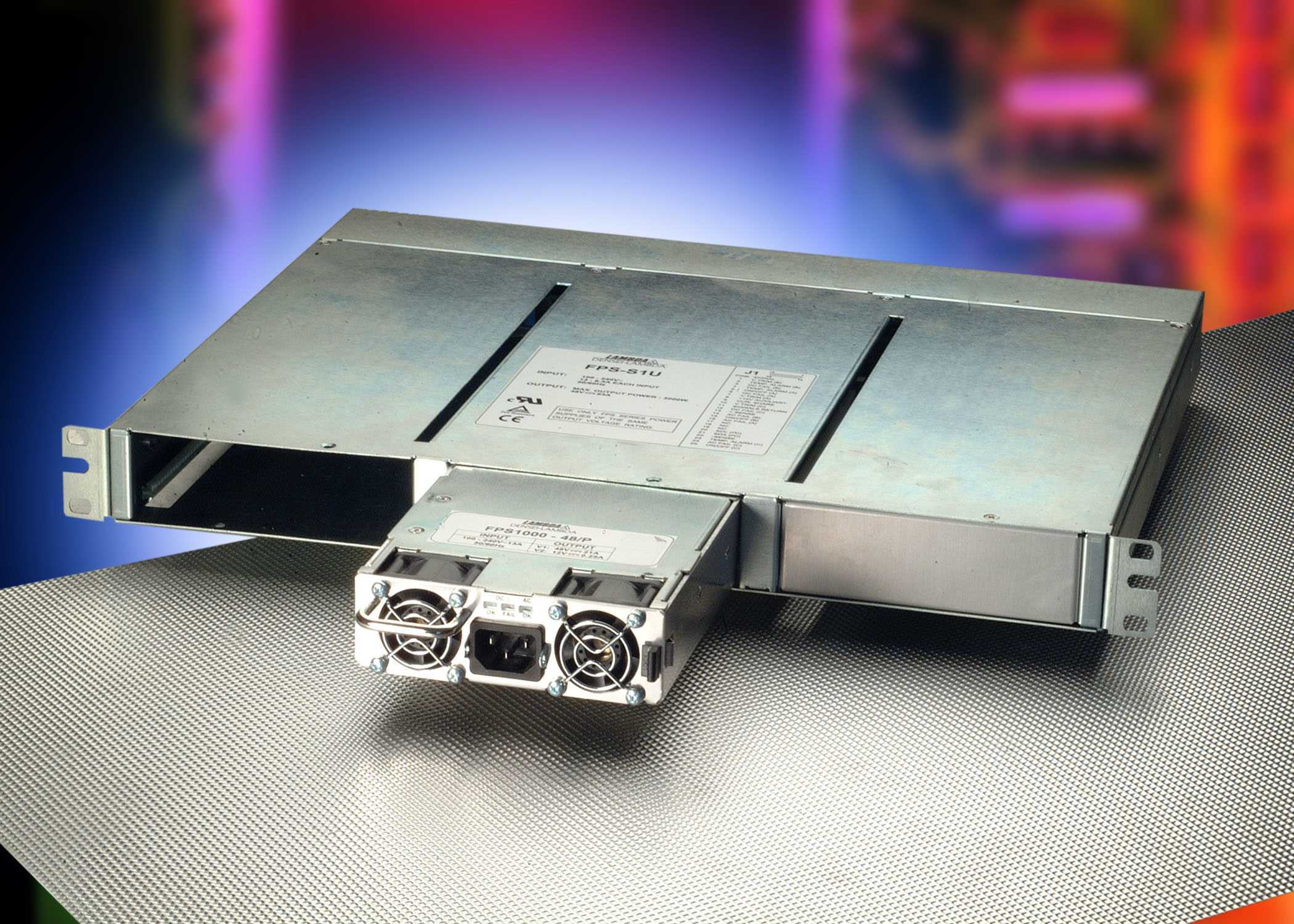

These rugged 1000W, hot-swap power supplies are available in 12V, 24V, 32V and 48V outputs and accept a wide 85 to 265Vac input. Up to three units can be plugged into the optional 1U high, 19" rack assemblies, which are configured in either a single output, or as three individual, isolated outputs. An I2C interface and/or front entry AC are available as standard options.

Features

1U High
Up to 3000W (3 units) in 19in rack
Hotswap capable (Oring diodes built in)
Low cost
12, 24, 32 & 48 Volt Outputs
PoE Option

Downloads

Datasheets & Manuals

Images & 3D Drawings

Useful links

Other resources

FPS China RoHS

Product Range Information

Hide details

Show details

Part number	Power (W)	Output info	Construction
FPSS1U	0	0V / 0A	1U Rack
FPS1000 12	864	12V / 72A	Enclosed
FPS1000 12/P	864	12V / 72A	Enclosed
FPS1000 12/PS	864	12V / 72A	Enclosed
FPS1000 12/S	864	12V / 72A	Enclosed
FPS1000 24	960	24V / 40A	Enclosed
FPS1000 24/P	960	24V / 40A	Enclosed
FPS1000 24/PS	960	24V / 40A	Enclosed
FPS1000 24/S	960	24V / 40A	Enclosed
FPS1000 32	992	32V / 31A	Enclosed
FPS1000 32/P	992	32V / 31A	Enclosed
FPS1000 32/PS	992	32V / 31A	Enclosed
FPS1000 32/S	992	32V / 31A	Enclosed
FPS1000 48	1008	48V / 21A	Enclosed
FPS1000 48/P	1008	48V / 21A	Enclosed
FPS1000 48/PS	1008	48V / 21A	Enclosed
FPS1000 48/S	1008	48V / 21A	Enclosed
