NEW RANGE 1.4-3W, 12V Input, 180-2000V Output DC-DC Converters

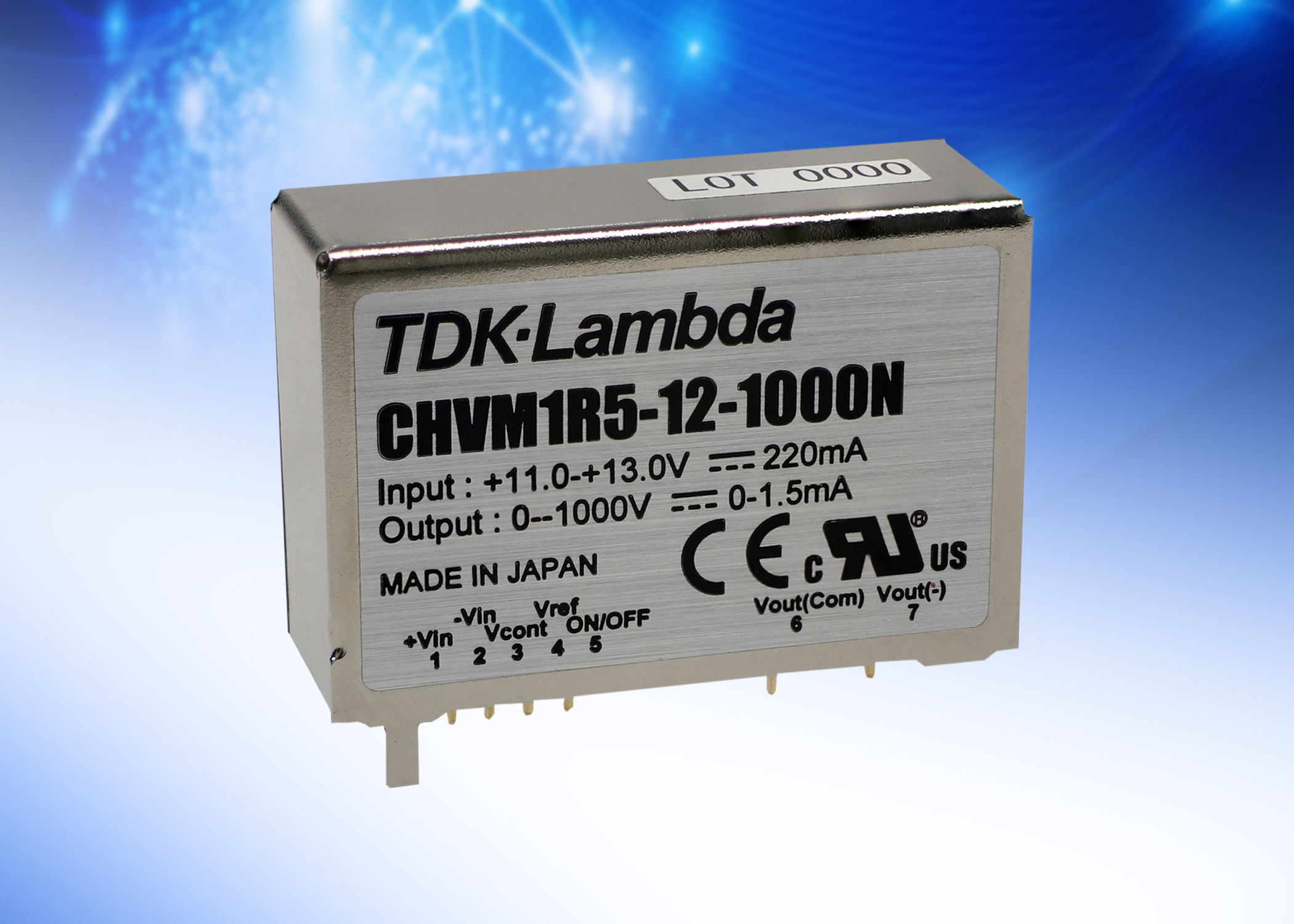

CHVM high voltage dc-dc converter modules offer output voltages of up to 2kV in compact SIP pcb mount formats. Output power is 1.4W to 3W depending on package and all units accept a nominal 12Vdc input. Remote on/off is standard and the output can be adjusted from 0.5% to 100% using an external variable resistor or applied voltage. CHVM offers extremely low ripple and noise performance (as low as 5mVp_p on a 1000V output) making them suitable for precision, noise sensitive applications such as photomultiplier tubes, photodiodes and other detectors and devices often employed in laboratory equipment such as scanning electron microscopes, X-ray fluorescence spectrometers, mass spectrometers and ultrasonic probes.

Features

  • Programmable Output Voltage (Voltage or Resistance)
  • Compact Size
  • Five-Sided Shielding
  • Low Output Ripple
  • Safety Certified

Product Range Information

Hide details

Show details

Part number Power (W) Output info Construction Status View PDF datasheet
CHVM1R5-12-2000N 1.4 -2000V / 0.0007A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-2000NW 2 -2000V / 0.001A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-1500NW 1.95 -1500V / 0.0013A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM1R5-12-1500N 1.5 -1000V / 0.001A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM1R5-12-1000N 1.5 -1000V / 0.0015A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-1000NW 2 -1000V / 0.002A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R6-12-0470NW 2.63 -470V / 0.0056A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R5-12-0350NW 2.45 -350V / 0.007A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM3-12-0300NW 3 -300V / 0.01A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R7-12-0180NW 2.7 -180V / 0.015A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R7-12-0180PW 2.7 180V / 0.015A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM3-12-0300PW 3 300V / 0.01A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R5-12-0350PW 2.45 350V / 0.007A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2R6-12-0470PW 2.63 470V / 0.0056A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM1R5-12-1000P 1.5 1000V / 0.0015A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-1000PW 2 1000V / 0.002A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM1R5-12-1500P 1.5 1500V / 0.001A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-1500PW 1.95 1500V / 0.0013A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM1R5-12-2000P 1.4 2000V / 0.0007A
Enclosed pcb mount smt New product   View PDF datasheet
CHVM2-12-2000PW 2 2000V / 0.001A
Enclosed pcb mount smt New product   View PDF datasheet
Key : New product
