AC-DC Power Supplies

AC-DC Power Supplies

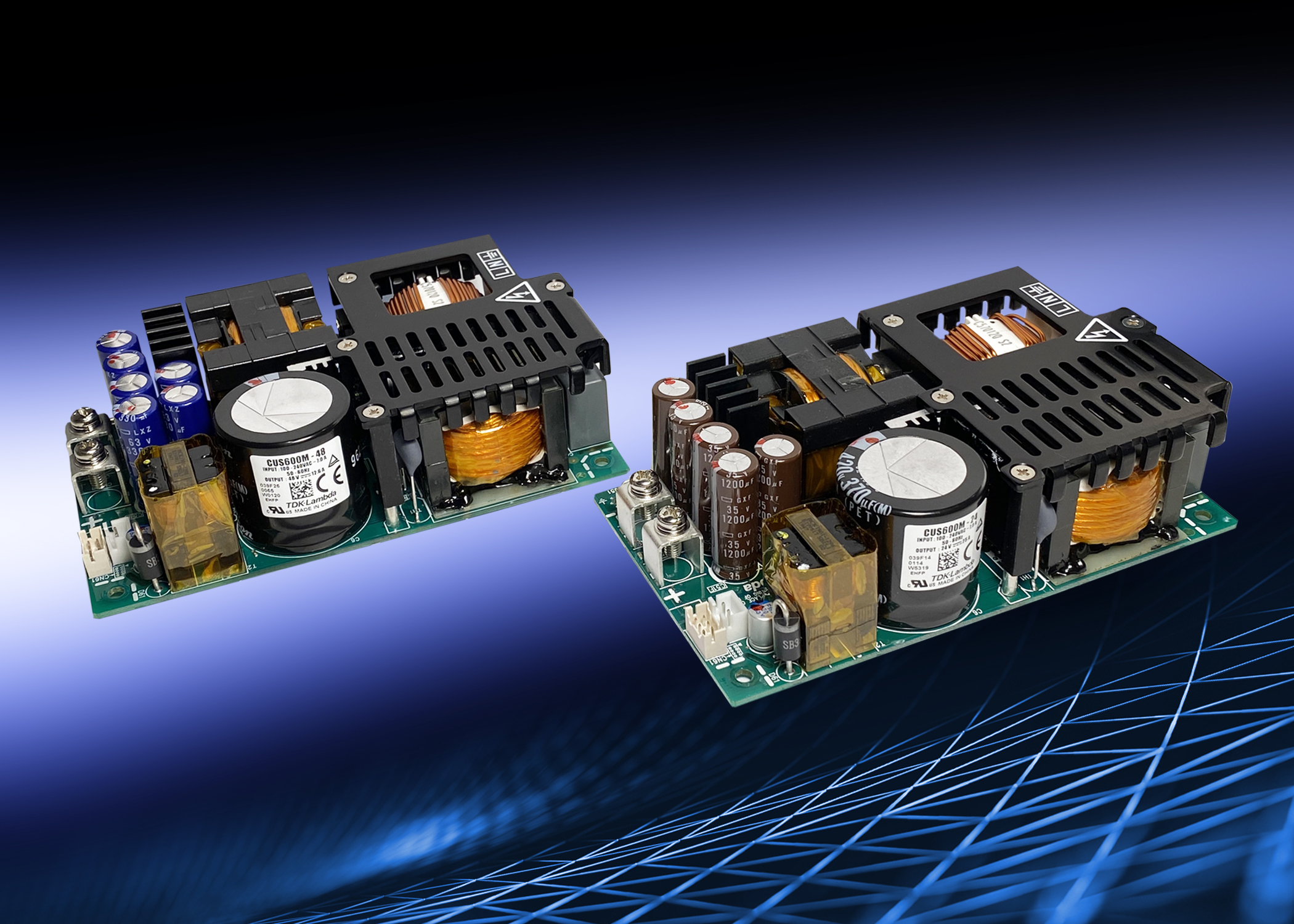

NEW MODEL 3 x 5” 600W AC-DC Power Supplies

The compact CUS600M series of single output AC-DC power supplies are available with 12V, 19V, 24V, 28V, 32V, 36V and 48V outputs in an industry standard 3 x 5 inch package and can deliver 600W with forced air cooling or 400W with 600W peak power when convection cooled. CUS600M can be used in both Class I and Class II (no earth wire) applications and offers efficiencies of up to 96%, no-load power consumption of less than 0.5W (when output inhibited) and a 5V 2A standby voltage, remote on/off, remote sense and a power good signal are fitted as standard. A cover with integral end mounted fan option is available. Safety certifications include IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1 with CE marking for the Low Voltage, EMC and RoHS Directives. The units also comply with EN 55011-B and EN 55032-B conducted and radiated emissions, and meet the EN 61000-3-2 harmonics, IEC60601-1-2 Edition 4 and IEC 61000-4 immunity standards. Typical applications include medical (B and BF type), home healthcare, dental, test and measurement, broadcast, professional audio and industrial equipment.



  • 400W (600W Peak) Convection Cooled
  • 600W with Forced Air
  • Medical Certifi cations (2 x MOPP)
  • Class B Conducted and Radiated EMI
  • Suitable for Class I and Class II installations
  • Compact 3 x 5 x 1.46” Size
  • Enclosure & Other Options


Product Range Information

Hide details

Show details

Part number Power (W) Output info Construction Status Datasheet
CUS600M-12/EF 600 12V / 5A
Enclosed New product   Datasheet
CUS600M-12 600 12V / 50A
Open Frame Current product   Datasheet
CUS600M-19 600.4 19V / 31.6A
Open Frame Current product   Datasheet
CUS600M-19/EF 600.4 19V / 31.6A
Enclosed New product   Datasheet
CUS600M-24 600 24V / 25A
Open Frame Current product   Datasheet
CUS600M-24/EF 600 24V / 25A
Enclosed New product   Datasheet
CUS600M-28 602 28V / 21.5A
Open Frame Current product   Datasheet
CUS600M-28/EF 602 28V / 21.5A
Enclosed New product   Datasheet
CUS600M-32 601.6 32V / 18.8A
Open Frame Current product   Datasheet
CUS600M-32/EF 601.6 32V / 18.8A
Enclosed New product   Datasheet
CUS600M-36 601.2 36V / 16.7A
Open Frame Current product   Datasheet
CUS600M-36/EF 601.2 36V / 16.7A
Enclosed New product   Datasheet
CUS600M-48 604.8 48V / 12.6A
Open Frame Current product   Datasheet
CUS600M-48/EF 604.8 48V / 12.6A
Enclosed New product   Datasheet
Key : New productCurrent product

Quick Product Finder

Choose number of outputs:
Choose power supply type:

CUS600M videos

Range Overview Video

CUS600M 3 x 5” 600W AC-DC Power Supplies Video

Our videos are hosted by Vimeo.By viewing this content you are agreeing to the Terms & Privacy Policy laid out on the Vimeo website.

CUS600M Technical Downloads

CUS600M In the TDK-Lambda Newsroom

600W medical and industrial power supplies offered with integral fan for simplified cooling
Read the article

600W 3”x 5” medical and industrial power supplies offer efficiencies up to 96%
Read the article
