250W ruggedized non-isolated DC-DC converters

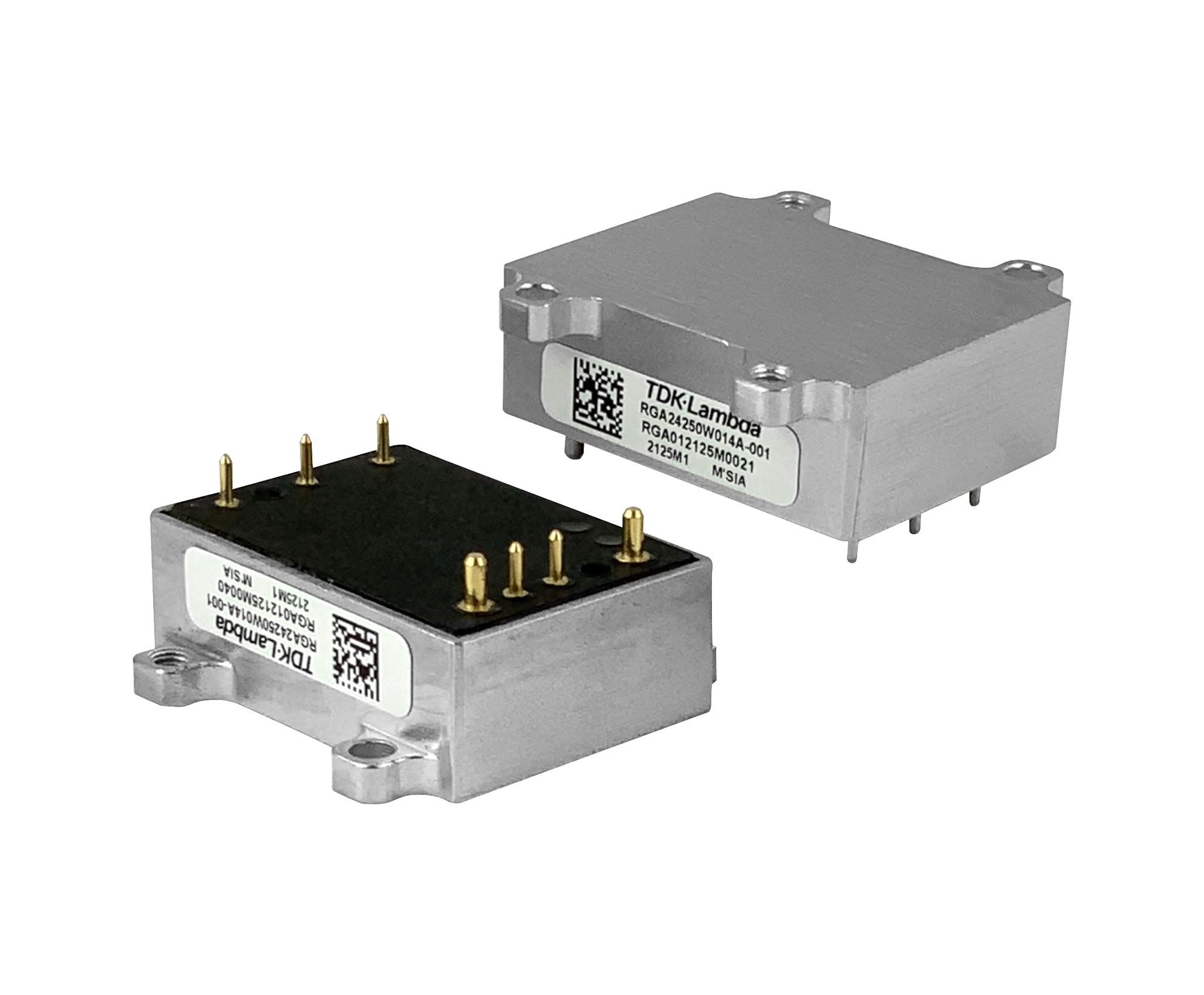

The rugged RGA non-isolated DC-DC step-down converters are encapsulated in a five-sided aluminium case and rated for up to 110˚C operation. The modules have the industry standard 1/16th brick pin-out, are qualified to MIL-STD-810G (shock and vibration) and designed for fan-less, conduction cooled applications. The series accepts a wide input range to support multiple DC bus and battery voltages. Standard and optional features include remote on/off, remote sense, power good, frequency synchronization and output sequencing, making the modules a truly versatile power solution. The wide output adjustment range allows one model to be used in multiple positions, assisting inventory and part number reduction.

RGA

Features

  • Up to 250W in a 1/16th Brick Pin-Out
  • Encapsulated in a 5-sided Aluminium case
  • 110 ˚C maximum case temperature
  • Efficiency - Up to 98%
  • Wide 3.3 to 15V, 3.3 to 24V or 3.3 to 40V Output Adjustment
  • Wide 9 to 40V or 9 to 53V Input Range
  • Low Component Count with Minimal External Components

Downloads

Product Range Information

Hide details

Show details

To request a sample or quote, please tick the box alongside the model of interest.

Models selected: 0 Request quote / sample

Part number Power Output info Construction Status Stock Level View PDF datasheet Request quote / sample
RGA4W250W010A-001 250W 3.3V - 40V / 10A Sixteenth Brick Current product Check stock   View PDF datasheet
RGA4W250W010A-003 250W 3.3V - 40V / 10A Sixteenth Brick Current product Check stock   View PDF datasheet
RGA24250W014A-001 250W 3.3V - 24V / 14A Sixteenth Brick Current product Check stock   View PDF datasheet
RGA24250W014A-003 250W 3.3V - 24V / 14A Sixteenth Brick Current product Check stock   View PDF datasheet
RGA4W250W020A-001 250W 3.3V - 15V / 20A Sixteenth Brick Current product Check stock   View PDF datasheet
RGA4W250W020A-003 250W 3.3V - 15V / 20A Sixteenth Brick Current product Check stock   View PDF datasheet
Part number
RGA4W250W010A-001
Power 250W
Output info 3.3V - 40V / 10A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
RGA4W250W010A-003
Power 250W
Output info 3.3V - 40V / 10A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
RGA24250W014A-001
Power 250W
Output info 3.3V - 24V / 14A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
RGA24250W014A-003
Power 250W
Output info 3.3V - 24V / 14A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
RGA4W250W020A-001
Power 250W
Output info 3.3V - 15V / 20A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
RGA4W250W020A-003
Power 250W
Output info 3.3V - 15V / 20A
Construction Sixteenth Brick
Status Current product
Stock Level Check stock
View PDF datasheet View PDF datasheet
Request quote / sample
Key : Current product
