TDK-Lambda offers a wide range of embedded power supplies suitable for 1U enclosures and 1U Rack Mount/Hot Swap power supplies for high power systems applications including:
servers, datacom, data storage, communications, broadcast, military (COTS), medical, industrial automation, laboratory equipment, lasers and scientific research

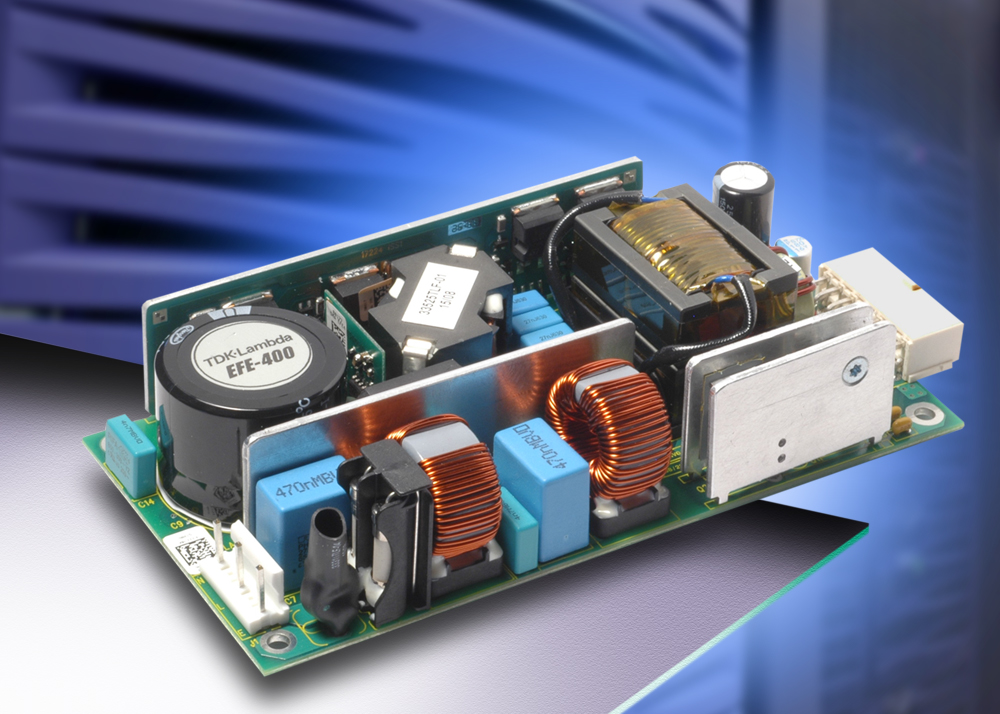

400W Digital 1U AC-DC power supplies
1U Hot Swap Front End Power supplies
HFE 1600 & 2500
Up tp 29.2W/in3 power density
Internal ORing MOSFET & Current Share
Climate Savers Computing efficiency standards
Up to 10kW in 1U rack
HFE1600 has dimensions of 300 x 85 x 41mm, and can be used individually or up to 5 units can be mounted into a dedicated TDK-Lambda 1U rack delivering 8kW.
HFE2500 has dimensions of 325 x 107 x 41mm and can be used individually or up to four units can be mounted into a dedicated 1U rack delivering 10kW.
Typical applications include communications, broadcast, military (COTS), laser and process control.
FPS 1U Front End Power supply
The FPS 1U Front End Power supply is available in 12, 24, 32 & 48 Volt Outputs and can deliver up to 3000W with 3 units in 19in rack and are hotswap capable (Oring diodes built in)
Programmable 1U Rack Mount power supply

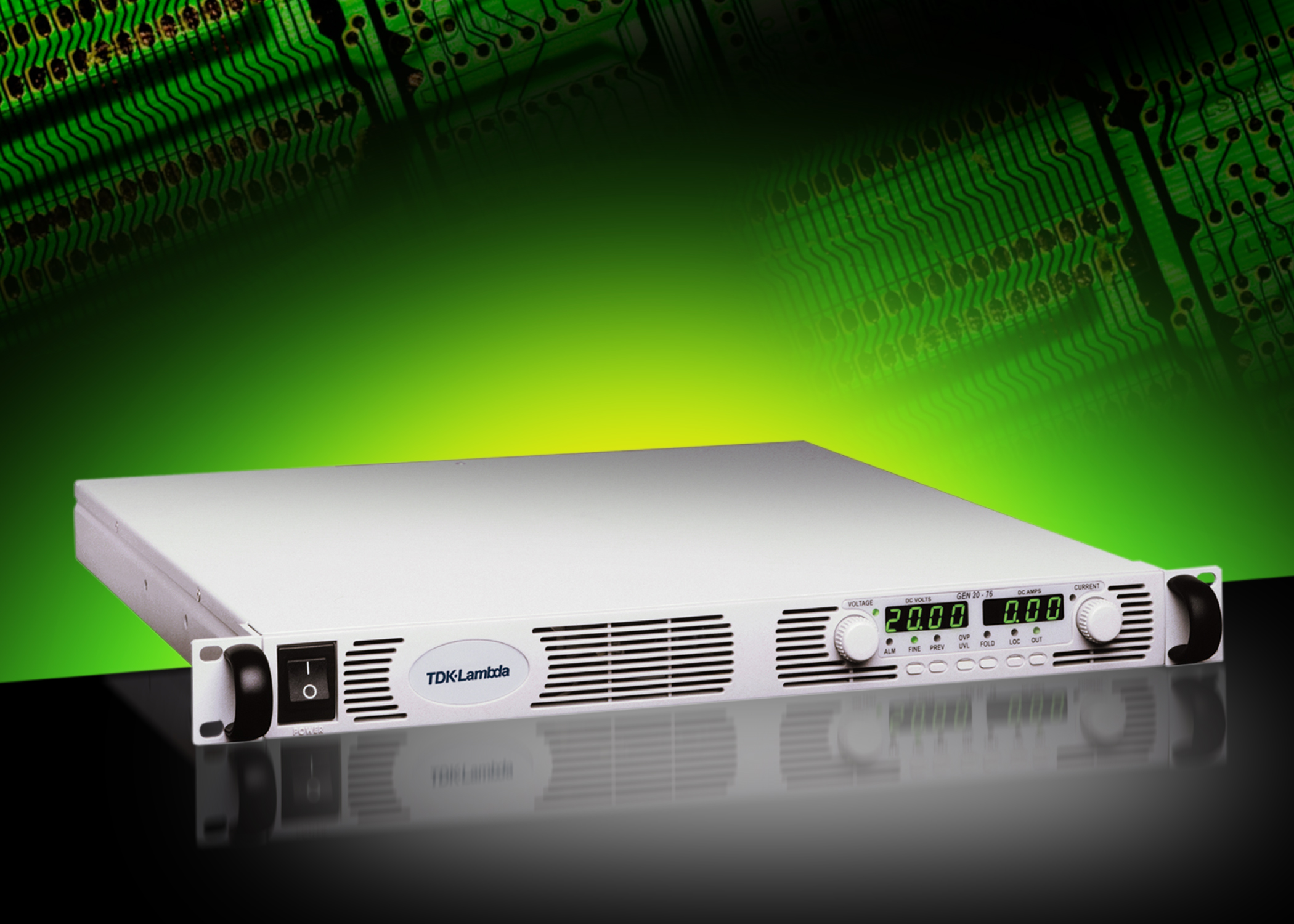

Genesys™ Programmable 1U Rack Mount power supply
1U Rack mount power supplies
Our Genesys™ range of 1U Rack Mount Power supplies are available in 750W, 1500W and 2400W and suit a a broad range of applications including test and measurement, component testing, automotive, burn-in, laboratory, scientific research
Interface: RS232 & RS485, analogue control & monitoring
Optional: LAN, IEEE, Power Sink and Fast Speed
Rackmount or bench model (19” rack)
Output voltages up to 600V
